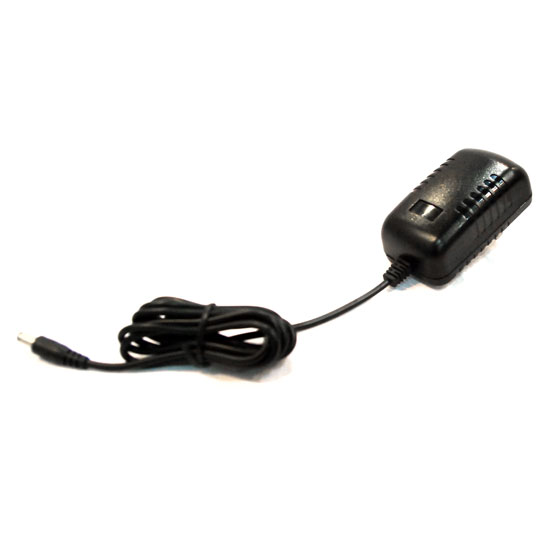

The pictured external power supply features a 12-watt power design. It is lightweight, compact, sleek and portable. It is widely used in areas such as mobile devices, POS systems, portable hard disks, set-top boxes and so on.

• Meets EC level V, MEPS V EUP2011requirements.
• Application: mobile devices, POS systems, portable hard disks and set-top boxes.
• Output voltage: 3V-24V.
• Output current: 0-4A.
• Over voltage protection: latch off.
• Over current protection: latch off.
• Short circuit protection: auto recovery.
• Operating temperature: 0-40 degrees Celsius.
• Withstand voltage: AC 3,000V 1 minute.
• Storage temperature: -20 to 80 degrees Celsius.
• AC input voltage: AC 90-264V.
• AC input voltage range: 47-50 or 60-63Hz.
• Input current: 0.45A (maximum) AC 100/240V.
• Inrush current: less than 60A at AC 240V cold start 25 degrees Celsius.
• 0.25mA.
• Safety standards: EN60950, EN61558, UL60950, UL1310 and GB4943.
• Certificates: CB, GS, CE, UL, CCC, FCC, PSE, PSB, TUB KC and C-TICK.
• EMI emission certificate: conduction and radiation: EN 55022/FF part 15; EN 61000-3-2; voltage changing test: EN 61000-3-3.
• EMS immunity certificate: EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6 and EN 61000-4-11.
