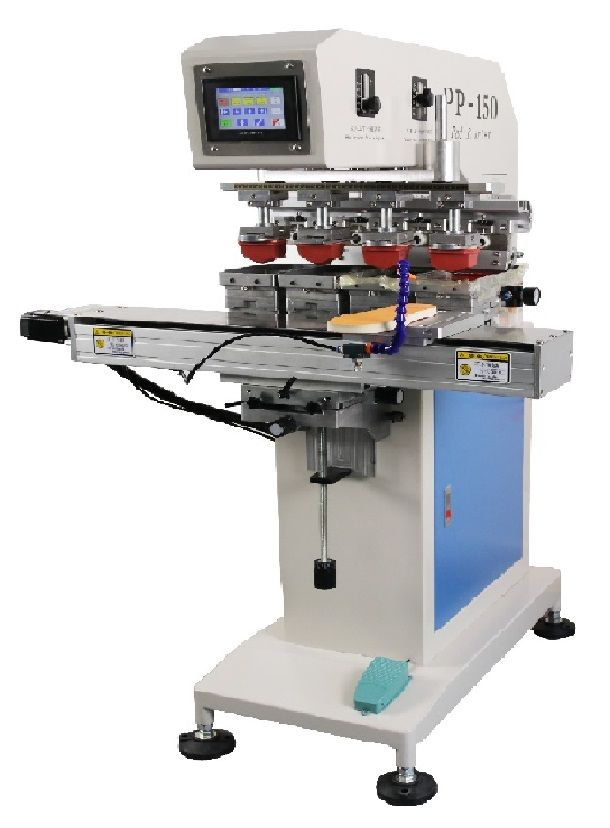

FOUR COLOR PAD PRINTER WITH SERVO SHUTTLE
美元 $4000.00 - 美元 $4800.00
生產所需時間:
21 日
運送方式:
by sea
品牌:
PRINTSO
型號編號:
PS-150S4(SERVO)
尺寸:
1380 x 1000 x 1380mm
重量:
160KG
Application:
Can be applied in various industries with printing requirement such as plastics, household ware, electronics equipment and so on
描述
聯絡供應商
描述
Features:
Color Touch Screen Control
Advanced computerized control system
Servo Motor Driven Shuttle 4 Stations for accurate printing
Multi program keys printing programs
Stations printing sequence selectable
Balanced and Enhanced pad pressing system ensure printing precision
Easy mounting & dismounting doctor blade system (Or ink cup system optional)
Safety protection side door (Optional for European & US model)
Guarded foot paddle
Anodized aluminum parts
Strong diecast body structure
SPECIFCATIONS | ||
Model no | : | PP-150-S4 (Servo) |
No. of color | : | 4 colors |
No. of Shuttle Stations | 4 Stations Servo Motor Driven | |
Ink Cup Diameter | : | Not Available in this model |
Plate size | : | 100 x 150mm |
Max. printing area | : | 95 x 140mm |
Max. speed | : | 12-30 cycles per min. |
Power voltage | : | 100-240V, 50/60Hz |
Power consumption | : | 850W |
Air pressure | : | 0.5-0.65 Mpa/cm² |
Air consumption | : | 6.4 L/min. |
Machine dimension | : | 1380 x 1000 x 1380mm |
Net weight | : | 160KG |
