Frameless Panel Series
美元 $25.00 - 美元 $65.00
生產所需時間:
30 日
運送方式:
by sea
型號編號:
DWM606036
Input Voltage:
AC200-240V, 50/60HZ
Power:
36W
LED Source:
SMD2835
Color Temp:
3000K/4000K/5700K
CRI:
Ra>80
Power Factor:
>0.9
IP Rate:
IP40
Optional:
0-10V dimming, Dali dimming, or traic dimming
MOQ:
300PCS
Certificate:
CE, RoHS, CB,SAA
Warranty Time:
5 Years
Payment Terms:
T/T
Supply Ability:
7000pcs per month
描述
聯絡供應商
描述

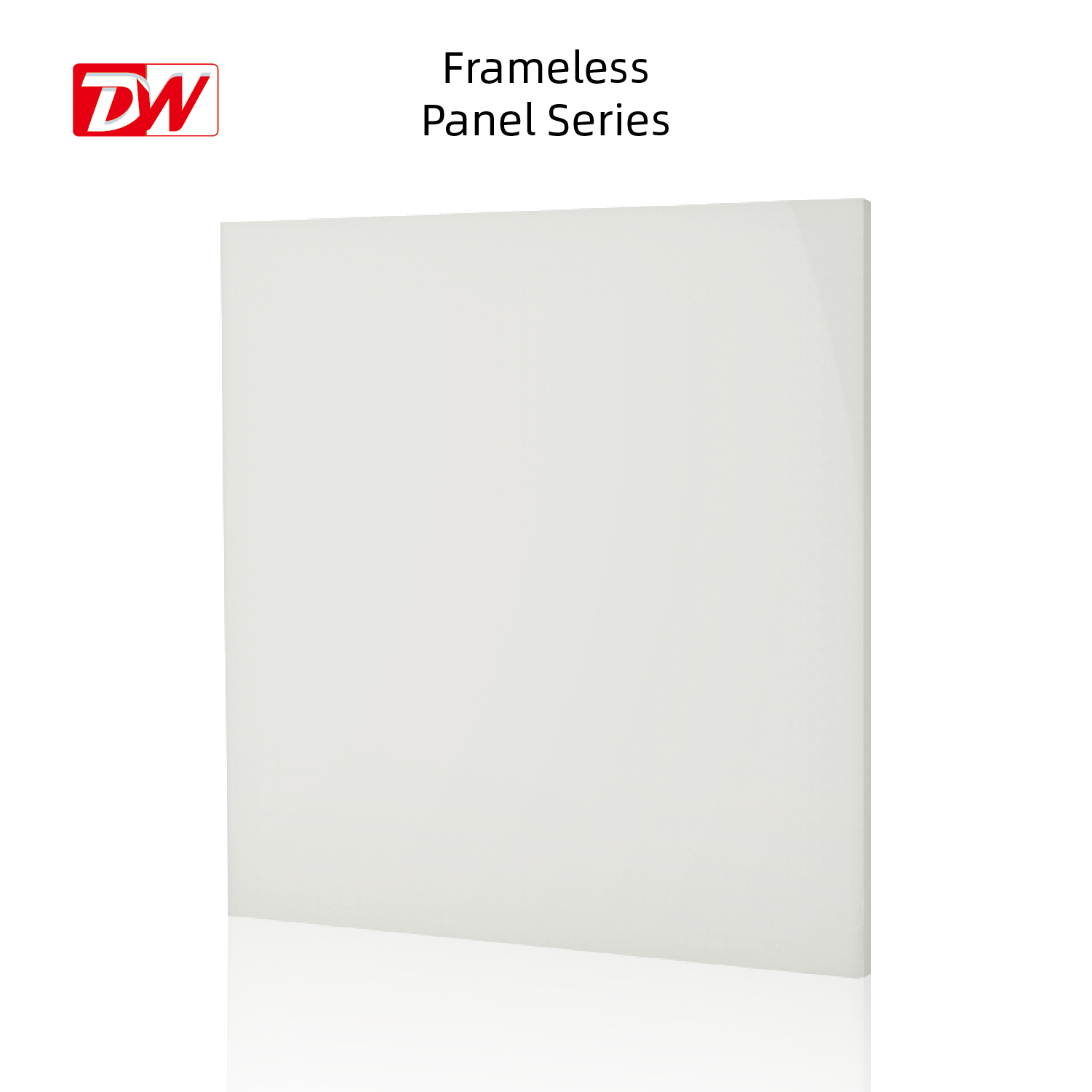

Frameless Panel Series
No mental frame, Dolight frameless panel is just like a clear Crystal. Thick PMMA diffuser and good quality PMMA LGP shows, no worry about yellowing. It emits soft and even light which is comfortable for human’s eyes and offer innovative features. No only good for illumination, frameless panel is outstanding in decoration by connecting into different shapes.
◈ FEATURES
Frameless panel, there is no visible frame when you light it up;

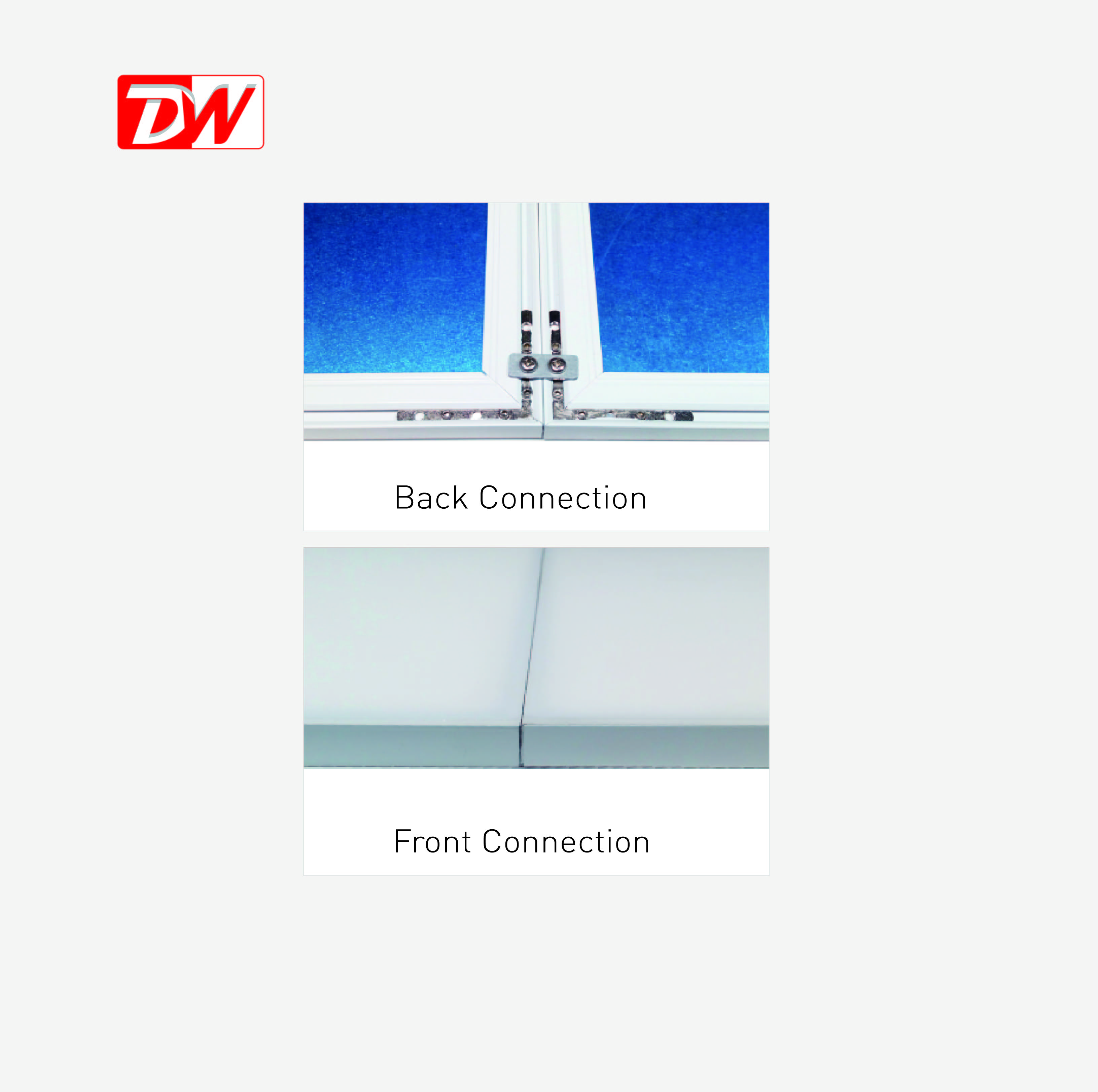

Be able to connect one by one into different shapes;

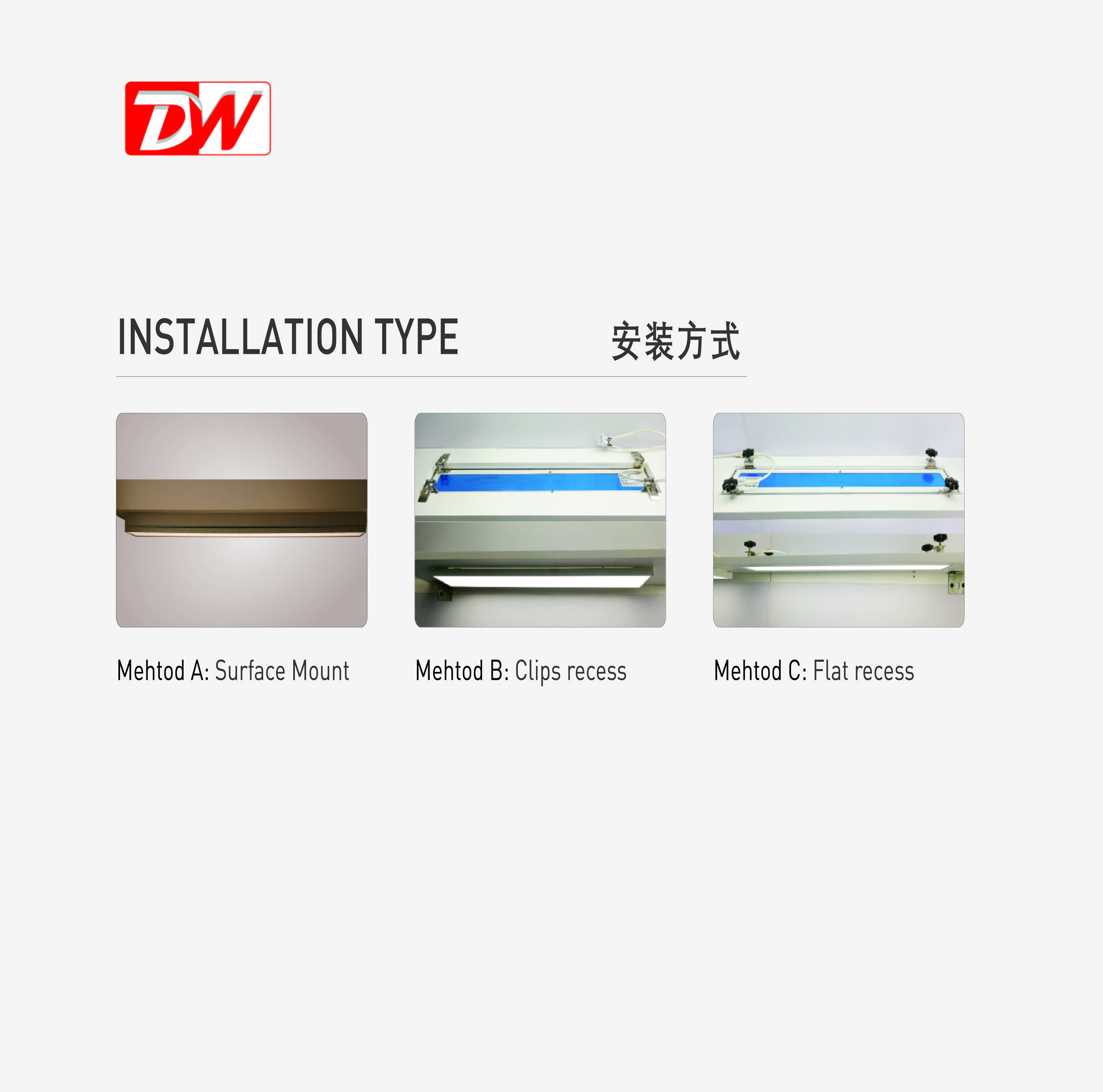

Diversified installation way;

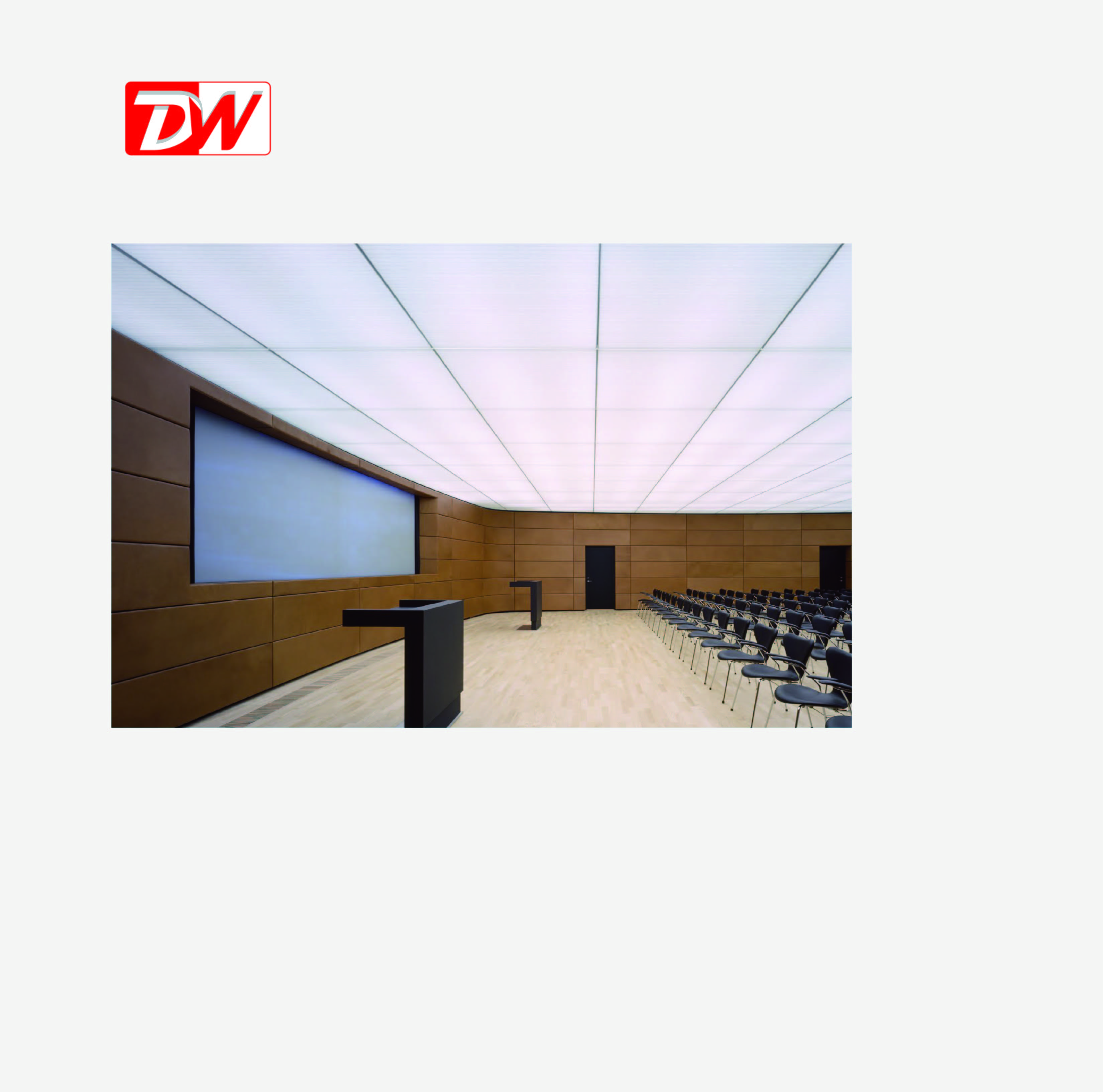

It is ideal products to build the panel ceiling and panel wall;
◈ ADVANTAGE
TUV Listed CE, CB, and RoHS, SAA,ISO9001;
Be able to connect one by one into different shapes ;
It is ideal products to build the panel ceiling and panel wall;
Even light distribution, soft & smooth light, no glare.
◈ SPECIFICATION
Frameless Panel Light | ||
Photometric Parameters | ||
NO. | project | parameter |
1 | LED | SMD4014 |
2 | Luminous Efficiency | >90 Lm/W |
3 | CCT | 3000K-5700K (warm white, natural white, cool white) |
4 | CRI | ≥80 |
5 | Beam Angle | 120° |
6 | LED Lifespan | ≥50000 Hours |
Electrical Parameters | ||
7 | Driver input voltage | AC220-240V /50～60Hz |
8 | OutputVoltage | DC30-40V |
9 | Power Supply Efficiency | ≥88% |
10 | Power Factor | ≥0.9 |
11 | Protection Class | Class II |
12 | Rating IP | IP40 |
13 | Material | Aluminum + PMMA |
14 | Frame Finishing | White |
15 | Installation | Recessed/Pendant |
16 | Working Temperature | -20～+45℃ |
17 | Storing Temperature | -40～+60℃ |
18 | Working Humidity | 15%~90%RH |
◈ SIZE
Efficiency | Model No. | Wattage | Luminous flux | CRI | LED | Dimension |
95LM/W | DWM303018 | 18W | 1440lm | 80Ra | SMD4014 | 295x295x16.7mm |
DWM606036 | 36W | 3450lm | 80Ra | SMD4014 | 595x595x16.7mm | |
DWM626236 | 36W | 3450lm | 80Ra | SMD4014 | 620x620x16.7mm | |
DWM3012036 | 36W | 3450lm | 80Ra | SMD4014 | 295x1195x16.7mm |
◈ APPLICATION
♦ Showrooms
♦ Boardrooms, offices, corridors
♦ Retail outlets
♦ Hospitals
♦ Hotels, motels/hospital
