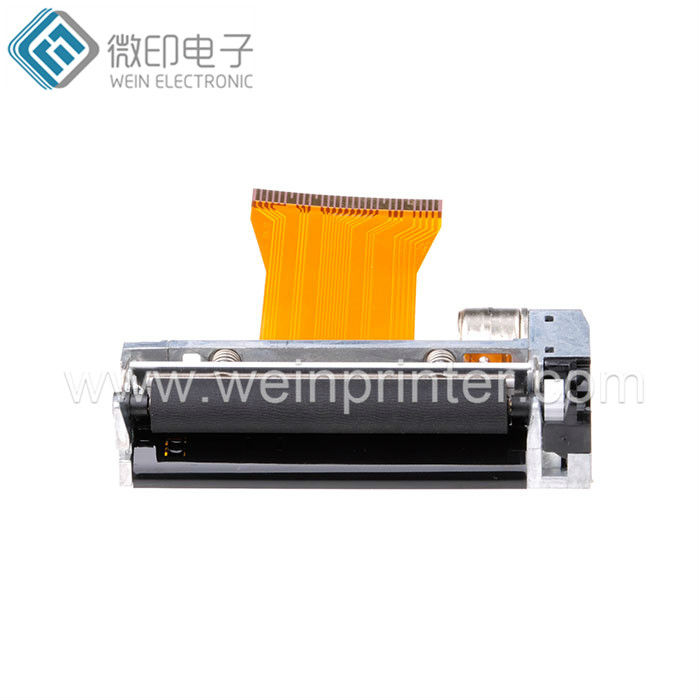

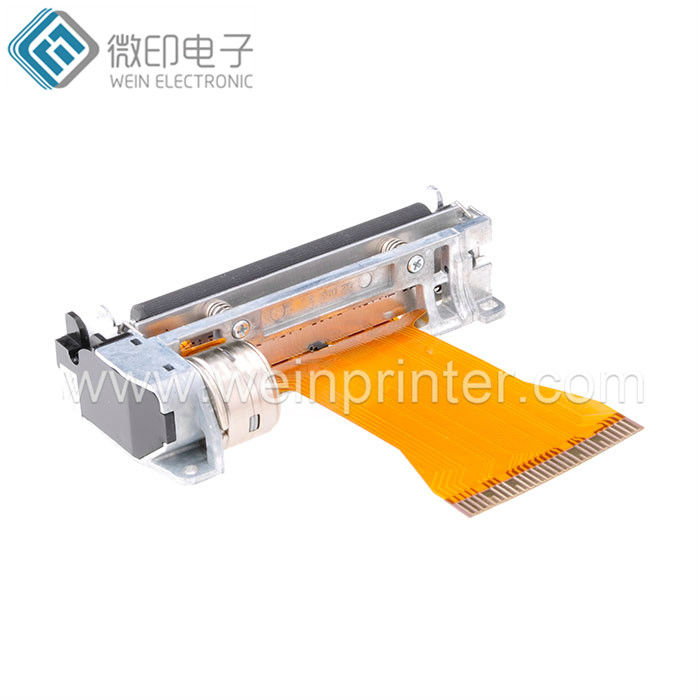

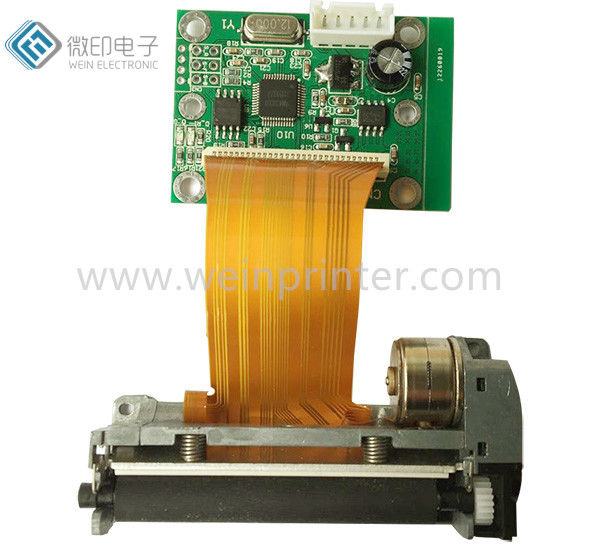

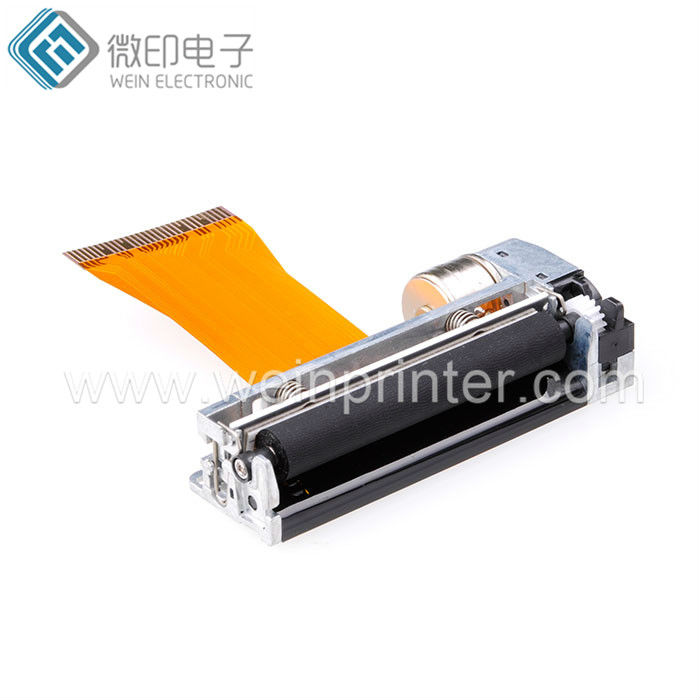

Fujitsu FTP628MCL101 compatibe Thermal Printer Mechanism
分享此頁面
生產所需時間:
1 日
產品型號:
TMP201
品牌名稱:
Wein
顏色:
Original
尺寸:
67.3mm (width) x 31.5mm (depth) x 18.5mm (height)
港口:
Xiamen
付款方式:
T/T
最低訂購數量:
100 piece(s)
用途:
紙品印刷機
描述
聯絡供應商
描述
Character:

1. Low voltage supply
The voltage used to drive the thermal printer head is equal to the logic voltage, or is driven by a 5 V single power line, the range of operating voltage is 4.2V-8.5V, so four to six NI-Cd batteries or Ni-MH batteries can also be used. Two li-ion batteries can be used.
2. Low volume Compact and light
The mechanism is compact and light, dimensions: 67.3mm (width) * 31.5mm (depth) * 18.5mm (height).
3. Printing with High resolution
A high-density printer head of 8 dots/mm makes the printing clear and precise.
4. High speed printing
According to driving power and sensitivity of thermal paper, setting different printing speeds are required. Max printing speed is 80 mm/ sec.
5. Easy paper loading

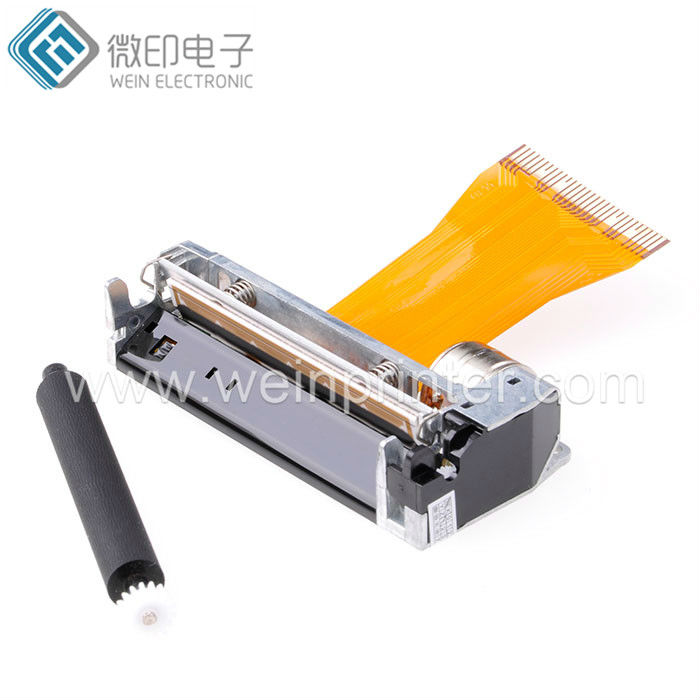

Detachable rubber roller structure makes the paper loading easier.
6. Low noise
Thermal line dot printing is used to guarantee low-noise printing.


Specifications:

Printing:
Method Thermal
Number of Dots:  384 dots/line
Resolution :  8 dots/mm (203dpi)
Printing Speed: 80mm/s (max)
Printing Width: 48mm
Paper Width: 58mm
Paper Thickness: 60~100μm
Paper Loading: Easy paper loading
Printer head Life:  More than 50km
Pulse activation life:  110M pulse
Head Temperature Detection:  Thermister
Paper End /Head Position Detection: Photo interrupter
Operating Temperature:  0°C~ 50°C
Storage Temperature:  - 20°C~ 60°C
Operating Humidity:  20~ 85% RH
Storage Humidity:  10~ 90% RH
Weight: 45g
Dimension(W*D*H):  67.3×31.5×18.5mm
