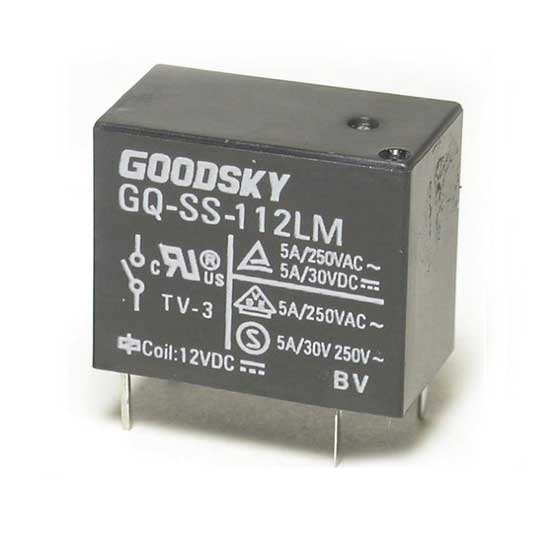

This GQ relay comes with a mini size with high sensitivity. You can use this relay in home appliances. A special selected insulation material allows this relay to work under high temperature.

• Weight 5g.
• Contact form construction: 1a (SPST).
• High sensitive type (200mW), high contact reliability (sealed type).
• Surge strength: 10,000V.
• Provides better chemical solution performance.
• Halogen-free relay available.
• Contact rating: 5A/250VAC, 5A/30VDC, 10A 250VAC, 12a 120VAC, 10A 30VDC, TV-5 120VAC.
• Coil voltage: DC 3, 5, 6, 9, 12, 24, 48.
• Power consumption: 0.2W.
• Dielectric strength (50/60 Hz for 1 minute) : (between coil and contact) AC 4,000V/(between contact) AC 1,000V.
• Safety standards: UL, C-UL, TÜV, VDE.
• Mounting method: PC board terminal.
