Goniophotometer
生產所需時間:
30 日
產品型號:
CDM
品牌名稱:
Rainbow-Light
測量範圍:
380-780 / 300-1100 nm
描述
聯絡供應商
描述
The price is for reference only, the details of price please contact us. Thank you!

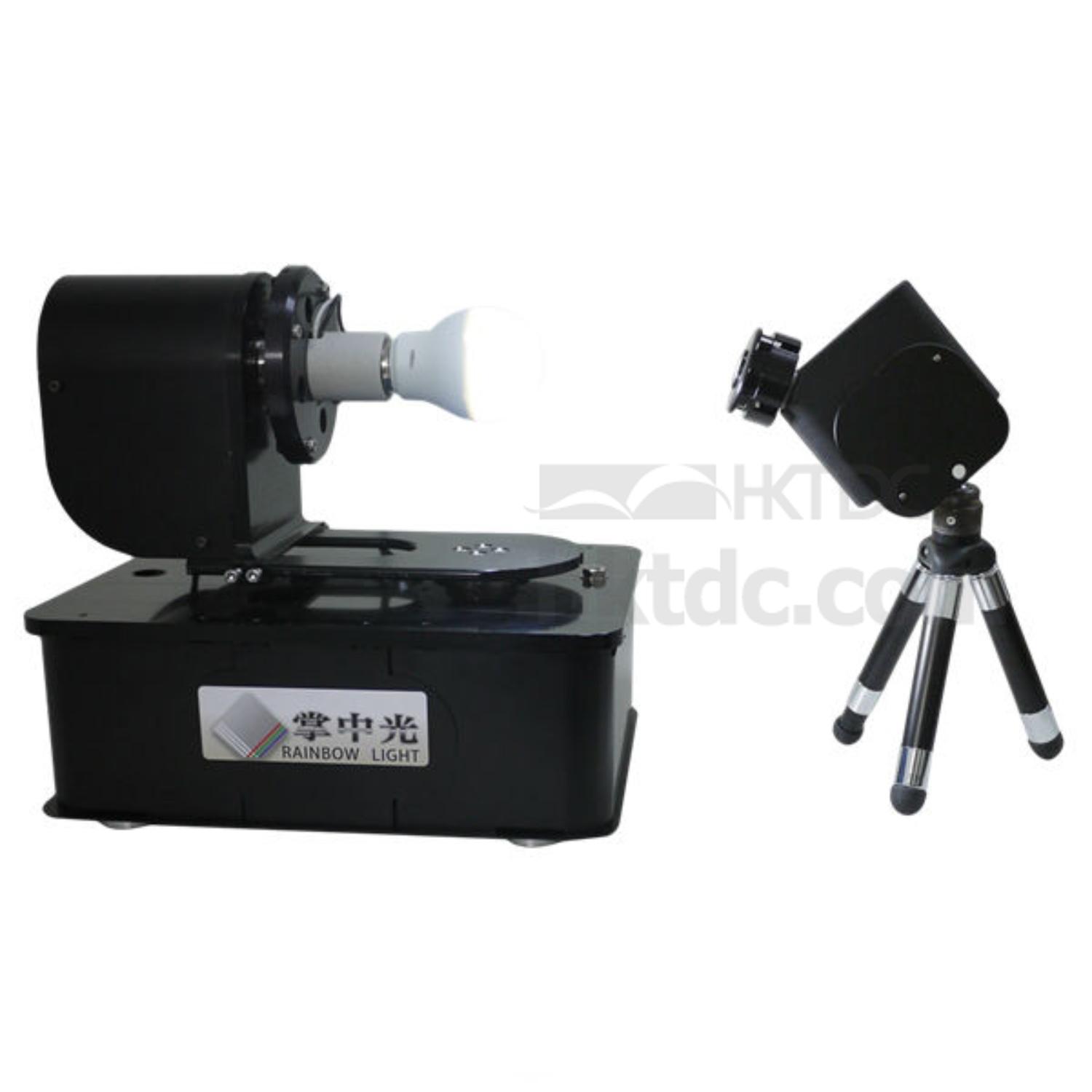

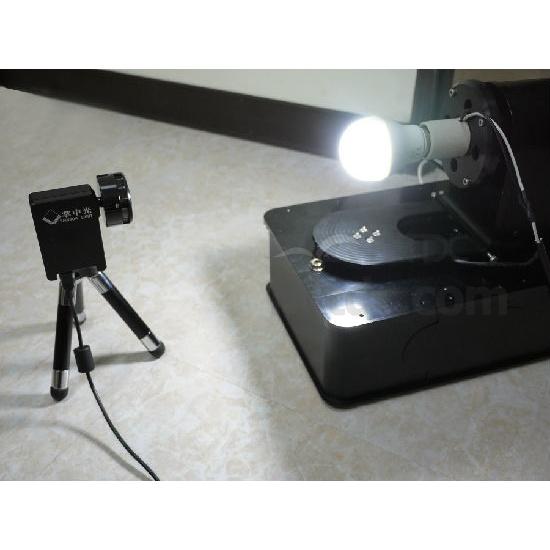

Rainbow-Light Goniophotometer
Rainbow-Light Goniophotometer measures total luminous flux, luminous intensity distribution, spatial color distribution…etc. according to the diagrams and data through rotatable instrument (≤ ± 165˚) and rotatable lamp stand (0˚ - 360˚).
Features
Spectrometer specification (High Level)
Rainbow-Light Goniophotometer
Rainbow-Light Goniophotometer measures total luminous flux, luminous intensity distribution, spatial color distribution…etc. according to the diagrams and data through rotatable instrument (≤ ± 165˚) and rotatable lamp stand (0˚ - 360˚).
Features
- 20cm-∞ spatial photometric distribution
- Luminous intensity distribution
- Total luminous flux
- Display of lux, CCT, color, CRI, and so on in a 3-dimension way
- Display of lux, CCT, color, CRI, and so on of each testing point
- Providing Rainbow Light Goniophotometer software and customized software
- Providing vertical profile
- Providing Cartesian Coordinates System
- Display of illuminance at a distance comparison
- Center illuminance
- Hue determination and the relationship between DUV and angle of view
- IES files and SDK available
- Max hue determination and the position
- Average color coordinates (Xa, Ya)
- Beam angle
- CIE Glare Index (CGI)
- Rainbow Light Luminous Decay software, monitoring luminous decay and calculating the curve and providing time needed for stable light output, junction temperature, and LED lifetime, etc..
Spectrometer specification (High Level)
- Model：CDM-01
- Resolution：0.8 – 1.5 nm FWHM
- Wavelength Range：300 – 1100 or 380 – 780 nm
- Signal-to-noise Range：0.1 %
- Spectral deviation：0.04 %
- Integration Time：1 ms – 24 s
- Input Fiber Connector：SMA905
- Interface：USB, GPIO
- Power：Default USB Power
- Dimensions：73(W) x 85(D) x 30(H) mm
- Weight：292 g
- PC Operating System：Windows XP / Windows 7 / Vista
- Design / Made in Taiwan
- Model：CDM-02
- Resolution：4.2 – 5 nm FWHM
- Wavelength Range：380 – 780 nm
- Signal-to-noise Range：0.3 %
- Spectral deviation：0.12 %
- Integration Time：1 ms – 24 s
- Input Fiber Connector：SMA905
- Interface：USB, GPIO
- Power：Default USB Power
- Dimensions：75(W) x 51(D) x 20(H) mm
- Weight：170 g
- PC Operating System：Windows XP / Windows 7 / Vista
- Design / Made in Taiwan
