HC-49S SMD MHz Crystal 3.2MHz-64MHz Xtal

品牌:

JGHC晶光华

是否可訂造:

可以

型號編號:

9AT

尺寸:

11.5x4.8x3.8mm

Nominal Frequency:

3.2-64MHz

Load Capacitance:

20pF or specif

Frequency Difference:

±20ppm or specif

描述

聯絡供應商

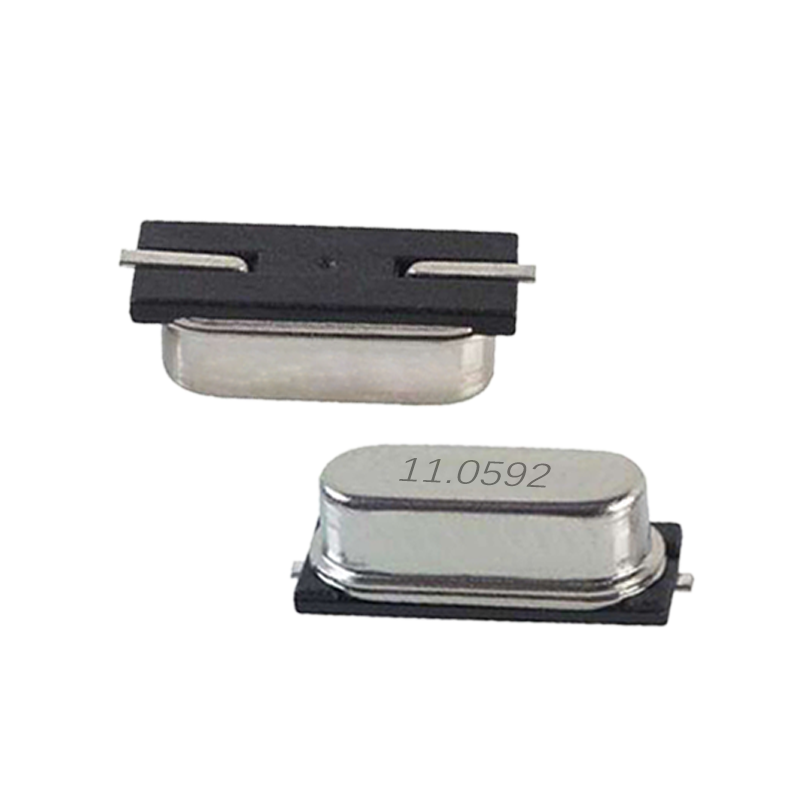

Metal Can Type DIP Crystal HC-49S SMD 9AT Series

Features

External dimensions: 11.4 x 4.8 x 3.8mm.

Frequency range: 3.2MHz~64MHz.

Surface mount type crystal units.

A great number of standard frequencies.

High frequency pullability and low equivalent series resistance.

Highly mass production capability.

Applications: PC, STB, LCDM and Cable Modem.

Crystals specifications:

ITEMS/TYPE	9AT
Frequency Range	3.2~64 MHz
Frequency Tolerance (at 25 ℃)	± 10 ppm, ± 20 ppm, or specify
Operating Temperature Range	~40~+85℃, or specify
Shunt Capacitance (C0)	7pF Max.
Drive Level	1~ 500μW (50 μW typical)
Load Capacitance	20pF, or specify
Aging (at 25℃ )	± 5 ppm / year Max.
Storage Temperature Range	-40~+125℃
