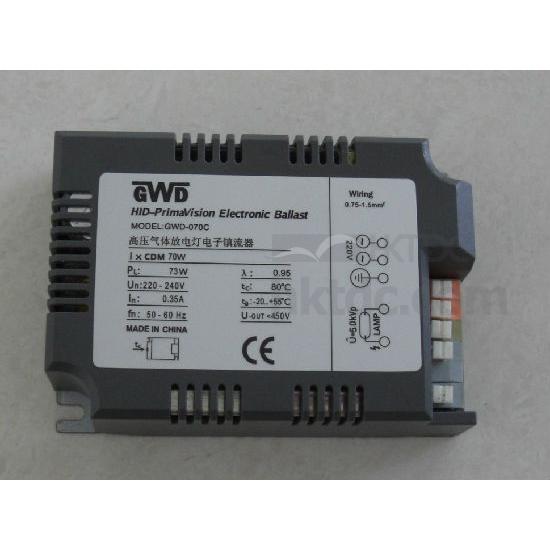

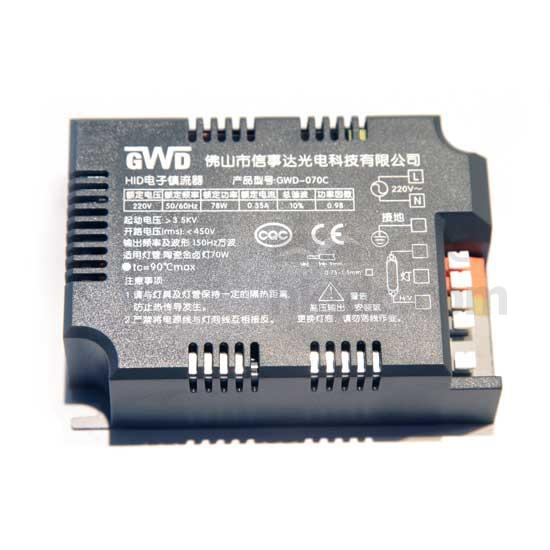

This HID electronic ballast can be conveniently applied with 70W ceramic metal halogen tubes. It features a 150Hz output frequency and a 0.98 power factor for high performance. The energy-saving HID electronic ballast is compliant with the CQC and CE standards.

Features:

• Flicker free design.
• Can apply with 70W ceramic metal halogen tubes.
• Engineered for high performance.
• Constant power output, independent of line voltage fluctuations.
• Automatic switch-off in case of temperature rise.
• Conforms with international regulations regarding safety and operation, electromagnetic compatibility to interference.
• Compliant with the CQC and CE standards.

Technical specifications:

• Rated voltage: 220V.
• Rated frequency: 50/60Hz.
• Rated wattage: 78W.
• Rated current: 0.35A.
• THD: 10%.
• Power factor: 0.98.
• Start voltage: >3.5kV.
• Open circuit voltage (RMS): <450V.
• Output frequency: 150Hz.
• Square wave.
• Tc=90°max.
• Please keep a distance from the tube and the fixture to prevent heat conduction.
• Please link the cable and the bulb wire correctly.
• Operating data: GWD-035C, GWD-070C.
• Lamp power: 35W 70W.
• Output watts: 39W 73W.
• Line current: 0.17 A@230V, 0.35A@230V.
• Frequency: 50/60Hz, 50/60Hz.
• Power Factor: ≥0.95, ≥0.97.
• T-ambient: -20--+55℃, -20--+55℃.
• T-case max.: -20--+80℃, -20--+80℃.
• Ignition voltage: 3.5-4.5KV, 3.5 - 4.5KV.
• Size: 100 x 70 x 30, 100 x 70 x 30(mm).
