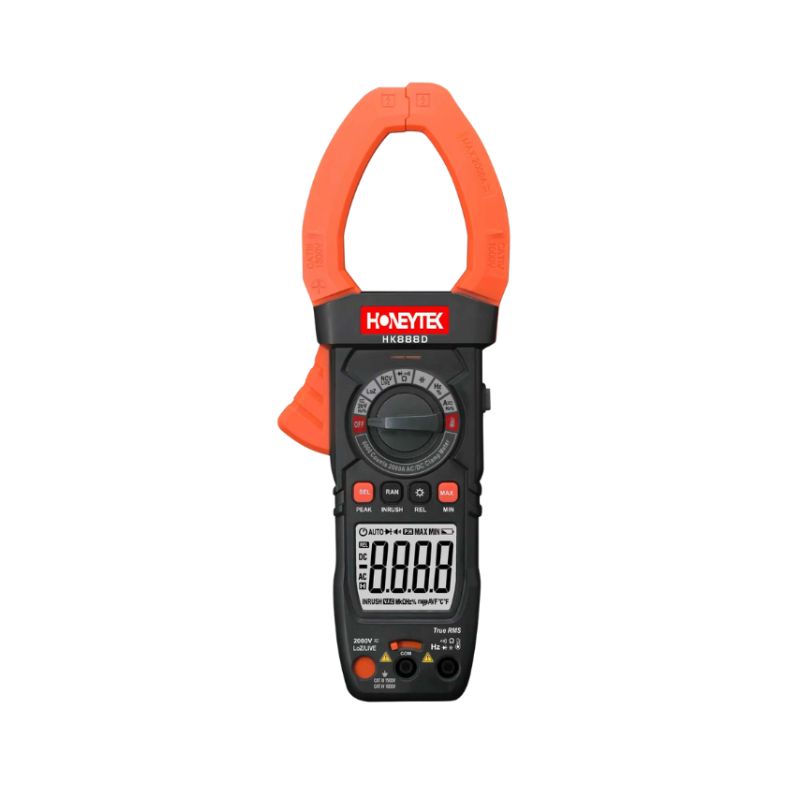

    Honeytek HK888D 6000 Count TRMS 2000A AC/DC Solar PV Clamp Meter



    Product Description:

    The Honeytek HK888D is a specialized and robust clamp meter designed specifically for the unique demands of photovoltaic (PV) installation and maintenance. With its high-voltage 2000V measurement range and 2000A AC/DC capability, the HK888D provides solar professionals with the safety and precision required for working on high-voltage solar arrays and inverters. Its advanced features, including a double-opening clamp and dedicated PV test leads, make it the ultimate tool for the solar industry.

    Highlights:

    • Solar PV Specialization: Purpose-built for photovoltaic systems with a high-voltage 2000V range and included PV test leads with plugs.

    • High AC/DC Current Measurement: Accurately measures current up to 2000A for both AC and DC systems.

    • CAT IV 1000V Safety Rating: Ensures top-of-the-line safety for work in high-voltage DC environments up to 2000V.

    • True RMS with 6000 Count Display: Guarantees accurate and precise readings on all waveforms.

    • Advanced Features: Includes Inrush Current, LoZ AC/DC, Temperature, and Peak measurement.

    • Ergonomic Design: Features a double-opening clamp for easier access and an inbuilt spotlight for visibility in any conditions.

    Technical Specifications:

    SpecificationRangeAccuracy
    DC Voltage600mV/6/60/600V±(0.5%+3d)
     2000V±(1.0%+5d)
    AC Voltage6/60/600V±(1.0%+5d)
     2000V±(1%+10d)
    DC Current600/2000A±(2.5%+5d)
    AC Current600A±(2.5%+10d)
     2000A±(2.5%+5d)
    Resistance6k/60k/600k/6MΩ±(0.8%+2d)
     60MΩ±(2.5%+5d)
    Capacitance10nF~100mF±(4.0%+25d)
    Frequency10/100/1k/10k/100k/1M/10MHz±(0.5%+2d)
    Duty Cycle0.1-99.9%±(2.0%+5d)
    Temperature-40°C~1000°C / -40°F~1832°F±(2.0%+3d)
    Jaw SizeΦ60.5mm
    Safety RatingCAT III 1500V / CAT IV 1000V
    Dimensions285 x 105 x 44 mm
    Weight650g
