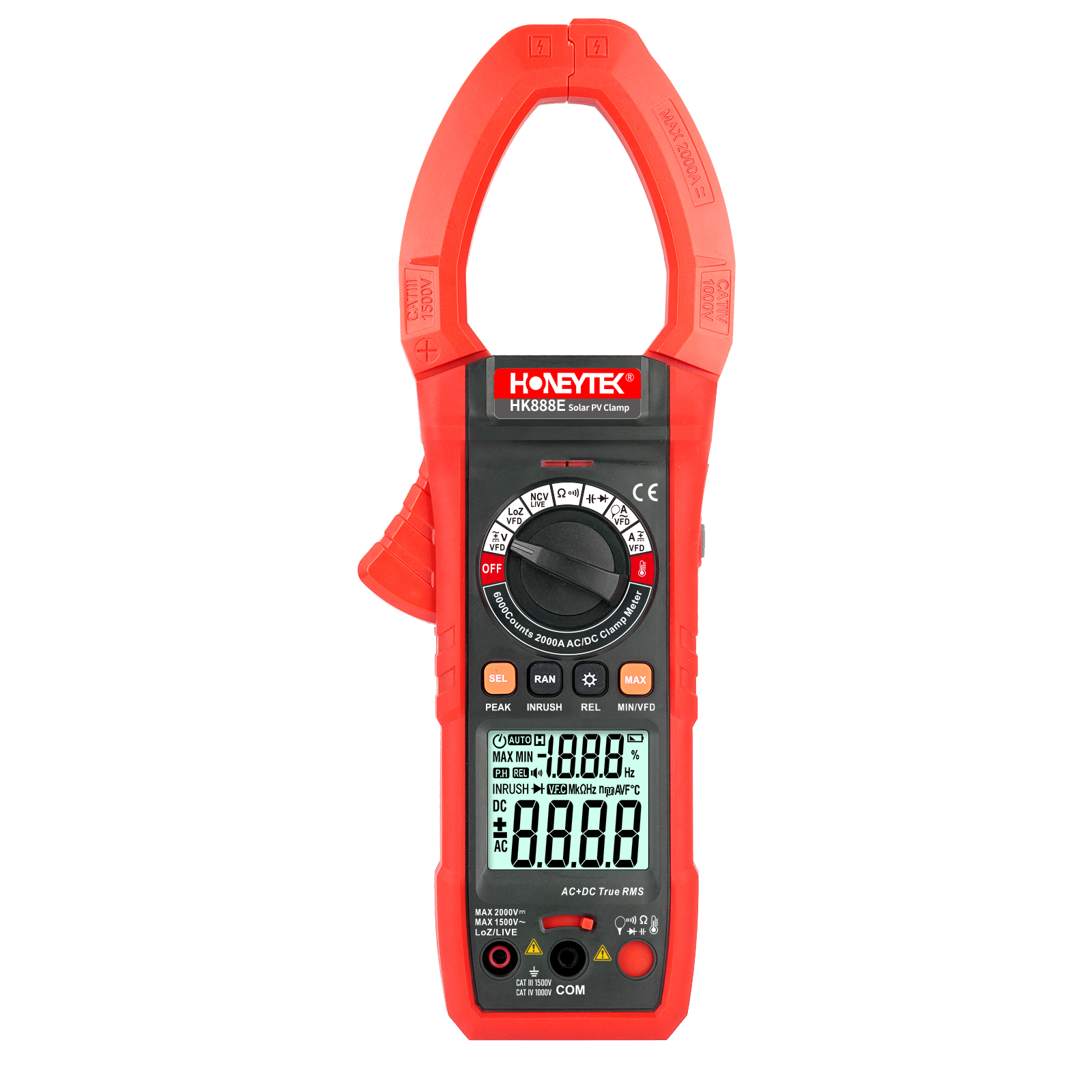

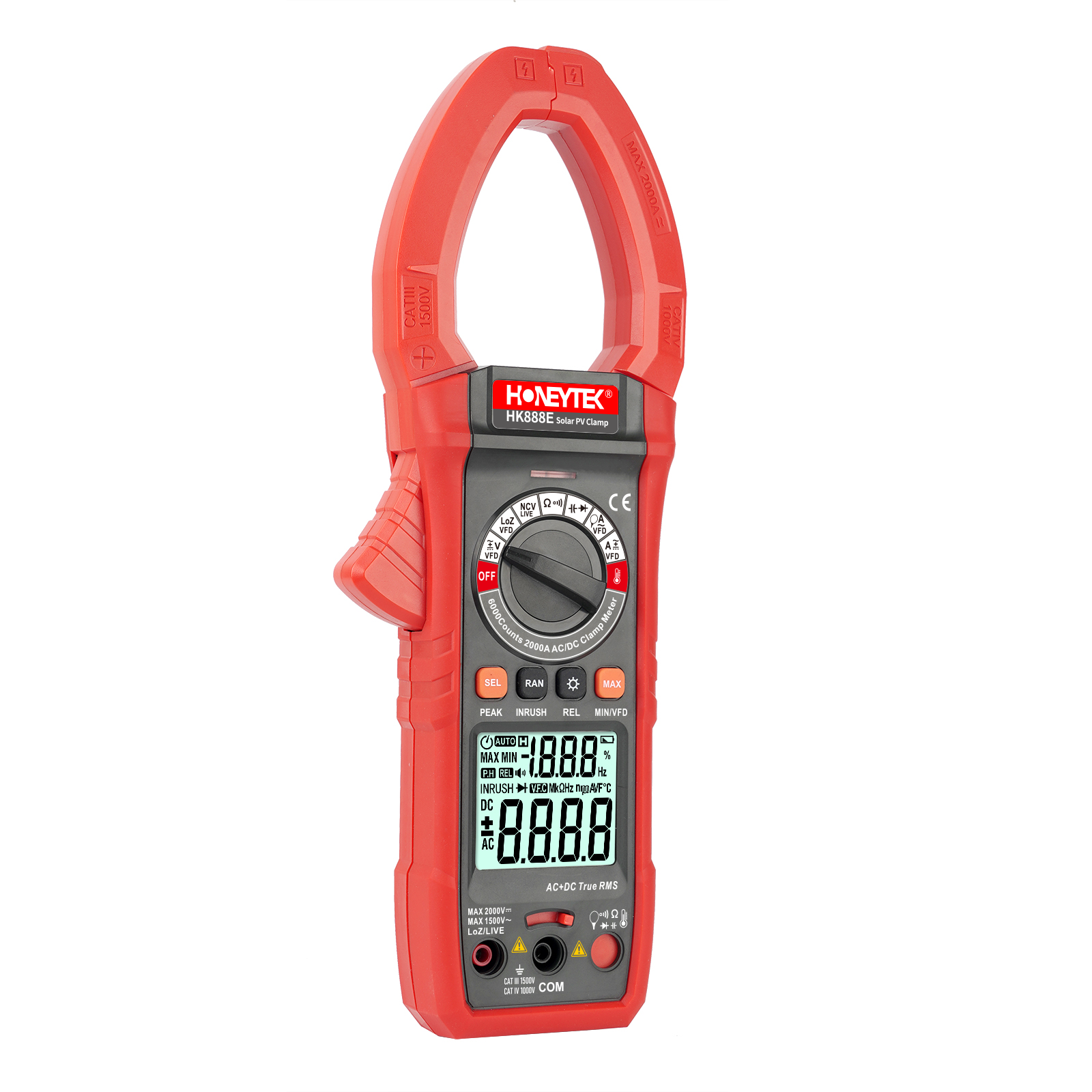

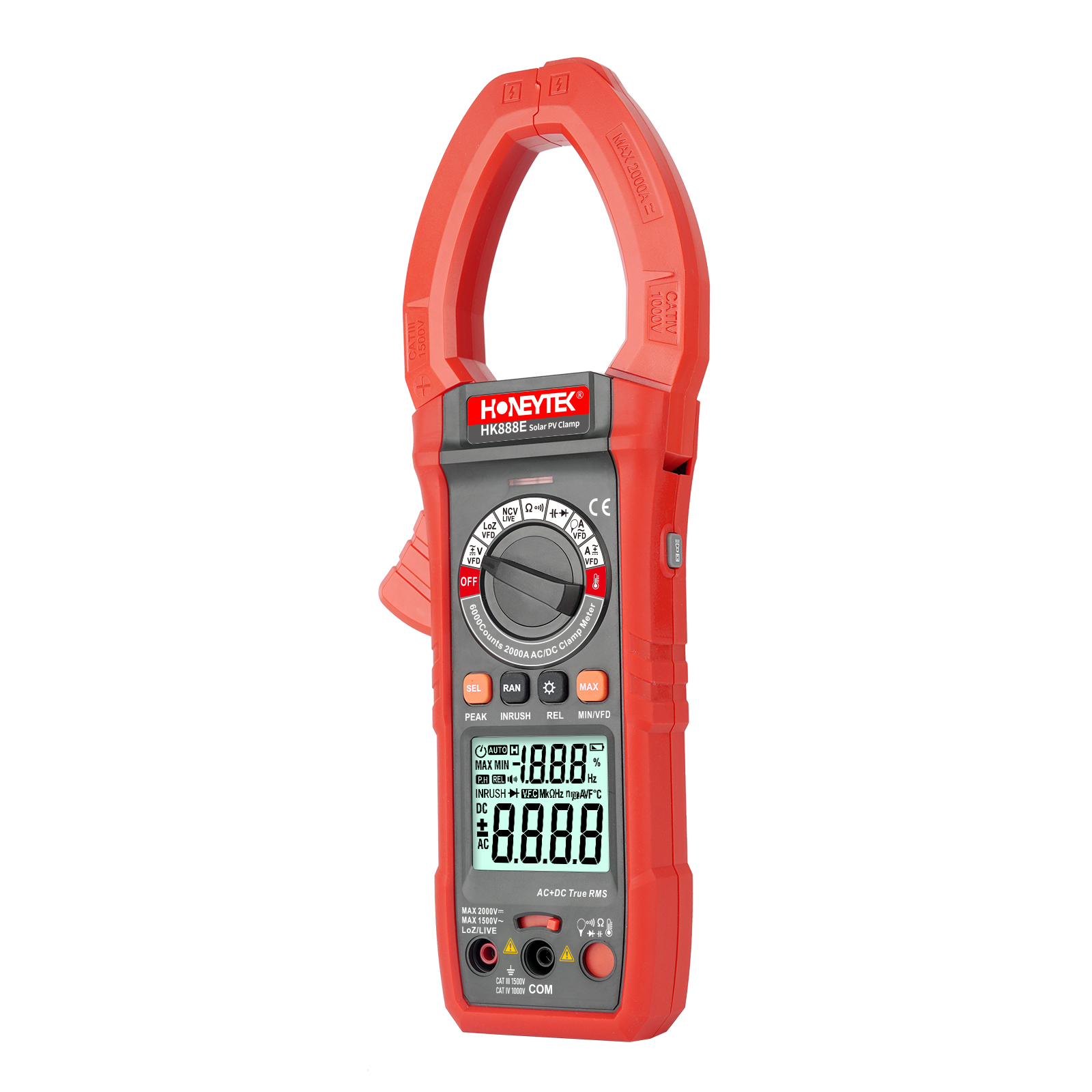

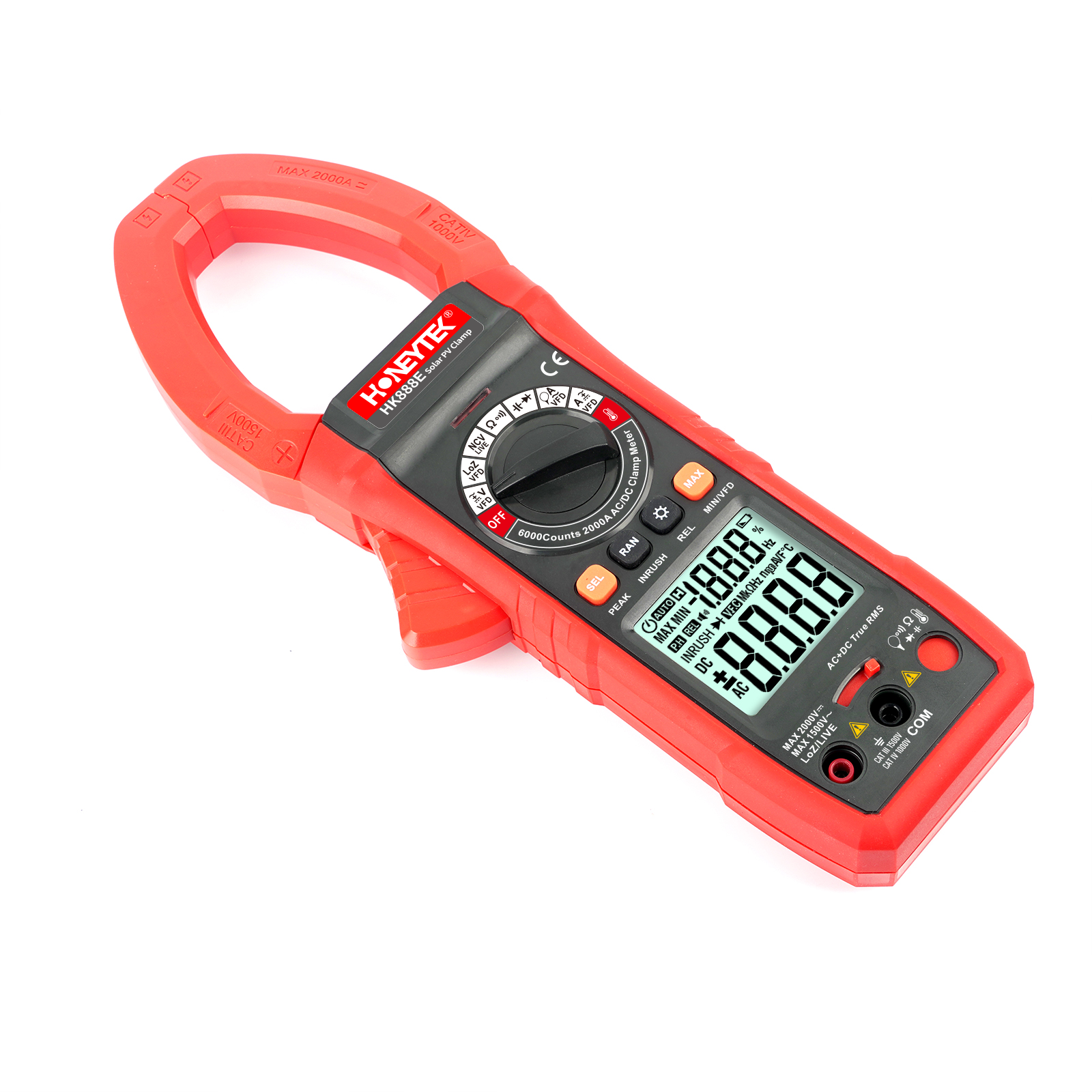

HK888E 2000A 2000V AC/DC Solar PV Clamp Meter
生產所需時間:
30 日
描述
聯絡供應商
描述
The HK888E Solar PV Clamp Meter is a high-performance, multi-functional testing instrument specifically designed for photovoltaic systems and high-voltage electrical environments.
With measurement capabilities up to 2000A current and 2000V DC voltage, it is ideal for engineers, installers, and maintenance professionals working in solar power systems, industrial electrical systems, and high-energy applications.
Equipped with True RMS measurement, VFD compatibility, LoZ mode, and non-contact voltage detection (NCV), the HK888E ensures accurate readings even in complex and noisy environments.
Its large jaw opening (Ø60.5mm), wide measurement range, and intelligent functions such as inrush current testing, peak hold, and MAX/MIN recording make it a reliable tool for both troubleshooting and system diagnostics.
Designed with safety and usability in mind, the meter complies with CAT III 1500V / CAT IV 1000V standards, making it suitable for demanding field applications.
Technical Specifications
| Parameter | Range / Specification | Accuracy / Details |
|---|---|---|
| Model | HK888E | 2000A / 2000V AC/DC Solar PV Clamp Meter |
| Display Counts | 6000 Counts | — |
| Max Jaw Open Capacity | Ø60.5mm | — |
| DC Voltage | 600mV | ±(0.5%+3) |
| DC Voltage | 6.000V / 60.00V / 600.0V | ±(0.5%+5) |
| DC Voltage | 2000V | ±(2.0%+5) |
| AC Voltage | 6.000V / 60.00V / 600.0V | ±(1.0%+5) |
| AC Voltage | 1500V | ±(2.0%+8) |
| AC+DC Voltage | 6.000V / 60.00V / 600.0V | ±(1.5%+5) |
| AC+DC Voltage | 1500V | ±(2.5%+8) |
| DC Current | 60.0A / 600.0A | ±(2.0%+5) |
| DC Current | 2000A | ±(2.5%+10) |
| AC Current | 60.0A / 600.0A | ±(2.0%+5) |
| AC Current | 2000A | ±(2.5%+10) |
| AC+DC Current | 60.0A / 600.0A / 2000A | ±(3.0%+8) |
| AC Current (Flex Clamp Sensor) | 600.0A / 3000A | ±(2.0%+5) |
| Resistance | 600.0Ω | ±(1.0%+3) |
| Resistance | 6.000kΩ / 60.00kΩ / 600.0kΩ | ±(1.0%+2) |
| Resistance | 6.000MΩ / 60.00MΩ | ±(2.0%+8) |
| Capacitance | 6.000nF / 60.00nF | ±(4.0%+5) |
| Capacitance | 600.0nF / 6.000μF / 60.00μF / 600.0μF | ±(4.0%+5) |
| Capacitance | 6.000mF / 60.00mF / 100mF | ±(10.0%+10) |
| Frequency | 8Hz – 2000Hz | ±(0.1%+3) |
| Temperature (°C) | -40°C to 0°C | ±(1.0%+4) |
| Temperature (°C) | 0°C to 400°C | ±(2.0%+3) |
| Temperature (°C) | 400°C to 1300°C | ±(3.0%+3) |
| Temperature (°F) | -40°F to 50°F | ±(1.0%+5) |
| Temperature (°F) | 50°F to 750°F | ±(2.0%+5) |
| Temperature (°F) | 750°F to 2300°F | ±(3.0%+5) |
| True RMS | Yes | — |
| Range Select | Auto / Manual | — |
| LoZ AC/DC | 2000V | — |
| VFD | ACV / ACA | — |
| NCV Detection | >30V | — |
| Live Wire Recognition | >80V | — |
| Diode Test | Yes | — |
| Continuity Buzzer | <50Ω | Yes |
| Data Hold | Yes | — |
| Relative Measurement | Yes | — |
| MAX/MIN | Yes | — |
| Inrush Current Test | Yes | — |
| Peak Hold | Yes | — |
| Over Range Indication | Yes | — |
| Inbuilt Spotlight | Yes | — |
| LCD Backlight | Yes | — |
| Double-Colored Housing | Yes | — |
| Auto Power Off | Yes | — |
| Low Battery Indication | Yes | — |
| Unit Icon Display | Yes | — |
| Input Impedance | 10MΩ | — |
| Product Size | 285 × 110 × 45 mm | — |
| LCD Size | 46 × 39 mm | — |
| Product Weight | 610g | — |
| Power Supply | 1.5V (AAA) × 3 | — |
| Safety Category | CAT III 1500V / CAT IV 1000V | — |

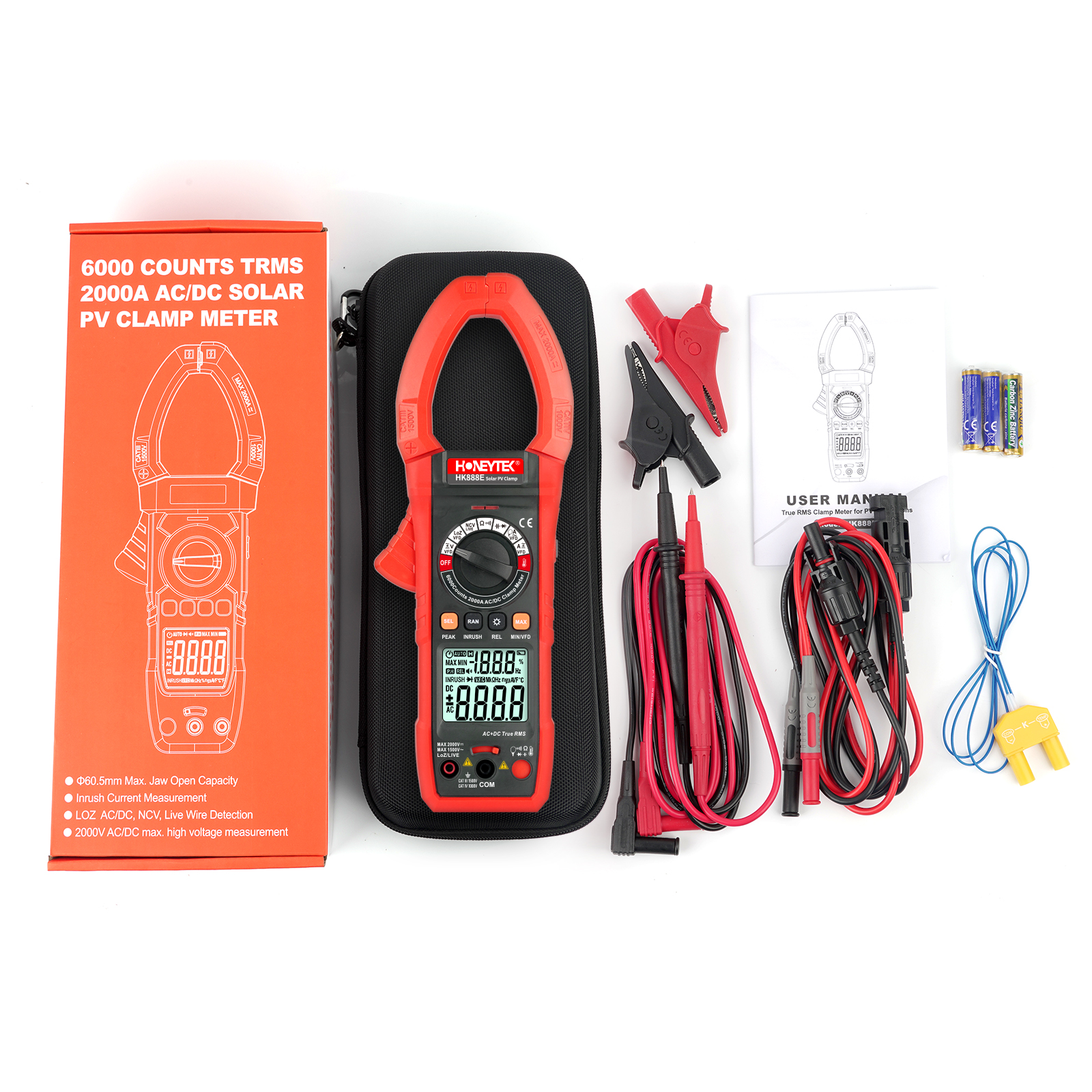

| Standard Accessories | Test Leads, Hard Carrying Case, Temp. Probe, Manual | — |
| Optional Accessories | MC4 PV Plug, Crocodile Clips, Flex Current Clamp | — |
