HP-R1 77Ghz millimeter wave radar obstacle avoidance warning system
美元 $129.31 - 美元 $139.31

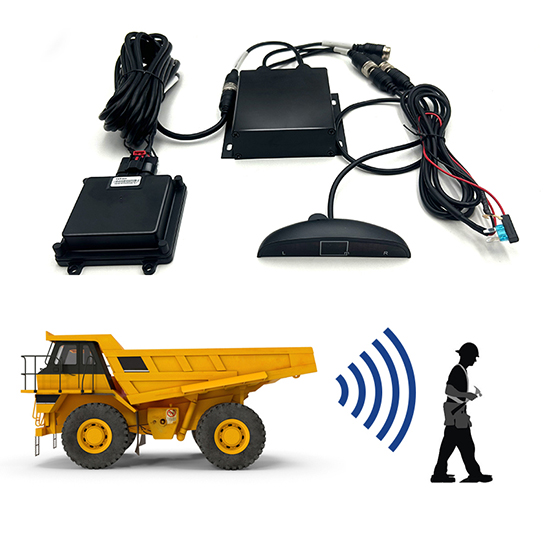

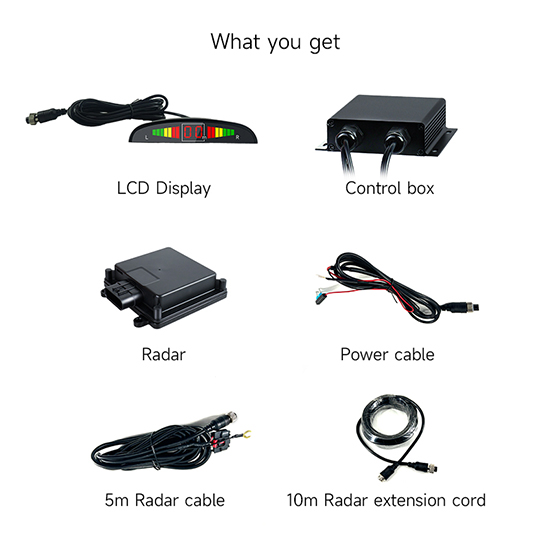

Feature:
control box
Feature:
power cable (of an appliance etc)
Feature:
LED warning screen
Feature:
5M radar line
Feature:
Radar mount/face cover
Feature:
10M radar line
Feature:
accessory kit
Feature:
Packing box
Set:
1KG,25×20×7C
描述
聯絡供應商
描述
- Operating voltage :12-24V
- Radar operating band :77-78Ghz
- Operating temperature :*-40℃--+85℃
- Single radar power consumption: < 2W
- Full load power consumption: < 5W
- Seismic rating :5.9G
- Waterproof protection :Ip67 (radar); IP65 (Main control box)
- Refresh rate: 33Hz
- Number of sending and receiving channels :2TX4RX
- Pitch beam width (6dB):*-2~8°
- Horizontal beam width (6dB):*-60--+60°
- Distance resolution :0.2M
- Speed resolution :1.9km/h
- Speed range :±60km/h

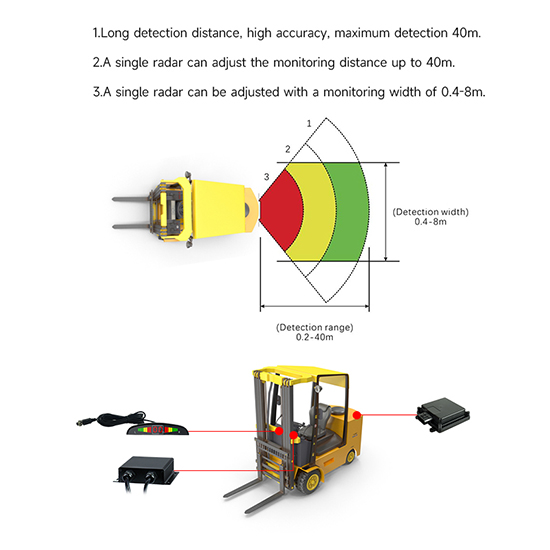

- Detection distance: Length 0.2~40m, detection width can be limited, up to 3 detection areas can be set (the distance of each area can be configured)

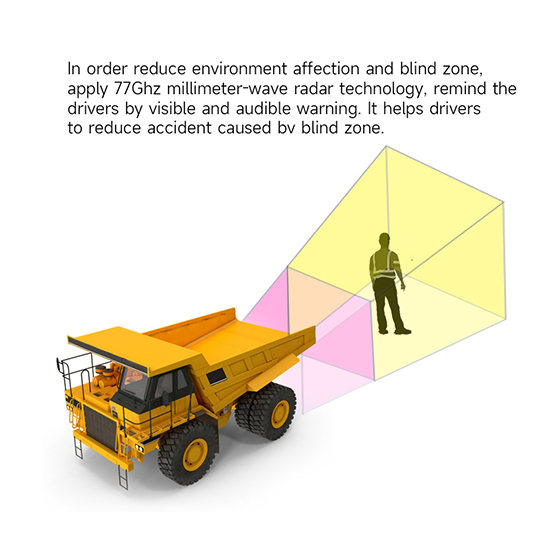

- Application scenarios: mining truck, cement truck, large truck, sand truck, dump truck
