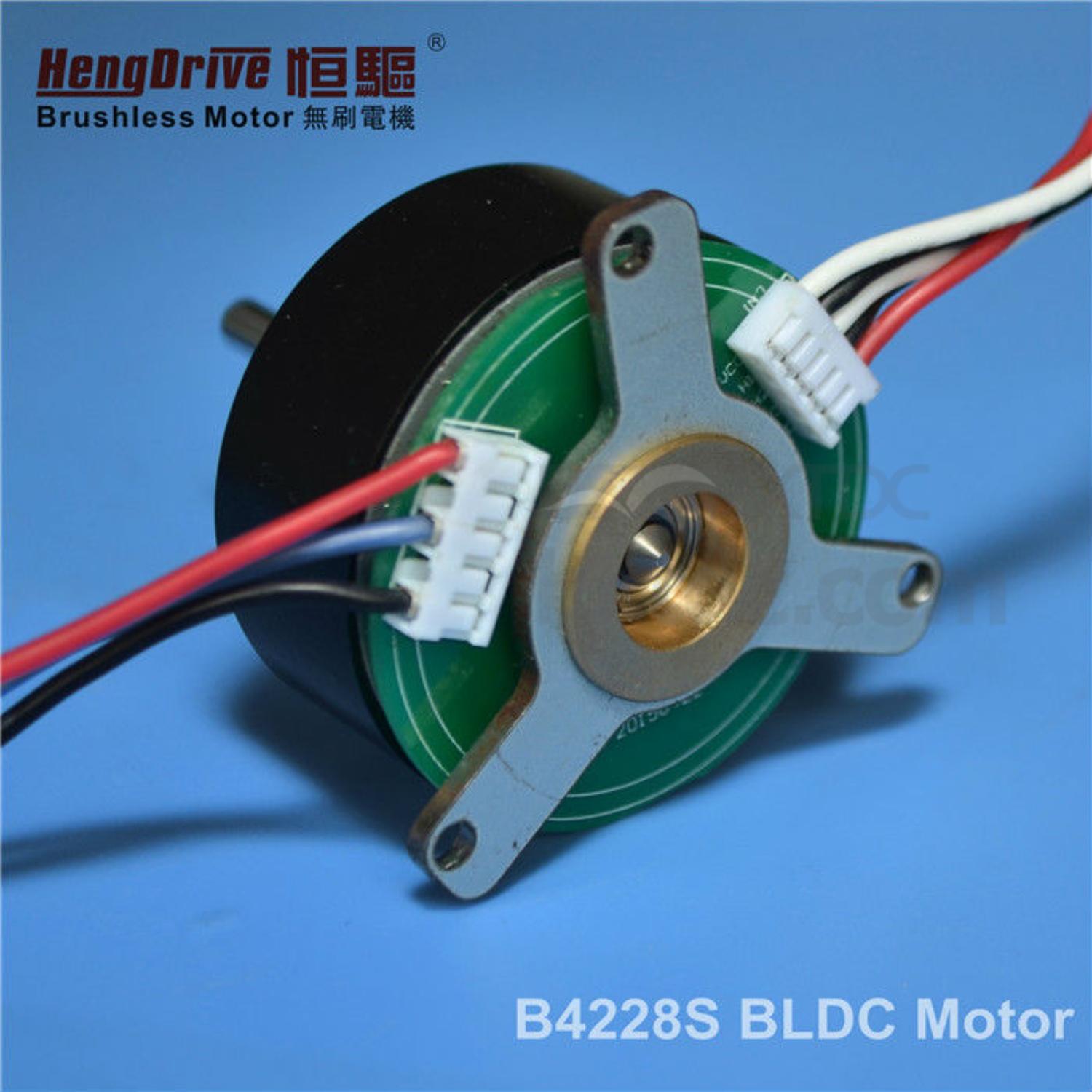

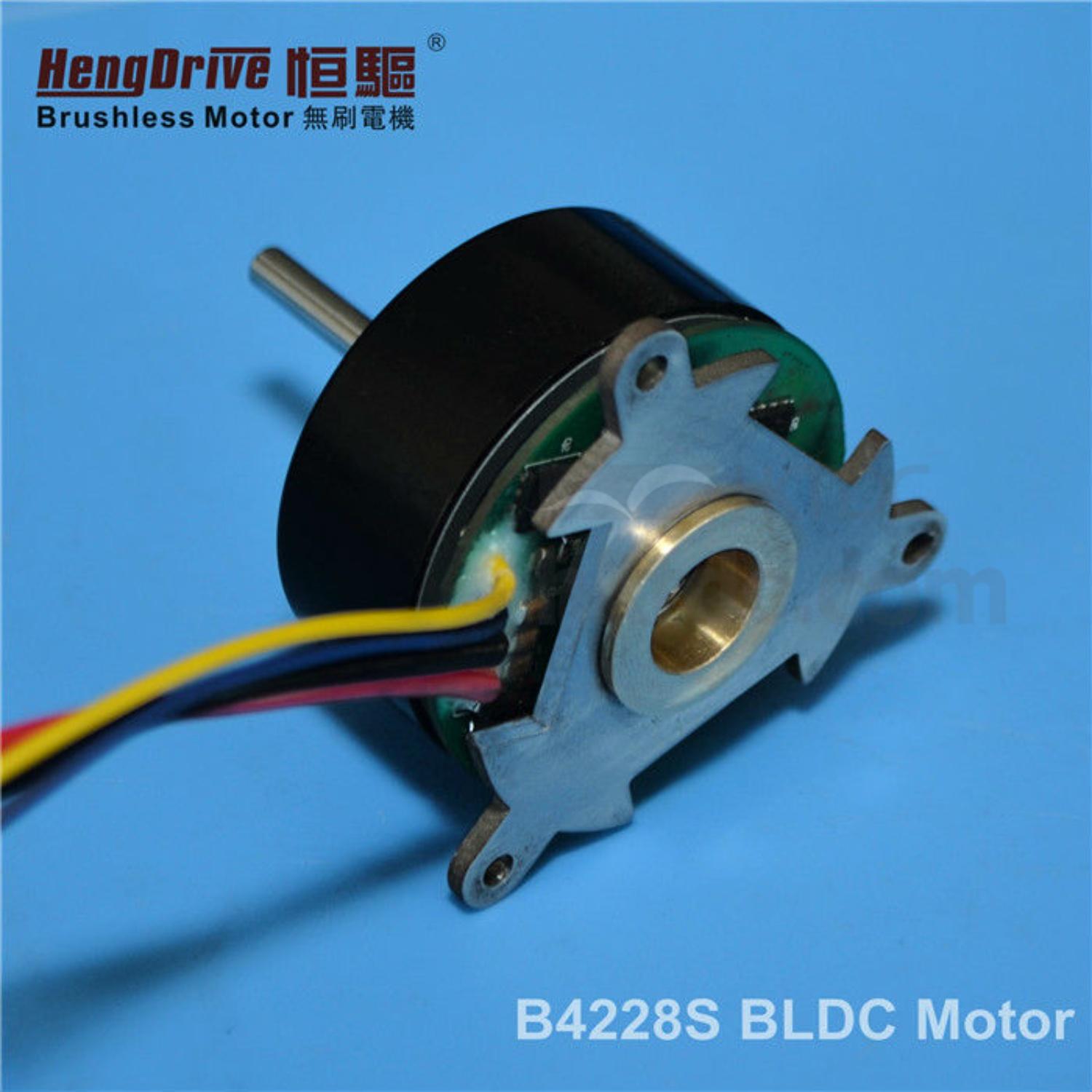

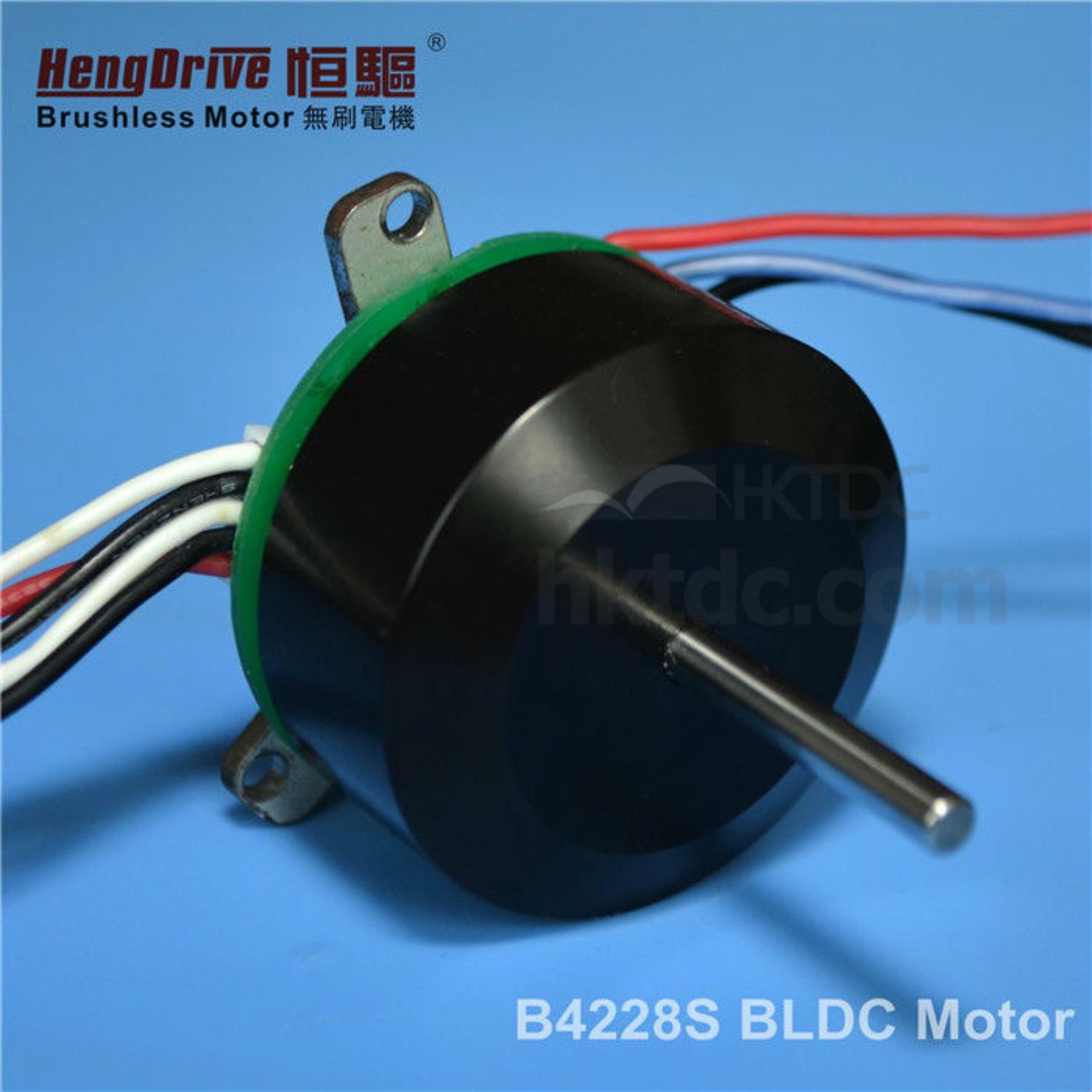

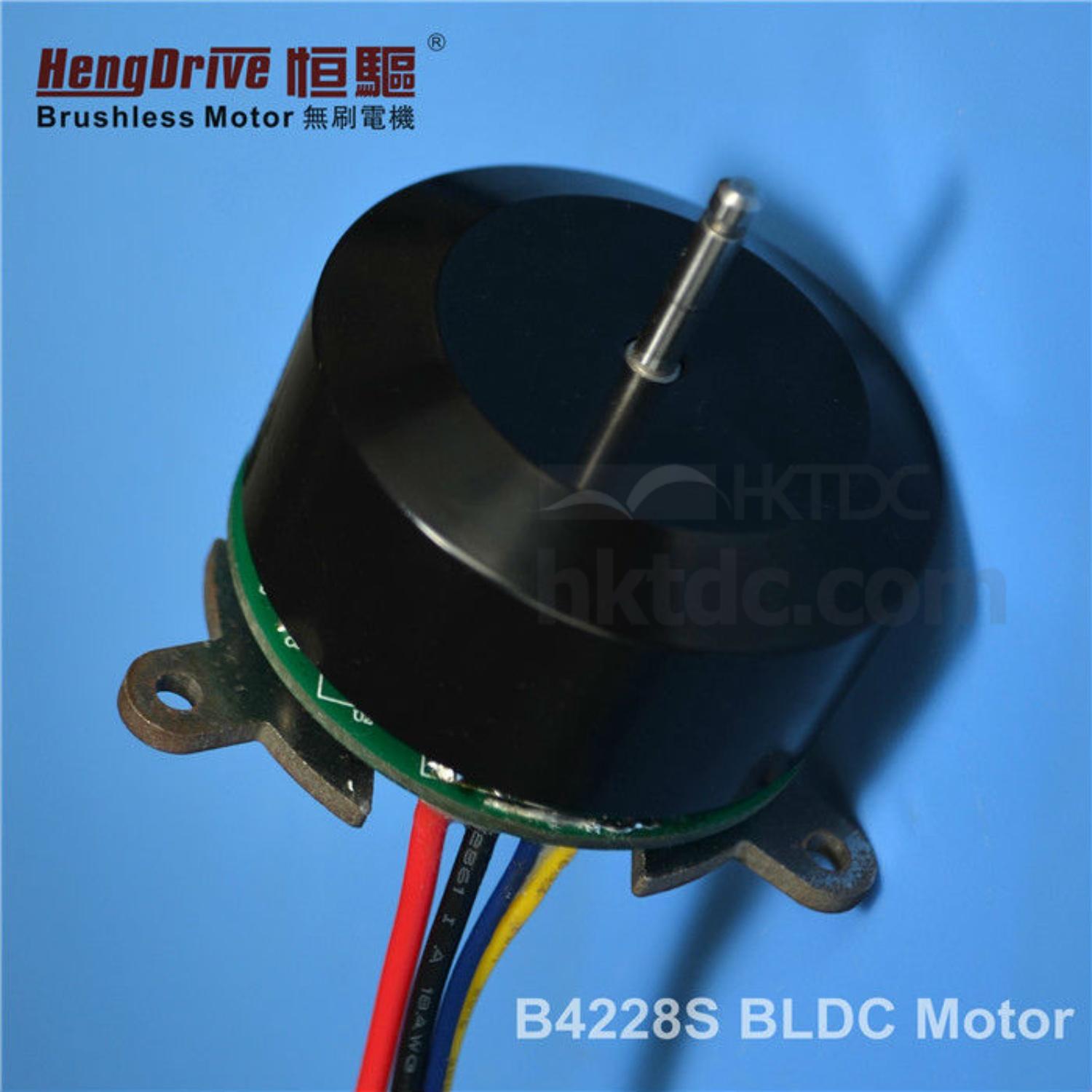

B4228S Outer Motor

• Output Power: 50W~200W Weight: 140g (Approx.)

Brushless Motor-Typical Application

• Home Application: vacuum cleaner, Pump, Stirrer,
• Personal Care: Hair Dryer,
• Medical Apparatus: Medical Pump, Medical Stirrer, centrifugal Machine, Oxygenerator
• Industry Equipment: Air Compressor, clearing machine, Electric Valve, blower fan
• Business Equipment: Cordless drill, electric tool
• Automobile Parts: Pump, Actuator

Specification:

• Model B4228S-S05
• Voltage(V): AC220

No Load

• Speed (rpm): 14871
• Current (A): 0.05

Rated Load

• Torque (mNm): 100
• Speed (rpm): 17850
• Current (A): 0.84
• Output P. (W): 186.92

Starting

• Torque (mNm): 381.08
• Current (A) : 3.00

Characteristic:

• CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-30000hrs

Notice:

• Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

For outline drawing and Performance curve, please visit our web to download:
