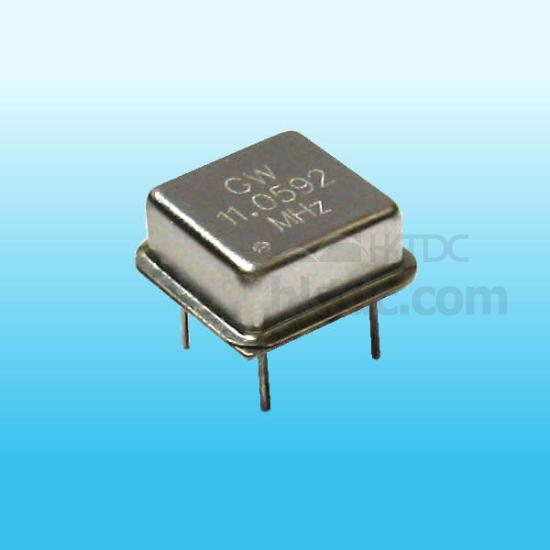

Half size clock Oscillator Quartz Crystal

產品型號:

GW 11.0592

品牌名稱:

付款方式:

COD

頻率誤差:

(at 25°C) is +/-50ppm, +/-30ppm or specify and the temperature stability (REF to 25°C) is +/-50ppm, +/-30ppm or specify

負載電容量:

10 to 32pF Series Resonance or Specify

描述

聯絡供應商

ISO 9001:2000; ISO14001:2004 certified
RoHs Complaint SGS certified
Freq. Range 3mhz to 80 mhz
Stability +/- 3ppm to 100ppm
Competitive Pricing
Product Specifications :
This quartz crystal has the frequency range (Fo) of 3.200MHz to 60.000MHz.
The mode is Fundametal or AT.
The frequency tolerance (at 25°C) is +/-50ppm, +/-30ppm or specify and the temperature stability (REF to 25°C) is +/-50ppm, +/-30ppm or specify.
Operating Temperature Range (Torp) is -10°C to 70°C.
Storage Termperature Range (Tstg) is -40°C to 85°C.
Shunt Capacitance (Co) is 7pF Max.
Load Capacitance (Cl) is 10 to 32pF Series Resonance or Specify.
Insulation Resistance is 500 Mega ohms Minimum at 100V.
Drive Level is 1mWatts Max.
Aging (at 25C) is +/-5ppm/year Max.
