Heat Shrink Butt Splice Connector and Terminals RIng Spade Male Female Fork shape

生產所需時間:

28 日

運送方式:

by sea

Model No.:

JTSP

品牌名稱:

UPM heat shrink

港口:

Dalian, China

付款方式:

T/T, D/P

最低訂購數量:

300 piece(s)

是否可訂造:

是

描述

聯絡供應商

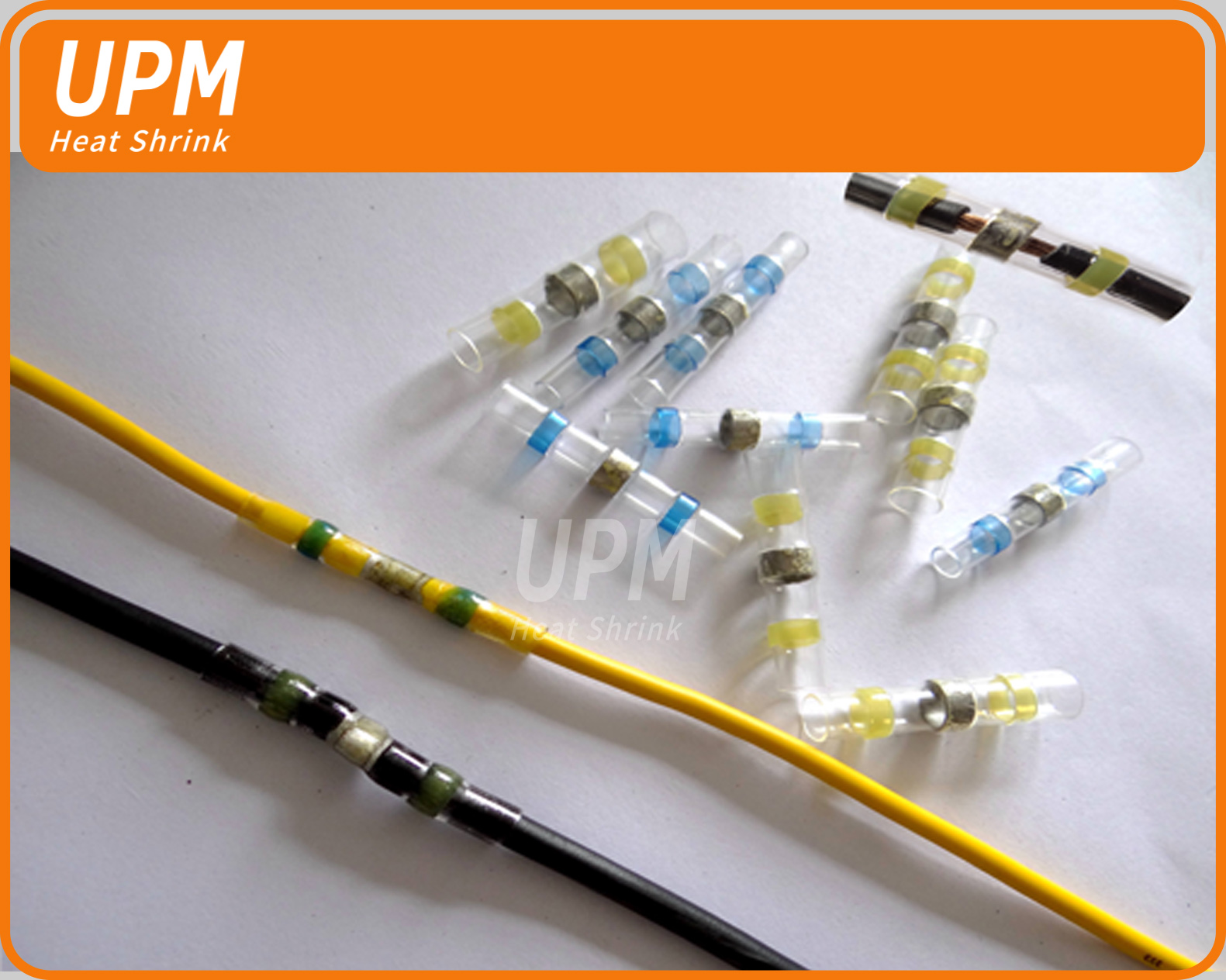

WR-01N RoHS Solder Sleeve Wire Splices

Introduction
Solder sleeve discrete wire terminators,including cross-linked polyolefin insulation tube,prefluxed lead-free solder ring,meltable adhesive ring.Used for terminating wires to component terminals, such as tabs, connector pins, and switch terminals.Wire connection, fusion, insulation and waterproofing all completed in one step.One piece transparent design,easy inspection and convenient installation.

Features Operating temperature: -55 to 125°C Minimum fully recovery temperature: 115°C Solder complete melting temperature: 150 ℃ Shrink ratio: 2:1 Voltage class: 600V Lead-free environmentally friendly solder ring

Technical Data
Property	Test Method	Requirement
Tensile Strength	ASTM D2671	≥14 MPa
Ultimate Elongation	ASTM D2671	≥400%
Heat Aging (150°C/168h) Tensile Strength Ultimate Elongation	ASTM D2671	≥10 MPa ≥200%
Dielectric Voltage Withstand	AC 2500V, 60s	No breakdown
Heat Aging (150°C/168h) Dielectric Voltage Withstand	ASTM D2671	No breakdown, and not less than 50% before aging
Low-temperature flexibility (-40°C/4h)	ASTM D2671	No cracking
Heat shock (200°C/4h)	ASTM D2671	No cracking
Secant modulus 2%	ASTM D2671	≤250 MPa
Volume resistivity	ASTM D2671	≥1.0×1014Ω.cm
Dimension
Part NO.	Tube Dimensions (mm)		Wire Dimensions (mm)			Wire Range		Color
	Inner diameter d (min.)	Length L	B (min.)	B&C (max.)	C (min.)	A.W.G	mm2	Color
WR-01N-11	1.7	26	1.0	1.7	0.76	26-24	0.25-0.34	White
WR-01N-12	2.7	40	1.4	2.7	1.2	22-18	0.5-1.0	Red
WR-01N-13	4.7	40	2.3	4.7	2.0	16-14	1.5-2.5	Blue
WR-01N-14	6.0	40	3.7	6.0	3.4	12-10	4.0-6.0	Yellow
