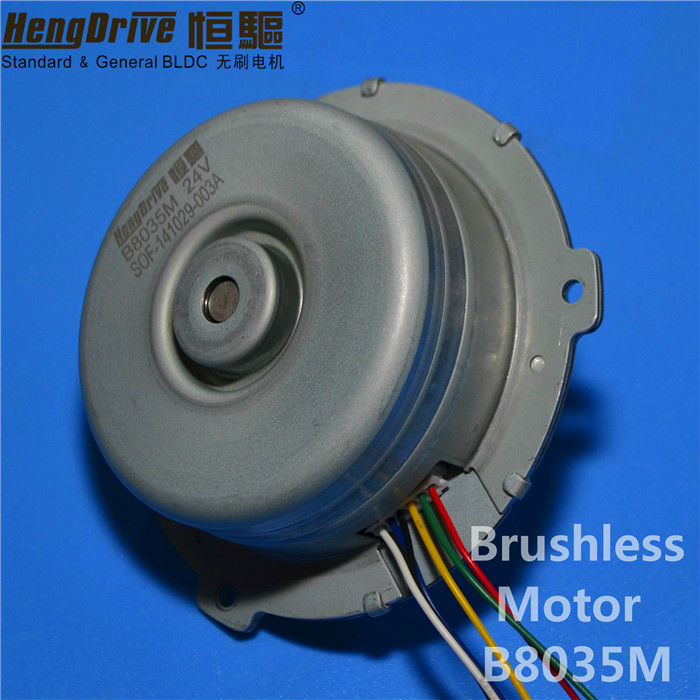

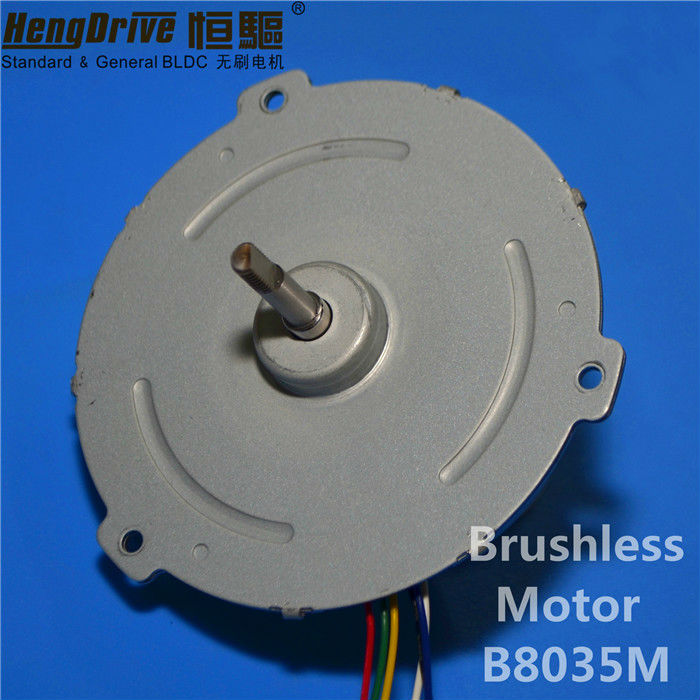

Hendrive 80mm Brushless Motor
分享此頁面
生產所需時間:
35 日
產品型號:
B8035M
品牌名稱:
Hengdrive
顏色:
Metal
尺寸:
80 x 35mm
港口:
Shenzhen/Hongkong
付款方式:
prepayment 30%, balance Cash Before Delivery
最低訂購數量:
2000 piece(s)
是否有包裝:
是否可訂造:
描述
聯絡供應商
描述
Brushless DC Motor B8035M - Typical Application
  • B8035M-S01
  • Operating Range 12-26V
No-load:
  • Voltage         24V
  • Speed (rpm) 3202
  • Current (A)           0.46
Rated Load:
  • Torque (mNm)  132
  • Speed (rpm)     2753
  • Current (A)       2.23
  • Output P. (W)   38.05
Stalling :
  • Torque (mNm) 939.5
  • Current (A)
  • Home Application: White goods, air purifier, electric fan, exhaust fan, tubular fan, air blower
  • Automobile Parts: Auto Fan, Auto Pumps
  • Medical Apparatus: Medical blower, Medical mixer
  • Power Tools: Air Pump, Air Compressor
  • Industry Equipment: Power Machine, Transmission gear equipment

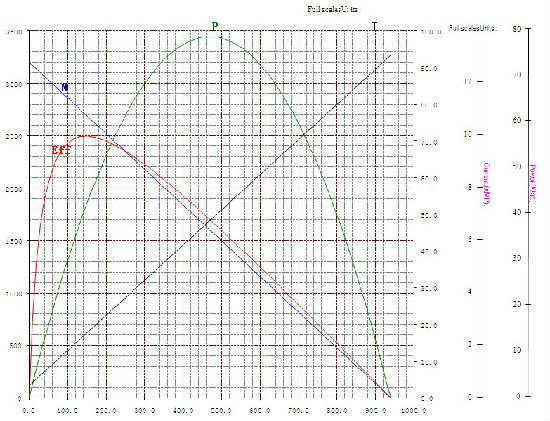

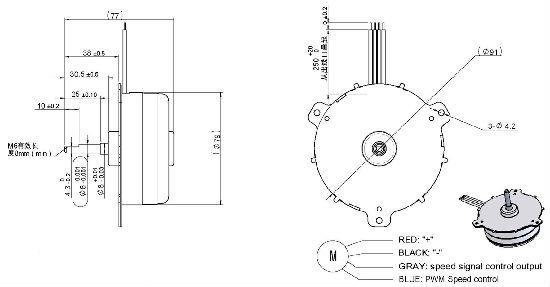

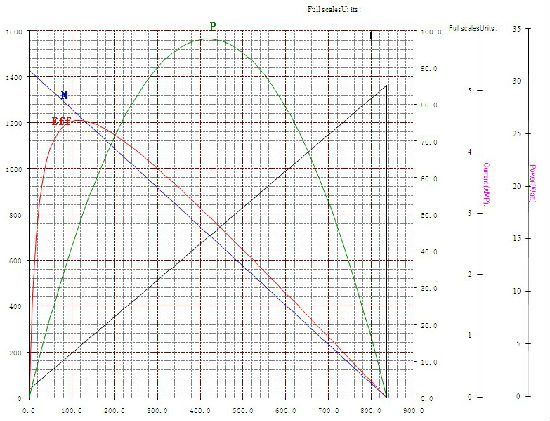

Datasheet:
Characteristic:
  • CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-50000hrs
Notice:
  • Data in this typical specification sheet are for other certain customer, the specific BLDC motor performance and dimension can be changed by adjusting winding, magnetic field, controller parameter and relevant mechanical factor to meet different customer requirement.
Please contact me to get the completely datasheet!
