High Voltage Amplifier

產品型號:

T-HVA02

品牌名稱:

TURTLE INDUSTRY Co., Ltd.

尺寸:

H132.5 x W230 x D231mm (protrusion not included).

港口:

Narita Airport

付款方式:

remit by cable in advance

最低訂購數量:

1 piece(s)

描述

聯絡供應商

Weight approx.: 6 kg (does not include any accessories such as an AC cable).
Max. output voltage: 600Vpp.
Max. output current: ±100mA.
Output resistance: 18Ω (standard).
Monitor output: 1/100.
Slew rate: 400V/μs or more.
Load resistance: 2kΩ or more (resistance load).
Input resistance: 1MΩ.
Gain: 30 times (29.5dB, fixed) ± 3%.
Output offset adjustable range approx. ±50V.
Small signal frequency property: DC ~ 2MHz (±3dB, 15Vpp, no load).
Power supply voltage: AC100V ±5V.
Consumed current: approx. 250mA (AC100V, Output 0V).

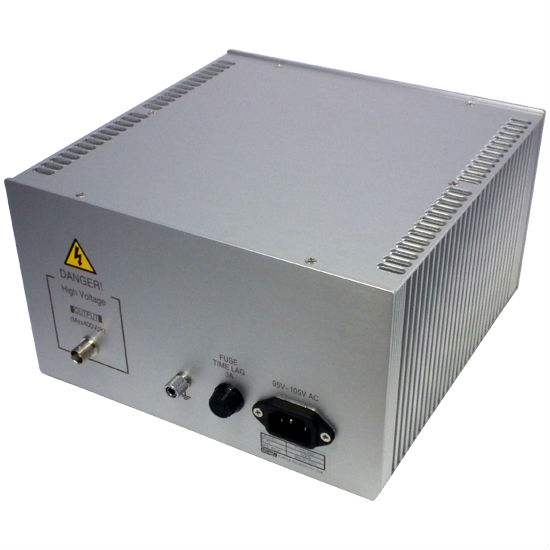

Fuse: 3A time-delay type.
Operating temperature: 5C ~ 35C.

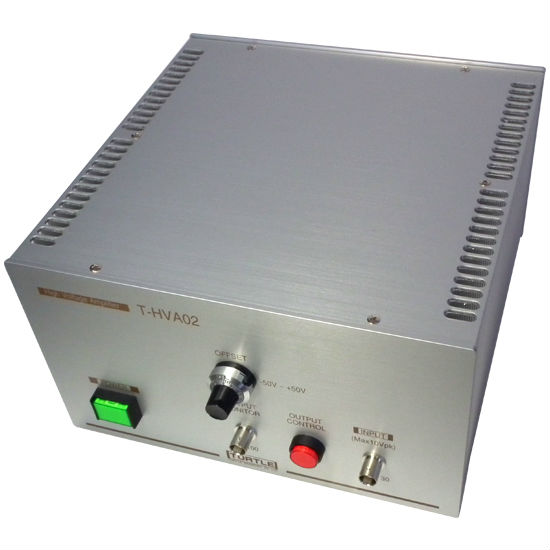

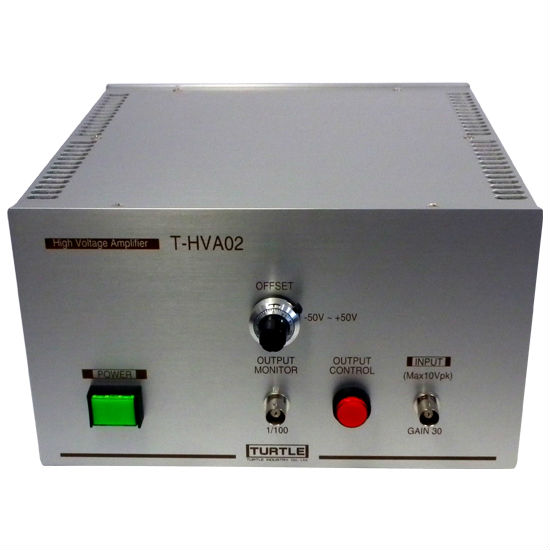

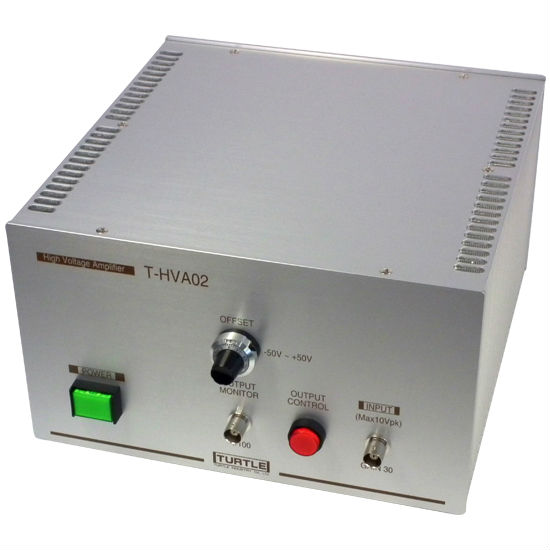

With a press power button in green and an output control button in red.
Rotary control button.
Responsive to large amplitudes.
Rugged construction.
Suitable for various purposes including the control of XY table with nano-level, sound measurement in water and investigation of inner materials of structures.
