IP65 AC100-265V DC12-24V 1w plated chrome square wall light outdoor stair step lights exterior led garden wall lights

生產所需時間:

15~25 日

運送方式:

Ex-works

品牌:

PLAYLITE

是否可訂造:

可以

包括燈泡:

是

材料:

Aluminium

可調亮度:

否

光源:

發光二極管照明

燈具樣式:

現代

型號編號:

SP-015-0100-AH PC

尺寸:

70*55*43 mm (Length x Width x Height)

重量:

0.35 kgs

Watts:

CCT:

2700K, 3000K, 4000K, 4500K, 5700K, 6500K

Beam Angle:

Asymmetrical 40°x 45°

Luminous flux:

40lm +-10%

Input voltage:

AC100-265V optional (DC12-24V)

IP rating:

IP65

IK rating:

IK06

Cut out:

60*50*135 mm (Length x Width x Height)

CCT:

2700K, 3000K, 4000K, 4500K, 5700K, 6500K

描述

聯絡供應商

. 1 PC OSRAM 3030 LED with high lumen and beautiful light output

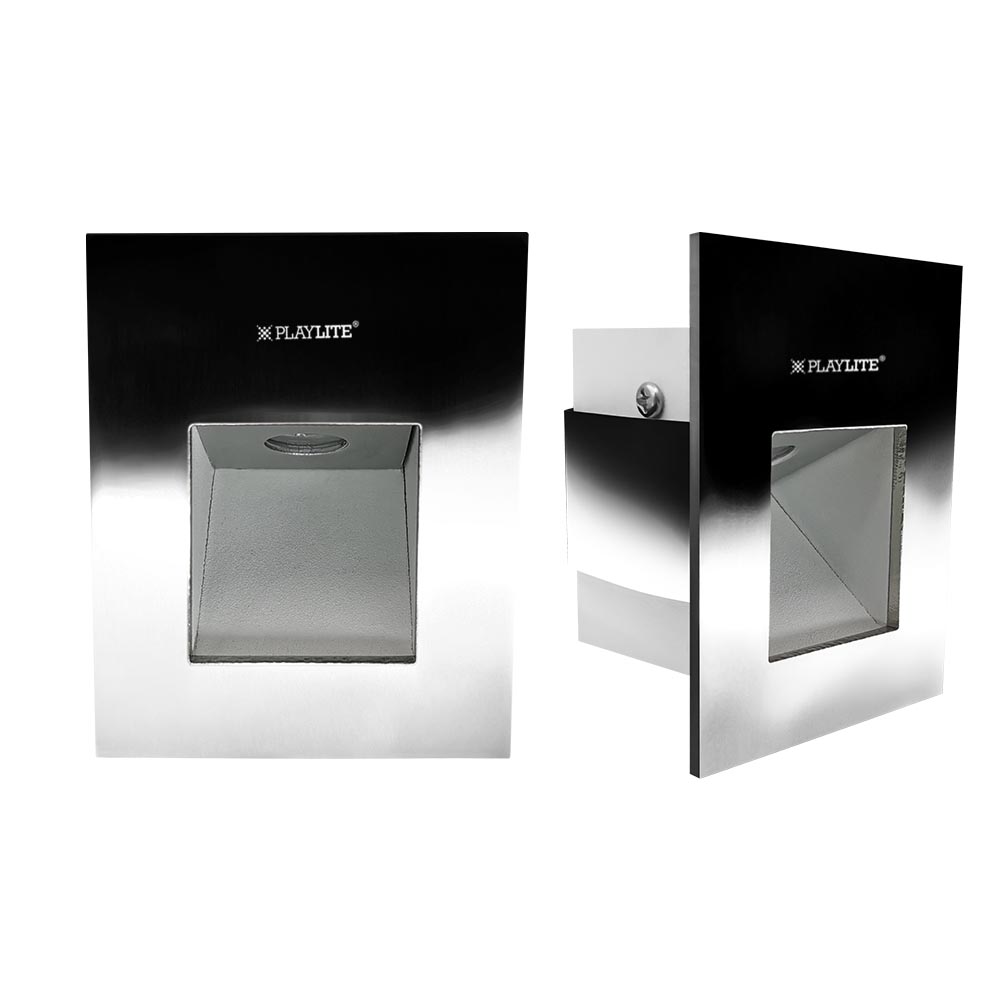

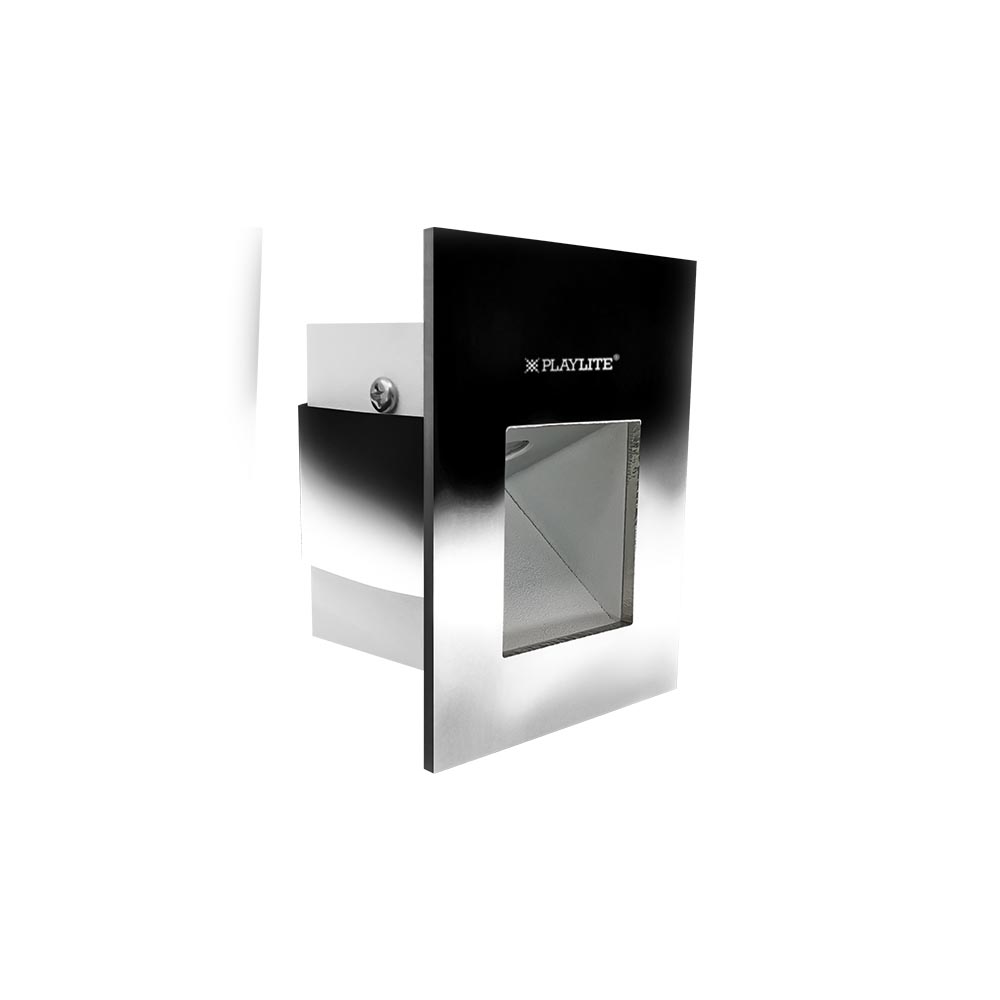

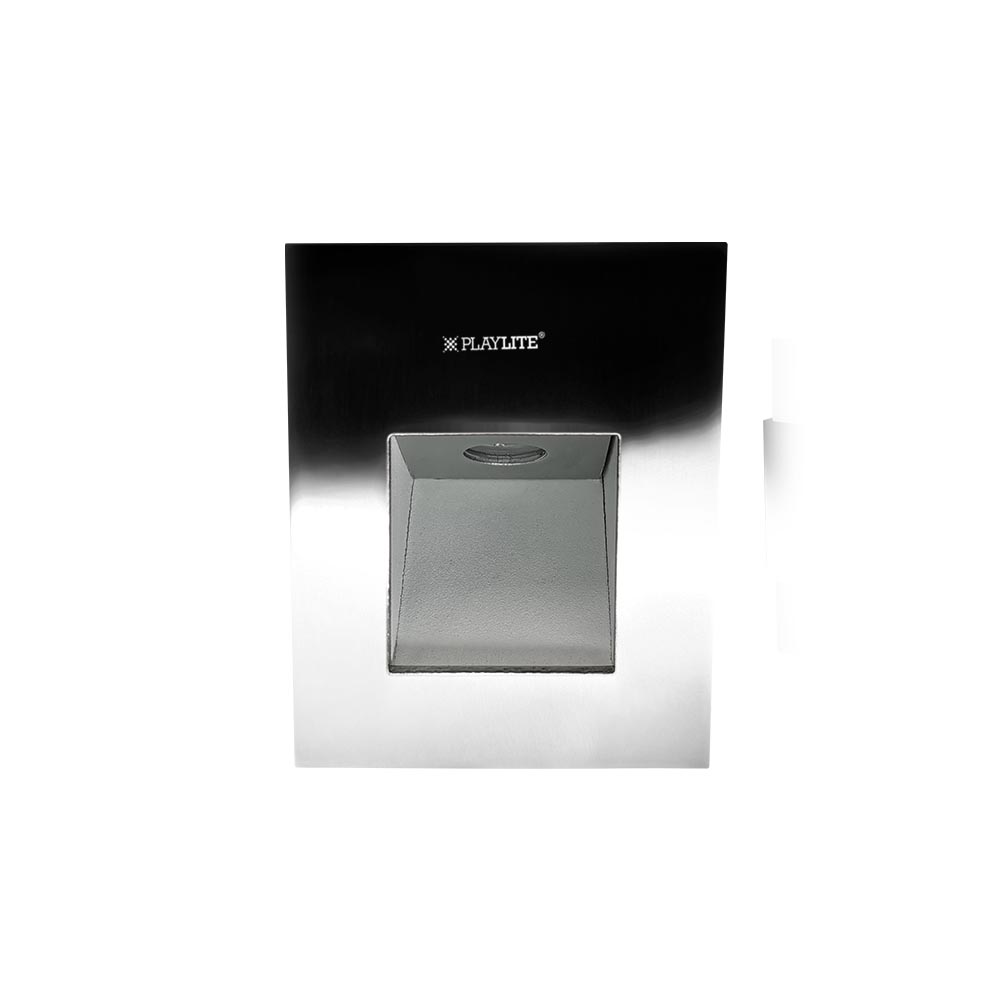

. Mini Aluminium trim 70x55mm (LxW), square outside and inside
. Excellent design of heat-conducting housing ensure long life time of LED
· Waterproof IP65.
· 3 years warranty.

.8~10 years professional sales and technicians to serve you

General Data
Item No.	SP-015-0100-AH PC
Power	1Watts +-10%
LED type	1 PC OSRAM 3030 LED
Luminous flux	40lm+-10%
CCT	2700K, 3000K, 4000K, 4500K, 5700K, 6500K
CRI	80+
Beam angle	Asymmetrical 40°x 45°

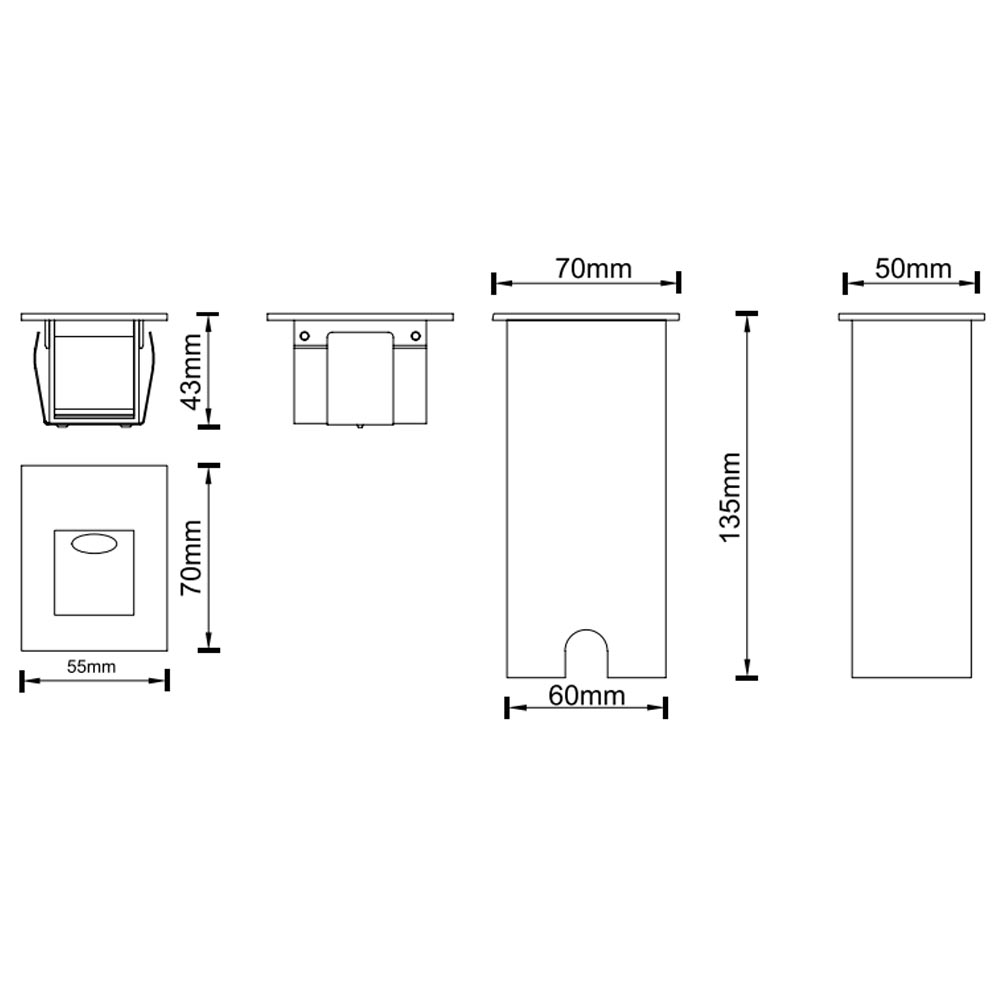

Dimension	*705543 mm (Length x Width x Height)*
Cut out	*6050135 mm (Length x Width x Height)*
Net weight	0.35 kgs
Warranty	3 years
Certifications	CE, RoHS
Electrical Data
Input voltage	AC100-265V optional (DC12-24V)
Insulation class	Class I
Cable	PVC cable 0.5M 2x0.34 mm square
Driver	constant current driver
Construction Data
IP rating	IP65 Waterproof
IK rating	IK06
Housing	Aluminium
Protection finishing	Powder coated painted in white for housing
Trim	polished chrome Aluminium
Glass	Tempered Glass
Loading capacity	/
Cable Gland	Aluminium part IP65
Gasket	silicone ring + silicone glue seal
Accessories
Mounting Sleeve	Aluminium mounting box
