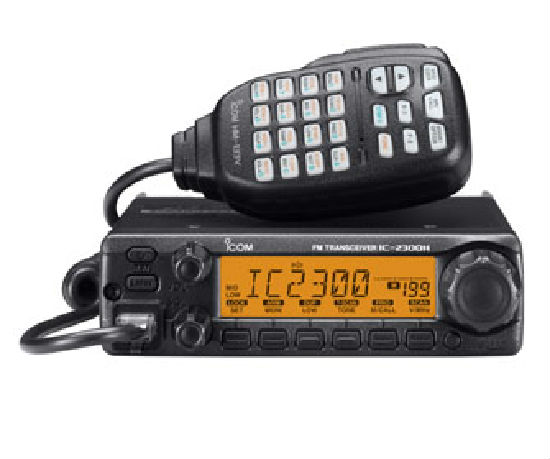

Icom IC-2300H 144MHz FM Transceiver
產品型號:
IC-2300H
品牌名稱:
Icom
描述
聯絡供應商
描述
- 65 Watts of RF Output Power with Heavy Duty Endurance
- Powerful 4.5W Audio Output Provides Loud and Clear Audio
- Tested to the Latest MIL-STD 810 G Specifications
- Power supply voltage display
- Wide/narrow channel setting
- 4.5W (typical) loud audio
- Reduced depth dimensions
- DTMF autodial
- Time-out timer
- Repeater lockout
- Automatic power off
- S-meter squelch
- Selectable LCD backlight color (amber, yellow and green)
- Weather channel receive and alert function (USA version only)
- Automatic repeater function (USA version only)
- Selectable squelch delay from short and long
- Squelch attenuator reduces suppression from strong signals
- PC to transceiver and transceiver to transceiver cloning capability
(optional cloning software, CS-2300H and/or cloning cable required)
General:
- Frequency coverage : TX: 144–148MHz / RX: 136–174MHz*
- Number of channels : 207 channels (including 6 scan edges, and 1 call)
- Type of emission : F2D, F3E (FM)
- Power supply requirement : 13.8V DC ±15%
- Current drain : Tx (65W):11A / Rx Stand-by:0.4A (Max. audio:1.5A)
- Antenna impedance : 50Ω (SO-239)
- Operating temperature range : –10°C to +60°C; 14°F to +140°F
- Weight (approx.)1.1 kg; 2.43lb
