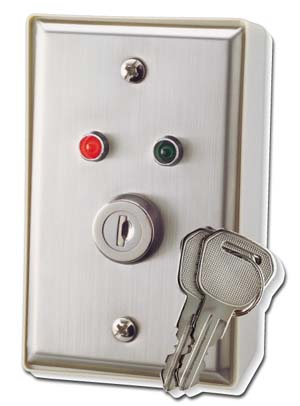

Shown here is a remote key station coming in a contemporary and delicate metallic appearance with a matte finish. It is equipped with latched or momentary dry contact for security system on/off control. Made of high quality stainless steel, this high-performance remote key station is suitable for most of the security systems.

• Stainless steel face plate.
• Remote key station with latched or momentary dry contact for security system on/off control.
• RKS-2L and RKS-2M are universal remote key stations designed for security system ON-OFF control applications.
• Built-in with connection terminals for the key switch, tamper switch and the LED lamps.
• Can be used freely in most of the security systems.
• The RKS-2L provides switch contact in latch.
• The RKS-2M provides spring returned momentary contact.
• Key switch contact rating: 50VDC / 3A maximum.
• Tamper switch contact rating: 12VDC / 50mA.
• Green LED with 1K Ohm series resistor.
• Red LED with 1K Ohm series resistor.
• Single gang US standard mounting box.
• Size: 117(H) x 73(W) x 44(D) mm.
• Weight: 200g.
