L50 Prismatic Diffuser Linear Light Series

美元 $20.00 - 美元 $50.00

生產所需時間:

30 日

運送方式:

by sea

型號編號:

DWLU4361T

Input Voltage:

AC200-240V, 50/60HZ

Power:

36W

LED Source:

SMD2835

Color Temp:

3000K/4000K/5700K

CRI:

Ra>80

Power Factor:

>0.9

IP Rate:

IP20

Optional:

0-10V dimming, Dali dimming

MOQ:

300PCS

Certificate:

CE,RoHS,CB,SAA

Warranty Time:

5 Years

Payment Terms:

T/T

Supply Ability:

7000pcs per month

描述

聯絡供應商

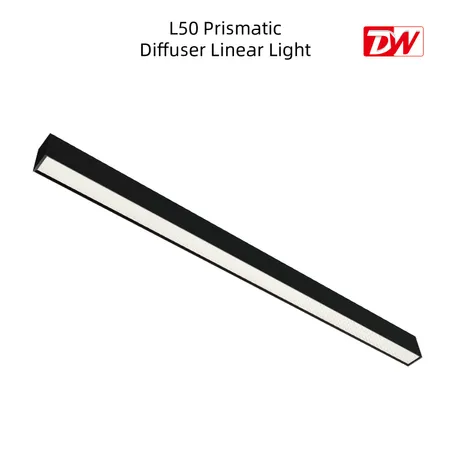

L50 Prismatic Diffuser Linear Light Series

Thanks for choosing Dolight L50 UGR Prismatic Linear light. This Linear light combines innovative optical and mechanical design features to achieve UGR<19 for up and down light and efﬁciency as high as 110lm/W，This linear light adopts extrusion aluminum and the cap without any screw, so it enjoys elegant，tproﬁle which is also easy for no gap installation，In order to offer universal application，user CCT selected by a DIP switch and Up/Down light version.

◈ FEATURES

• Prismatic diffuser, uniform light output,

• Down light UGR 23, UP/Down light UGR<19,

• Efficiency, 100lm/W,

• CCT color selected by dip switch,

• Plug and play uplight LED module,

• Samsung LEDs;

• Screw free end cap,

• Built-in dreiver option:On/off,Dimming 1-10V, DALI dimming,CCT tunable driver;

• Continuous line by joint connections,

• Competitive price,

• Can use Emergency driver;

LED Linear Light With PIR Sensor

• Sensor module,

• Built-in Sensor system,

• On/Off sensor, PIR Senor

◈ SIZE

L50 Prismatic Diffuser Linear Light
Model No.	Lighting	Size	Efficiency	Wattage	Luminous	CCT	Diffuser+Housing color	Beam Angle	UGR
DWLG4281/2	Down	50x72x1130mm	100lm/W	28W	2800lm	3000K&4000K&6500K	1=white 2=black	90°	downUGR<23
DWLG5341/2	Down	50x72x1410mm	100lm/W	34W	3400lm			90°	downUGR<23
DWLG4281/2(U)	Up/Down	50x72x1130mm	100lm/W	28W	2800lm			90°	up down UGR <19
DWLG5341/2(U)	Up/Down	50x72x1410mm	100lm/W	34W	3400lm			90°	up down UGR <19

L50 Prismatic Diffuser Linear Light CCT Selected by DIP Switch
Model No.	Lighting	Size	Efficiency	Wattage	Luminous	CCT	Diffuser+Housing color	Beam Angle	UGR
DWLG427XT	Down	50x72x1130mm	105lm/w	27W	2800lm	3000K&4000K&6500K Selected	UGR diffuser +white(X=1) UGR diffuser+ black(X=2)	90°	downUGR<23
DWLG533XT	Down	50x72x1410mm	105lm/w	33W	3500lm			90°	downUGR<23
DWLG427XUT	Up/Down	50x72x1130mm	105lm/w	27W	2800lm			90°	up down UGR <19
DWLG533XUT	Up/Down	50x72x1410mm	105lm/w	33W	3500lm			90°	up down UGR <19
Noted：1. up/down lighting,up is 30%,down is 70%.
2. UGR<19 refers to UP/down lighting.
3.DWLG427XT, X means can choose white housing or black housing
