L50 Recessed Opal Linear Light Series

美元 $20.00 - 美元 $50.00

生產所需時間:

30 日

運送方式:

by sea

型號編號:

DWLF4281/2R

Input Voltage:

AC200-240V, 50/60HZ

Power:

28W

LED Source:

SMD2835

Color Temp:

3000K/4000K/6500K

CRI:

Ra>80

Power Factor:

>0.9

IP Rate:

IP20

Optional:

On/Off, or Dali dimming

MOQ:

300PCS

Certificate:

CE,RoHS,CB,SAA

Warranty Time:

5 Years

Payment Terms:

T/T

Supply Ability:

7000pcs per month

描述

聯絡供應商

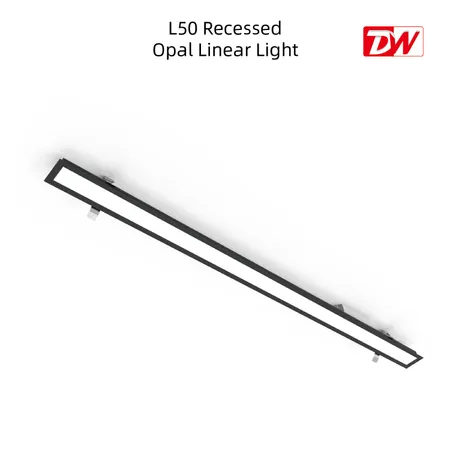

L50 Recessed Opal Linear Light Series

Thanks for choosing Dolight L50 Opal Linear light. This Linear light combines innovative optical and mechanical design features to achieve lower glare and efﬁciency as high as 100lm/W，In order to offer universal application，user CCT selected by a DIP switch and Up/Down light version.

◈ FEATURES

• PC diffuser or prismatic diffuser, Uniform light output,

• Efficiency: 100lm/W;

• CCT color selected by DIP Switch,

．Samsung LEDs;

• Built -in driver or External driver optional,

• SKD components are available;

• Continuous line by joint connections,

• Easy and quick for installation;

◈ SIZE

Model No.	Lighting	Size	Efficiency	Wattage	Luminous	CCT	Diffuser+Housing color	Beam Angle	UGR
DWLF4281/2R	Down	50x72x1130mm	100lm/w	28W	2800lm	3000K&4000K&6500K	White profile pc diffuser	110°
DWLF5341/2R	Down	50x72x1410mm	100lm/w	34W	3400lm		Black profile pc diffuser	110°
DWLG4281/2R	Down	50x72x1130mm	100lm/w	28W	2800lm		White prismatic diffuser	110°	up down UGR <19
DWLG5341/2R	Down	50x72x1410mm	100lm/w	34W	3400lm		Black prismatic diffuser	110°	up down UGR <19
Notd:CCT color selected by DIP Switch is available.
