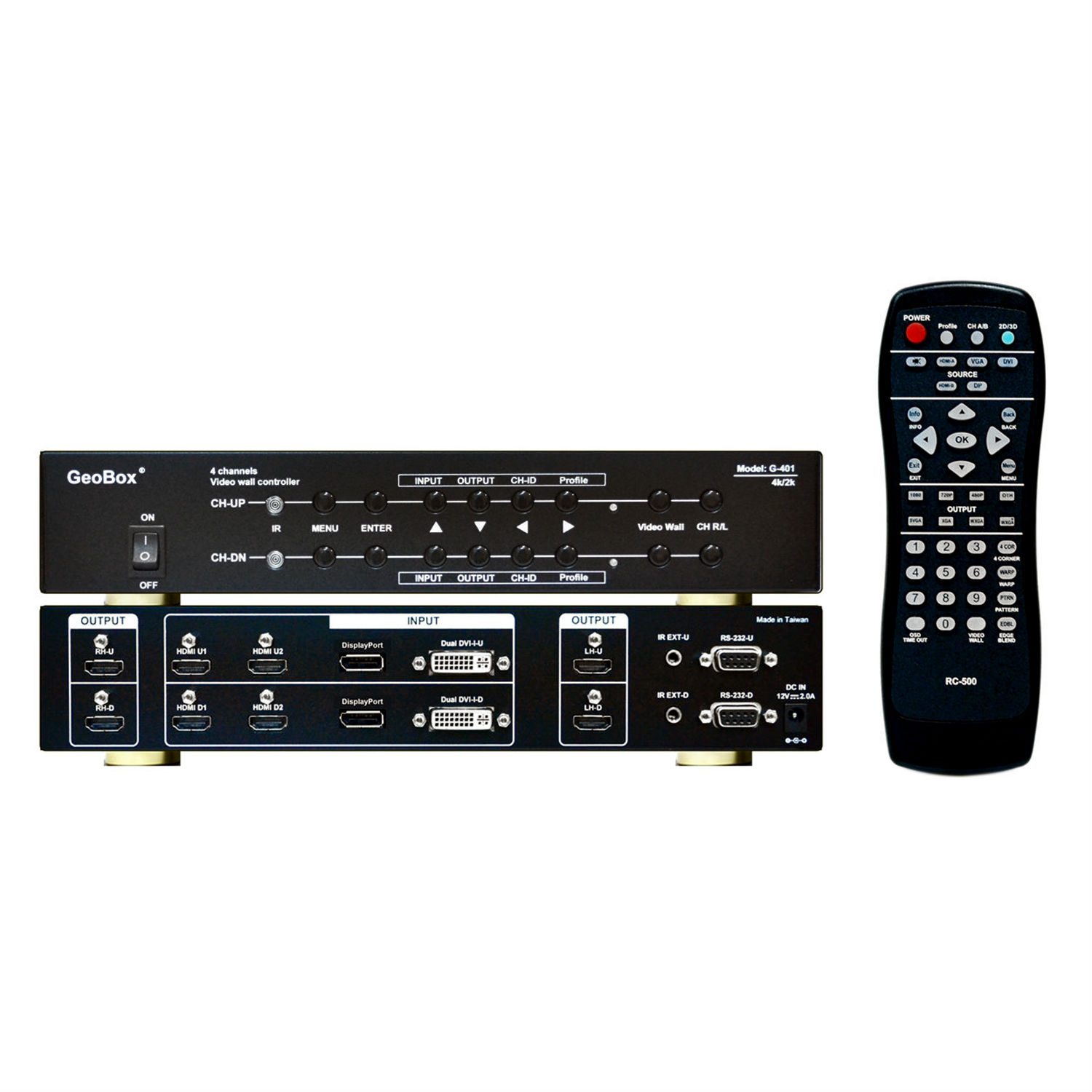

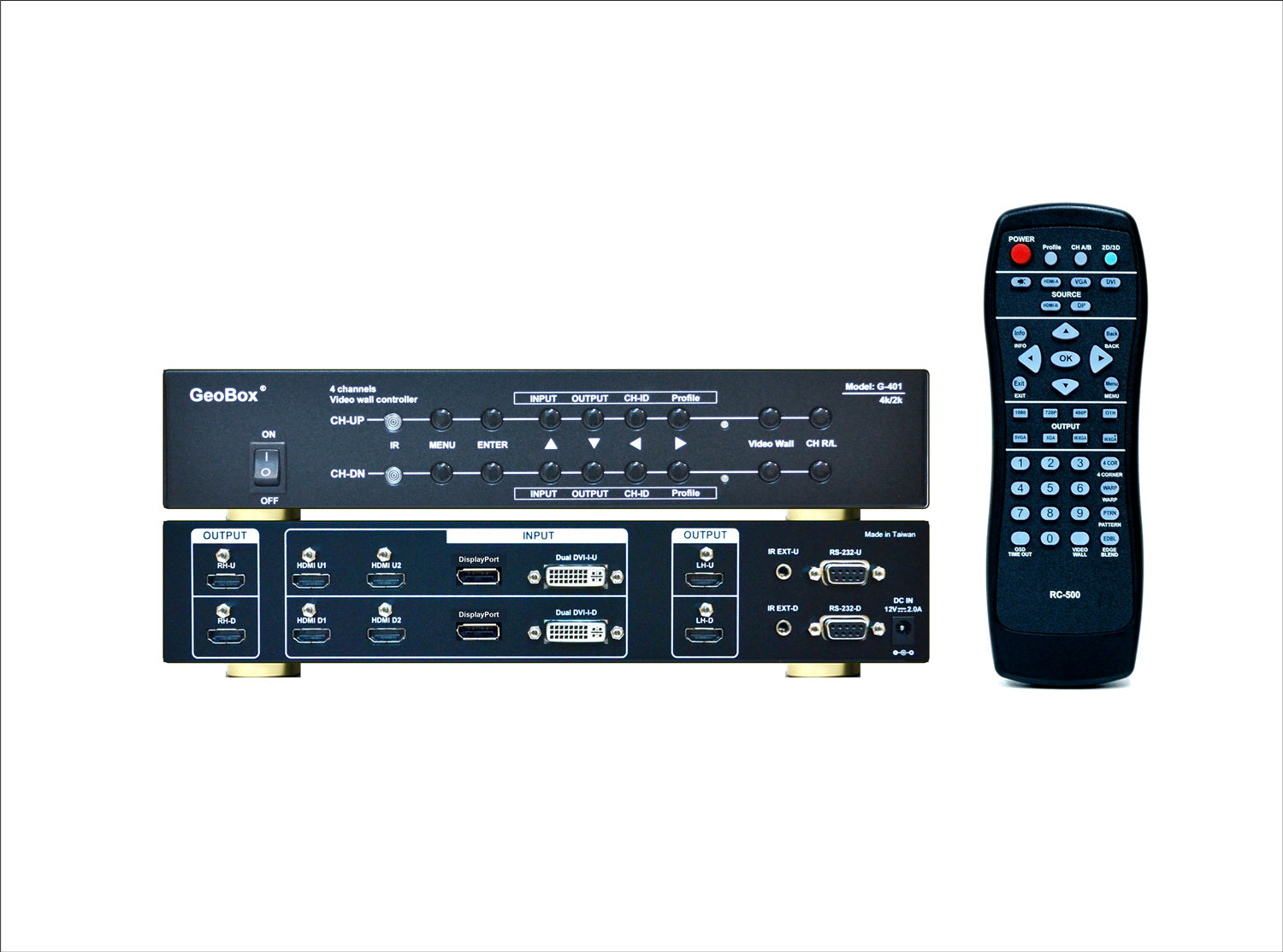

Featured here is a pure hardware 4 channel video wall controller. It is able to connect with PC, Blue Ray, media players and game consoles directly. Low cost conventional monitor or TV can be used. Users can cascade with multiple wall controllers to get high resolution and irregular video walls. No PC or software is required, making this wall controller more easy to use and more reliable.

Features:

• 4k/2k pure hardware video wall controller for LCD TV walls.
• I/O ports: 8 inputs and 4 outputs.

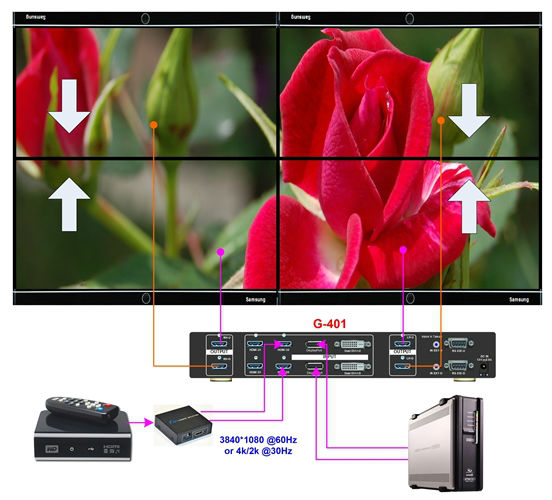

• Max input: 4:4:4 full sampling 4k/2k @30Hz or 3840x1080 @60Hz standard timing.
• Loop out: 4k/2k loop out port for daisy chain connection.
• Max output: 2048x1080.
• Connectivity: any signal sources from PC, media player, PlayStation, X-box, Blue Ray, etc.
• LCD: work with any LCD with different sizes, resolutions or bezel dimensions.
• Conventional TV can be used at: 180〫down flip position for bezel balance.
• Bezel correction: pixel by pixel precise adjustment.
• Processor: 10-bits high end video processor with 3D motion adaptive de-interlace, low angle smooth algorithm and 3:2/2:2 film mode processing.
• Aspect ratio adjustment: flexible, able to display 2.35:1 movie in 16:9 screen without blanking borders.

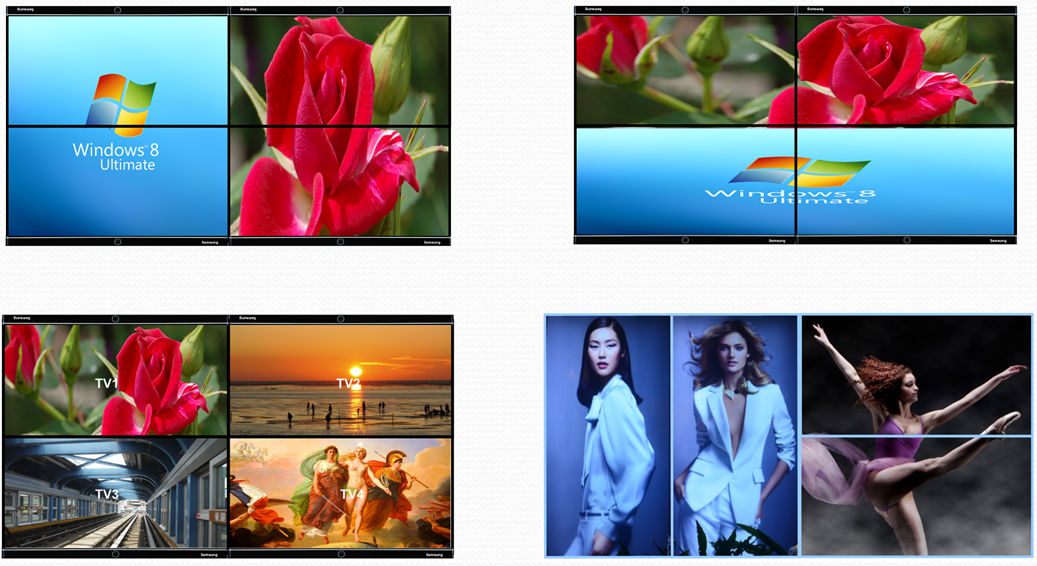

• Multiple signal source display: single/dual/triple/quad displays in 2x2 video wall.
• Display profile setting: save up to 5 customized profiles.
• Control: IR remote controller and RS232.
• Easy to install and use.
• Versatile and reliable performance.

Applications:

• Low cost video wall with conventional LCD or TV without matrix display.
• True 4k/2k or 8k/4k display with native FHD in each LCD.

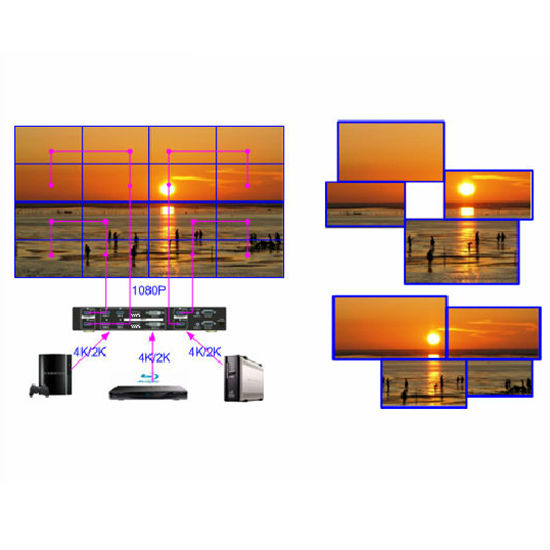

• Irregular video wall with LCD with different size/resolution and position.
• Video wall required precise bezel and position alignment.
• Split the image and set overlap pixel for projector edge blending.
• Simplify high resolution video wall configuration. Single 4k/2k source is easy to apply for 4x4, 5x5, 6x6, 8x8… video wall system.
• Able to display 2.35:1 movie in 16:9 video wall without blank borders.
• Display required flexible cropping area adjustment.
• Work with 90 degrees rotation signal source for portrait irregular video wall

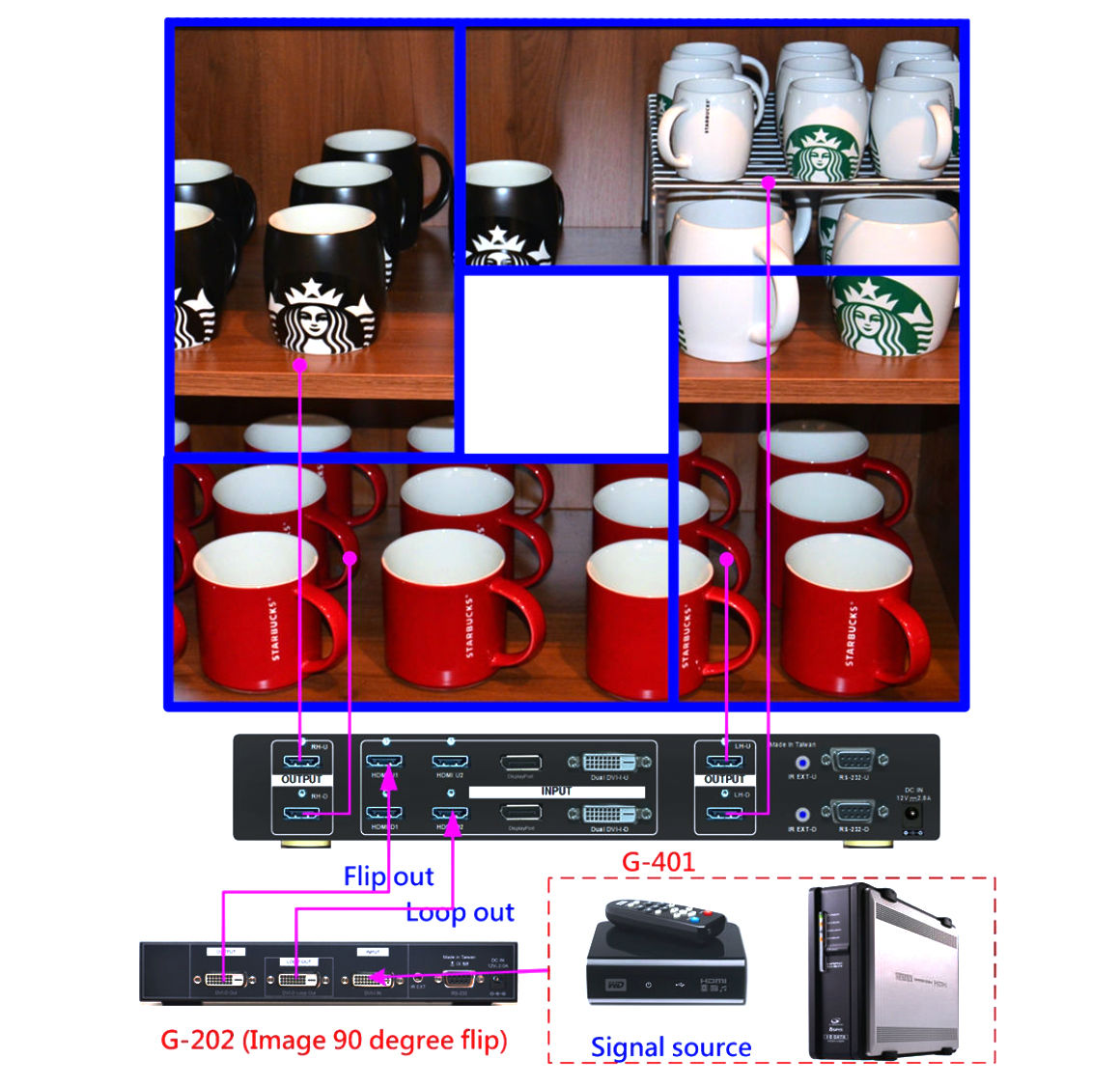

• Work with other GeoBox for any irregular video wall with any rotation angle.
• Big display TV game from PlayStation or Xbox.
• Video wall with flexible display profile settings, for instance: switching among single/dual/triple/quad signal source displays, different aspect ratio content display without blanking borders.
