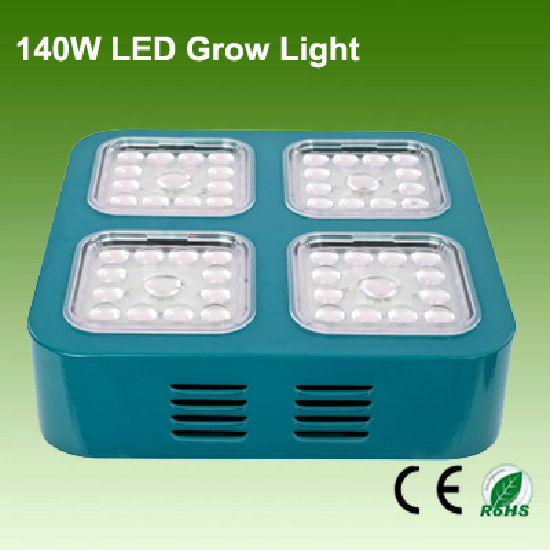

LED Grow Light 140W  (Module)

special：

【1】1 minute for disassembling and reassembly
without any special tools and/or expertise

【2】Unique technique of standard module design.plug-and-play
Key components LED optic lens,PCBs,heat sinks and power supplies are designed into standard modules respectively,so as to achieve PNP and inter-changeable within H-4 SP series of product
【3】Brand-new idea, H-4 all-round LED optic lens
Magnifier type LED lens,stronger light penetration,give out full energy of Cree LEDs snap-close installation,security and convenient.

【4】Light using CREE LED chips
8pcs*3w CREE LED chips in the center of every light-module to ensure super light efficiency

【5】Air-circulation system design
To obtain the ideal CO2/O2 ratio considerably improving the growth
【6】Latest power supply with low frequency pulse increases 15% of the plants growth.

【7】Exclusive design:checking and indicating defects automatically
Indicator LED could check the defects automatically,when the indicator light is on, this would works unnormally this would need to be changed

【8】Conveniently cross-connection of H-4 products with Daisy-chain power cord design.



Parameter

Input Voltage: AC100～240V
Total Power: 140W
Frequency Range: 50～60Hz
Working Temperature: -20℃～+40℃
LED Qty: 80pcs*3w
LED Working Life-span : 50000H
PAR Value/300mm: 1192.2Umol
IP Grade: IP42
product size /mm: L280*W280*H70
N/W: 2.8KG
package size /mm: L350*W340*H180
G/W: 3.8KG
