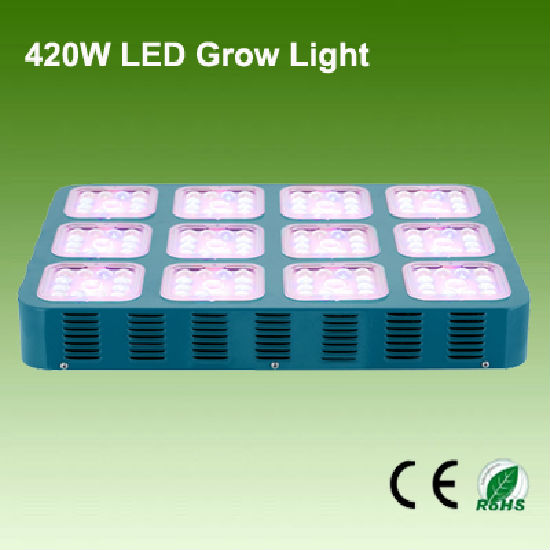

LED grow light 420W (module)

Special：

【1】1 minute for disassembling and reassembly
Without any special tools and/or expertise

【2】Unique technique of standard module design. Plug-and-play
Key components LED optic lens, PCBs, heat sinks and power supplies are designed into standard modules respectively, so as to achieve PNP and inter-changeable within H-4 SP series of product
【3】Brand-new idea, H-4 all-round LED optic lens
Magnifier type LED lens, stronger light penetration, give out full energy of Cree LEDs snap-close installation, security and convenient.

【4】Light using CREE LED chips
8pcs*3w CREE LED chips in the center of every light-module to ensure super light efficiency

【5】Air-circulation system design
To obtain the ideal CO2/O2 ratio considerably improving the growth
【6】Latest power supply with low frequency pulse increases 15% of the plants growth.

【7】Exclusive design: checking and indicating defects automatically
Indicator LED could check the defects automatically, when the indicator light is on, this would works unnormally this would need to be changed

【8】Conveniently cross-connection of H-4 products with Daisy-chain power cord design.



Parameter
• Input voltage: AC100～240V
• Total Power: 420W
• Frequency Range: 50～60Hz
• Working Temperature: -20℃～+40℃
• LED Qty: 240pcs*3w
• LED Working Life-span : 50000H
• PAR Value/300mm: 3576.2Umol
• IP Grade: IP42
• Product size /mm: L540*W410*H70
• N/W: 7.1KG
• Package size /mm: L650*W500*H160
• G/W: 8.4KG
