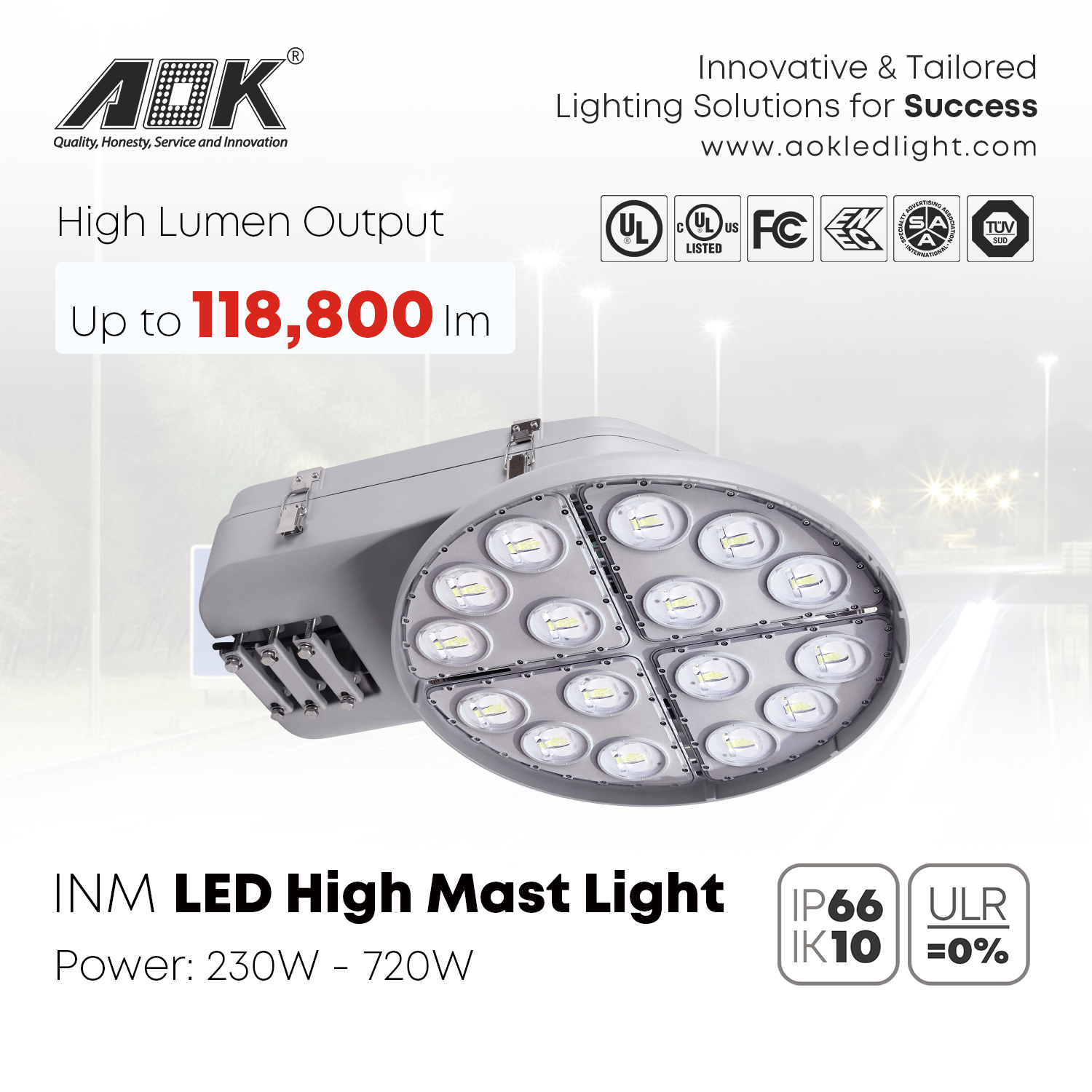

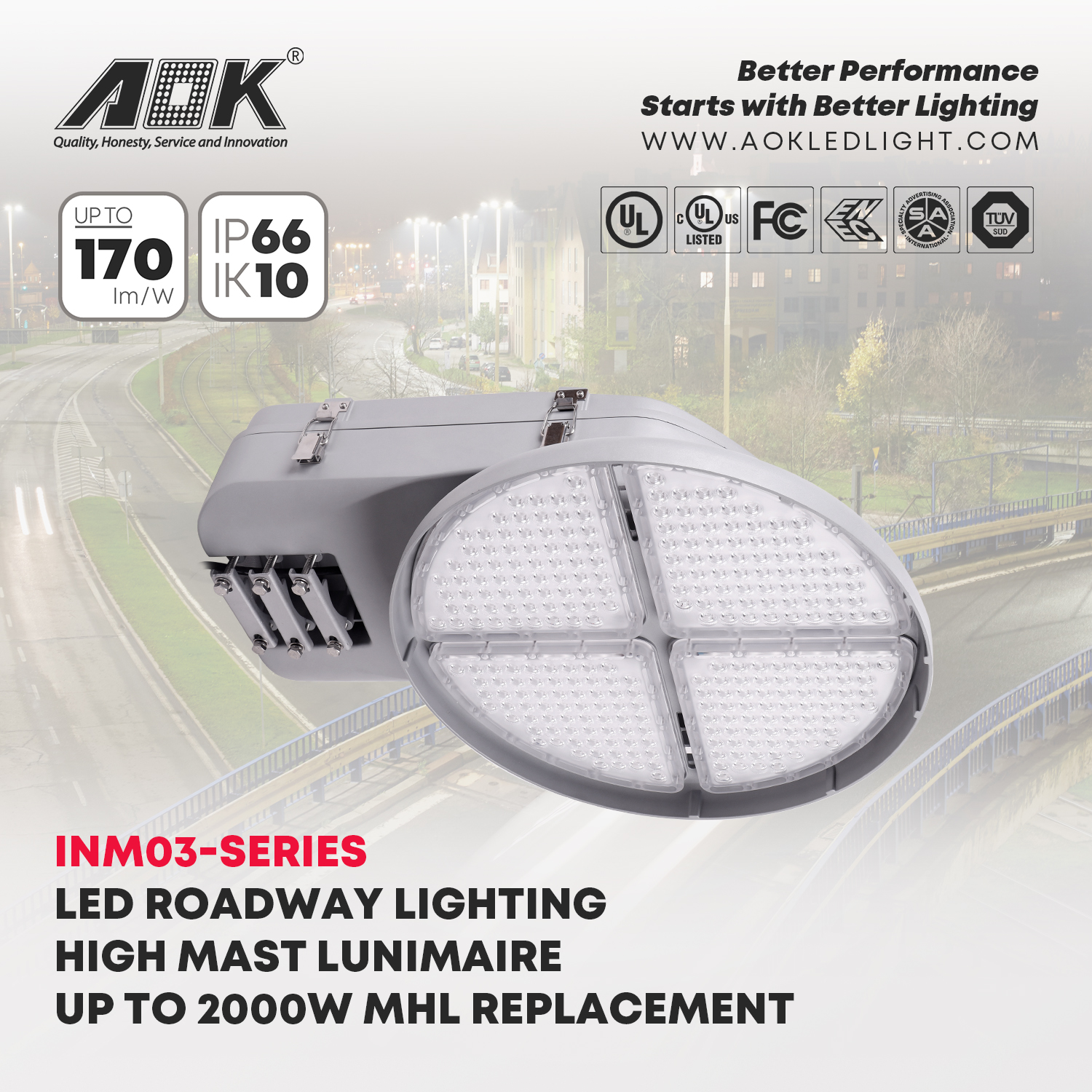

Introducing the INM LED High Mast Light—ideal for expressways, freeway interchanges, and expansive area applications. This high-performance 230W-720W LED high-mast light features advanced reflective optics that enhance illumination efficiency while reducing glare. Compared to traditional HID fixtures, it offers significant energy savings and lower operating costs. Upgrade your highway lighting system with our top-of-the-line 230W-720W LED high-mast light for a durable, cost-effective solution.

Features

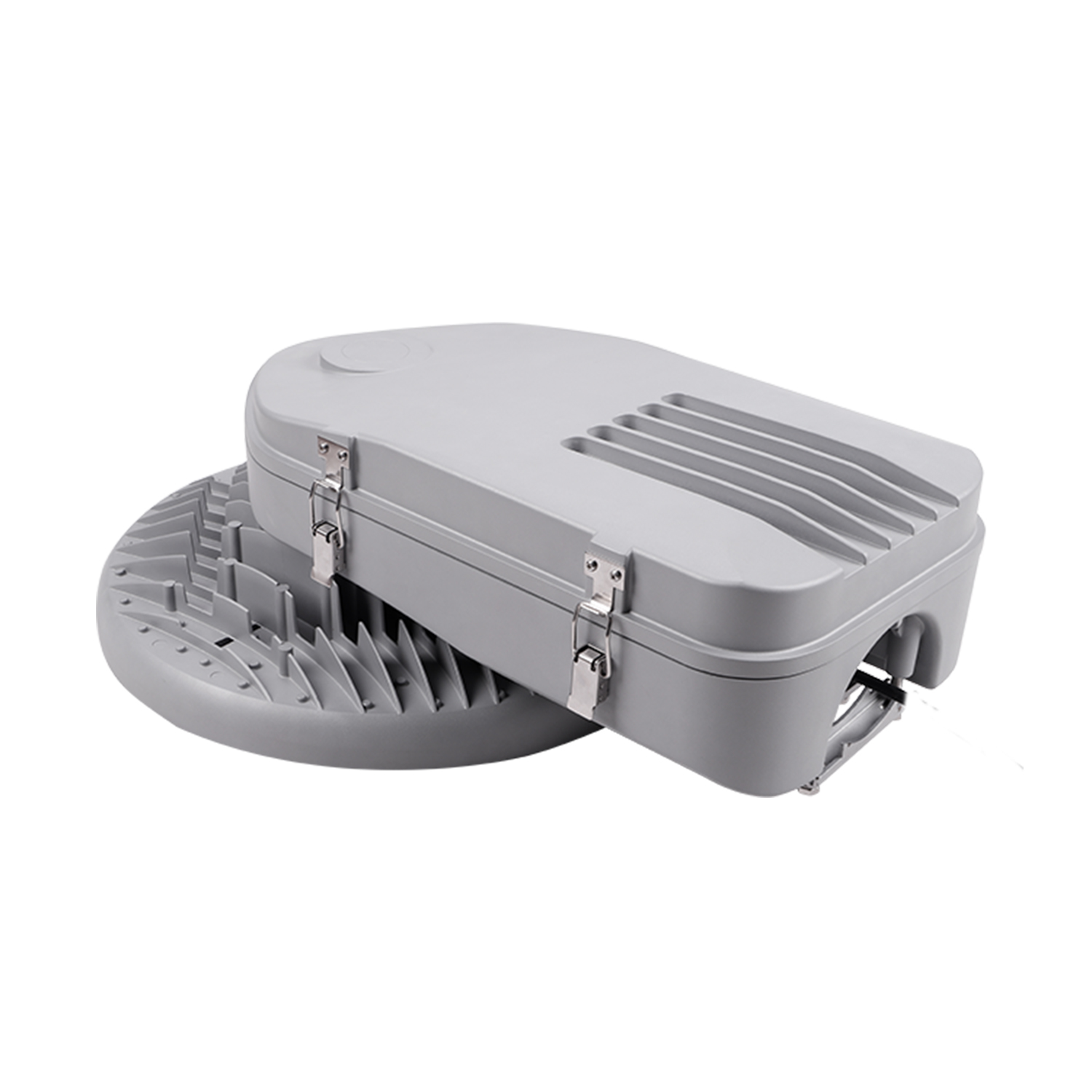

The INM high-mast luminaire stands out with its smart lighting system, lid-latch driver box design, and ease of installation and maintenance. Its rugged, weather-tight construction and 3G vibration rating ensure reliability, while the corrosion-resistant polyester powder coating extends its lifespan. The PMMA matrix design and concave light-retaining wall optimize light distribution and minimize excess light. With an IP66 protection grade and IK10 impact resistance, INM LED high-mast light is built for durability and performance.

Optical/Electrical Specifications

  ✔ Light Distributions: 15D, 30D, 60D, T2M, T3M, T4M, T5

  ✔ Operating Temperature Range: -40°C to 50°C (-40°F to 122°F)

  ✔ Dimming: 1-10V dimming driver included

  ✔ Voltage Options: 100-277V AC, 50/60Hz standard; 347V/480V, 50/60Hz optional

  ✔ Reflective Technology: Minimizes glare and optimizes application efficiency with high-brightness LEDs

  ✔ Testing: LM-79 compliant, following IESNA standards

  ✔ Color Temperatures: 3000K, 4000K, 5000K, 5700K, 6500K

  ✔ CRI Options: Minimum CRI of 70, with 80 and 90 available

Recommended Uses

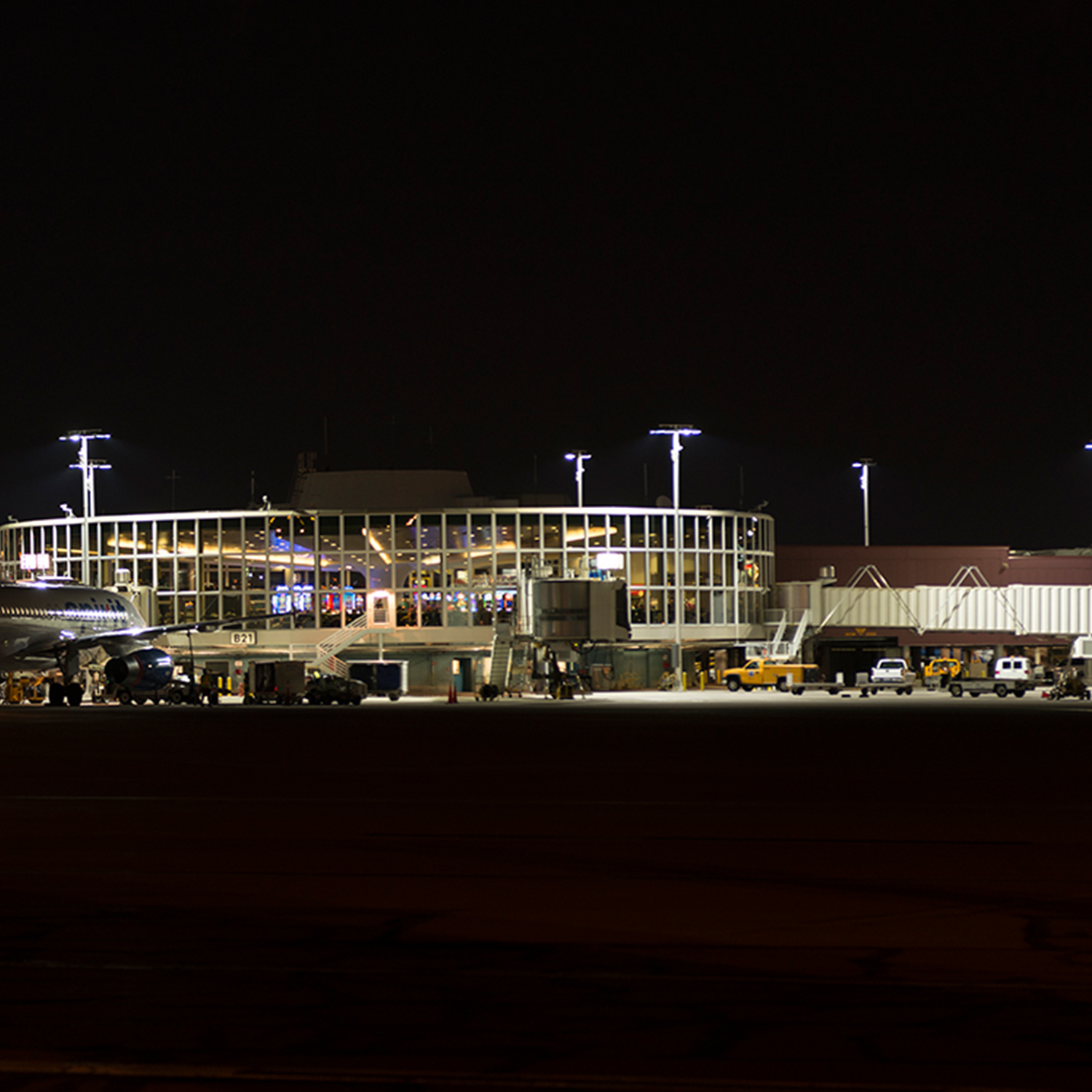

  · Airport lighting

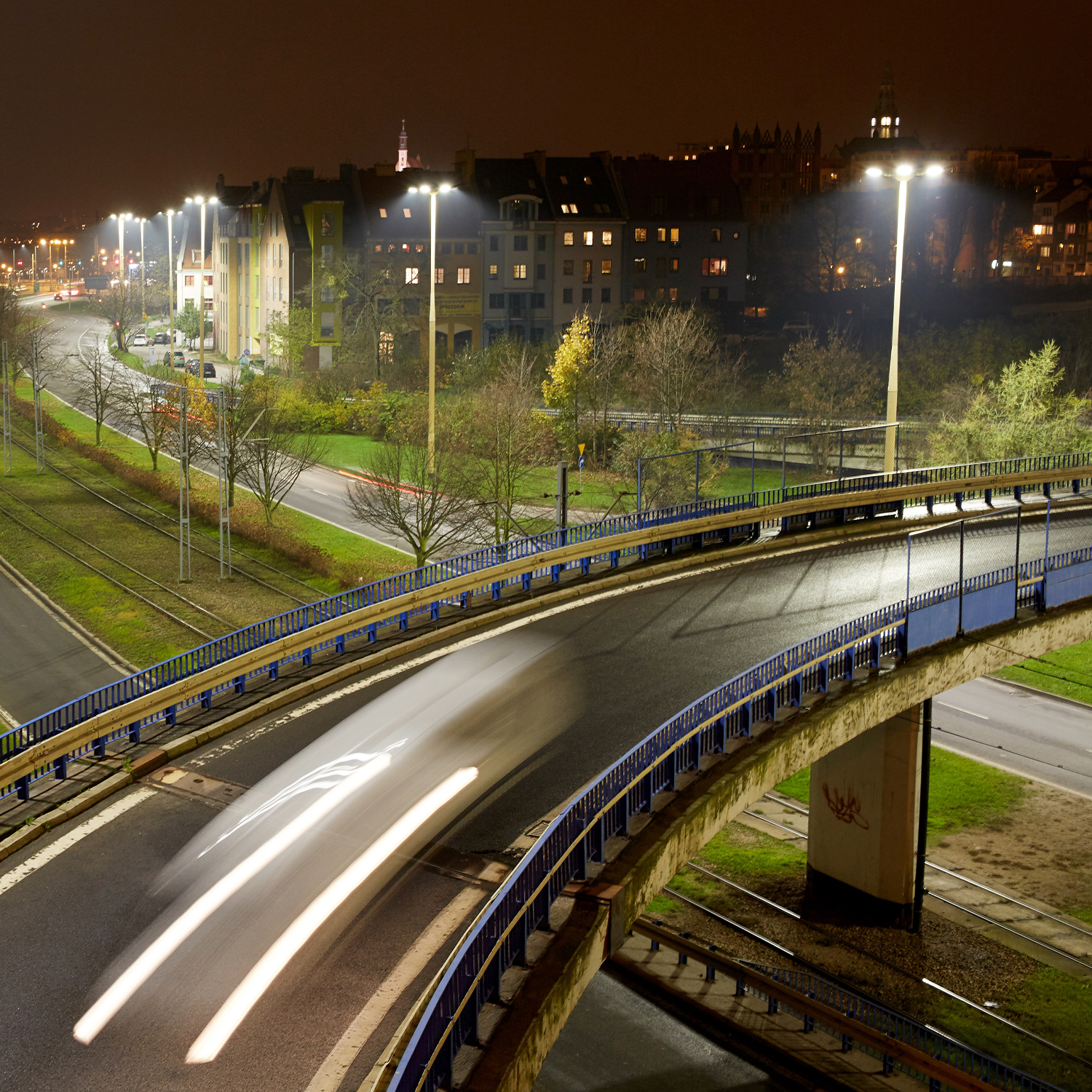

  · Expressways and freeway interchanges

  · Port facilities

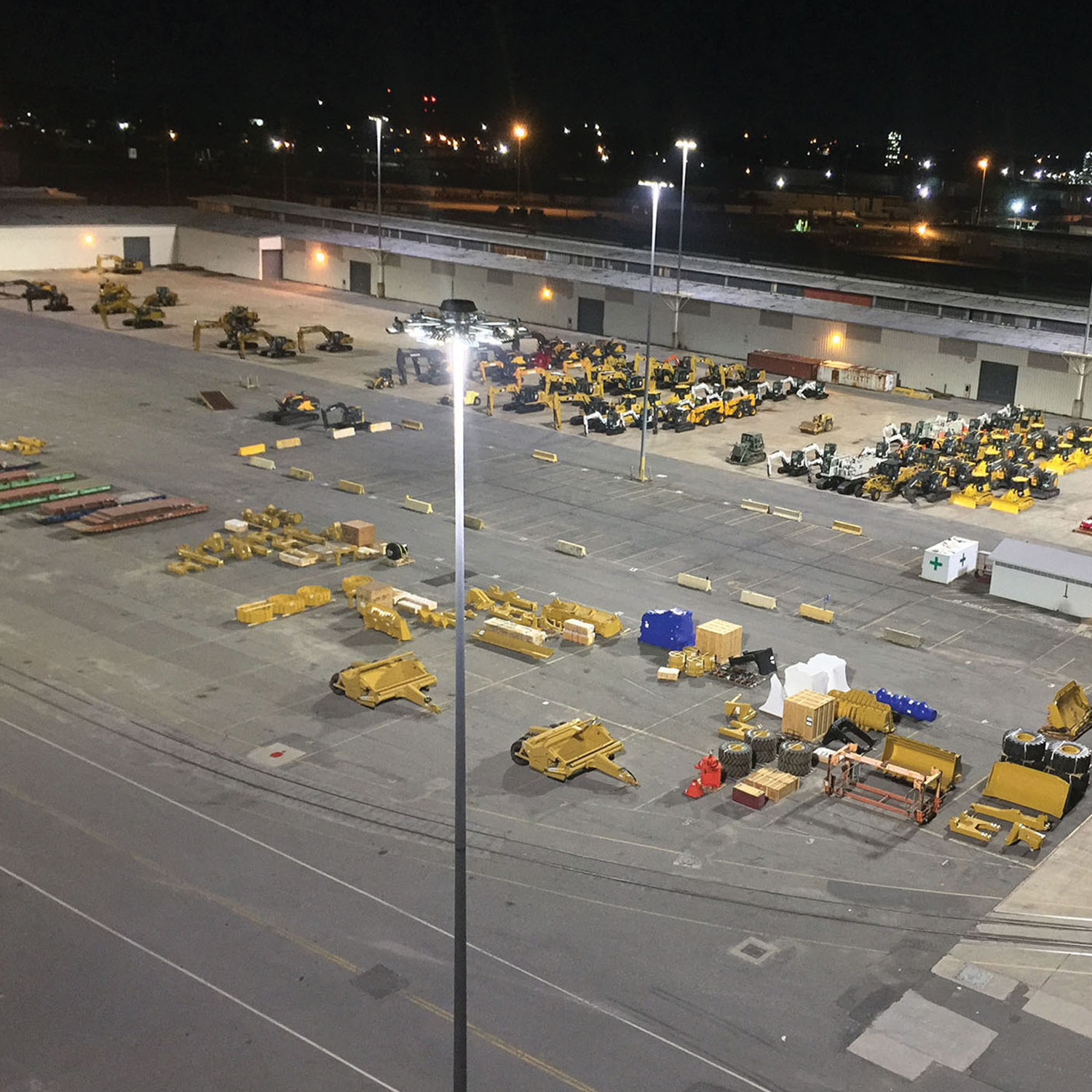

  · Trailer/container yards and rail yard operation areas

Certifications/Listing

  · UL/cULus/FCC/ENEC/SAA/TUV/QCC

Warranty

  · Standard 5-year warranty; optional 10-year warranty available. Contact AOK sales for details.
