This STC36 LED Lighting Driver Series features high-performance, UL-listed drivers built for damp-location lighting fixtures in low-temperature environments. The series also integrates advanced temperature control and emergency backup capabilities to ensure consistent performance in extreme conditions.

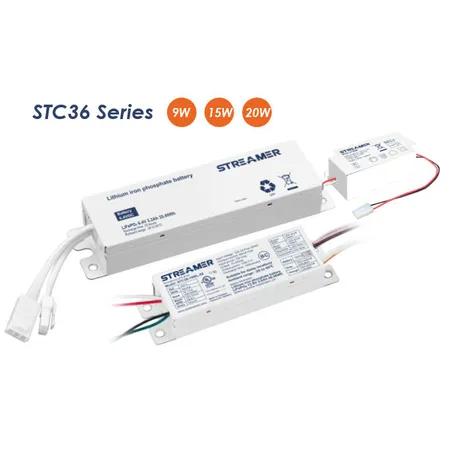

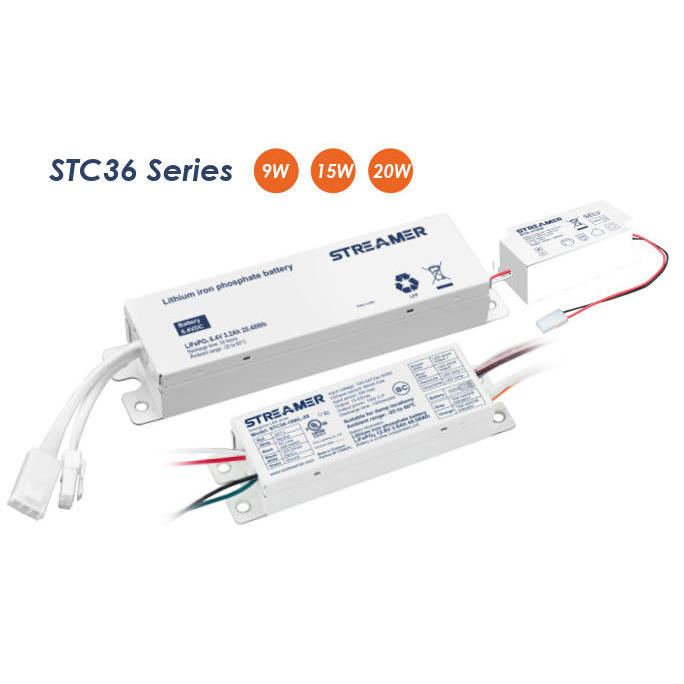

LED Lighting Driver — the STC36 Series

• Certifications: UL-listed for damp environments.
• Compact design suitable for narrow installation spaces.
• 5-year warranty.

Temperature Management

• Built-in heating and temperature control device for reliable battery operation.
• Equipped with an independent temperature controller for low-temperature environments.
• Operating temperature: -4°F to 140°F (-20°C to >60°C).

Battery and Emergency Features

• Integrated emergency kit with combined driver and battery pack.
• External high-capacity, long-life LFP (LiFePO₄) battery pack.
• Includes rest mode for extended storage life.
• Overcharging and discharging protection.
• Designed for a service life of up to 8 years under normal operating conditions.

Series Models

• STC36-09WL-55
• STC36-09WL-300
• STC36-15WL-55
• STC36-15WL-300
• STC36-20WL-55
• STC36-20WL-300
