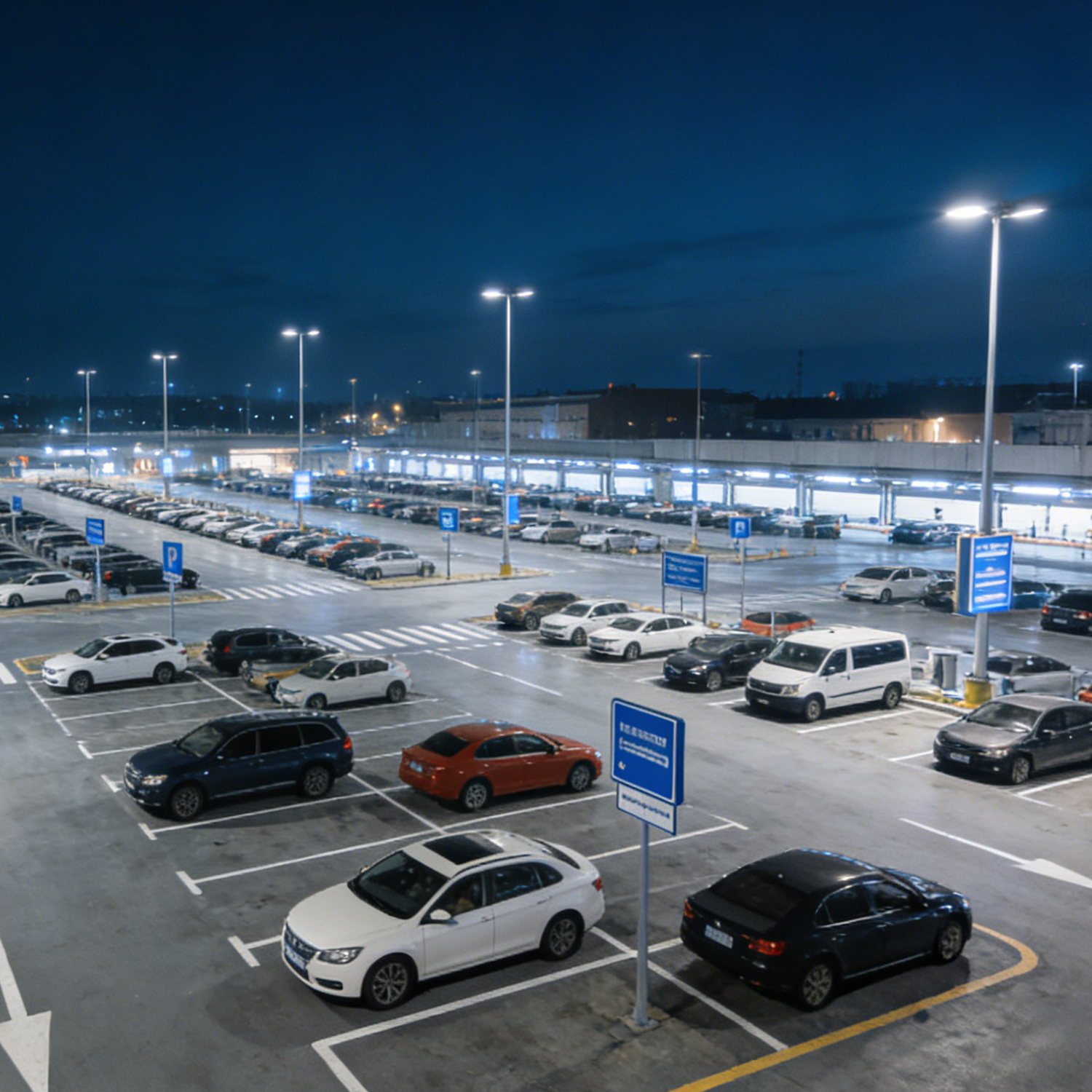

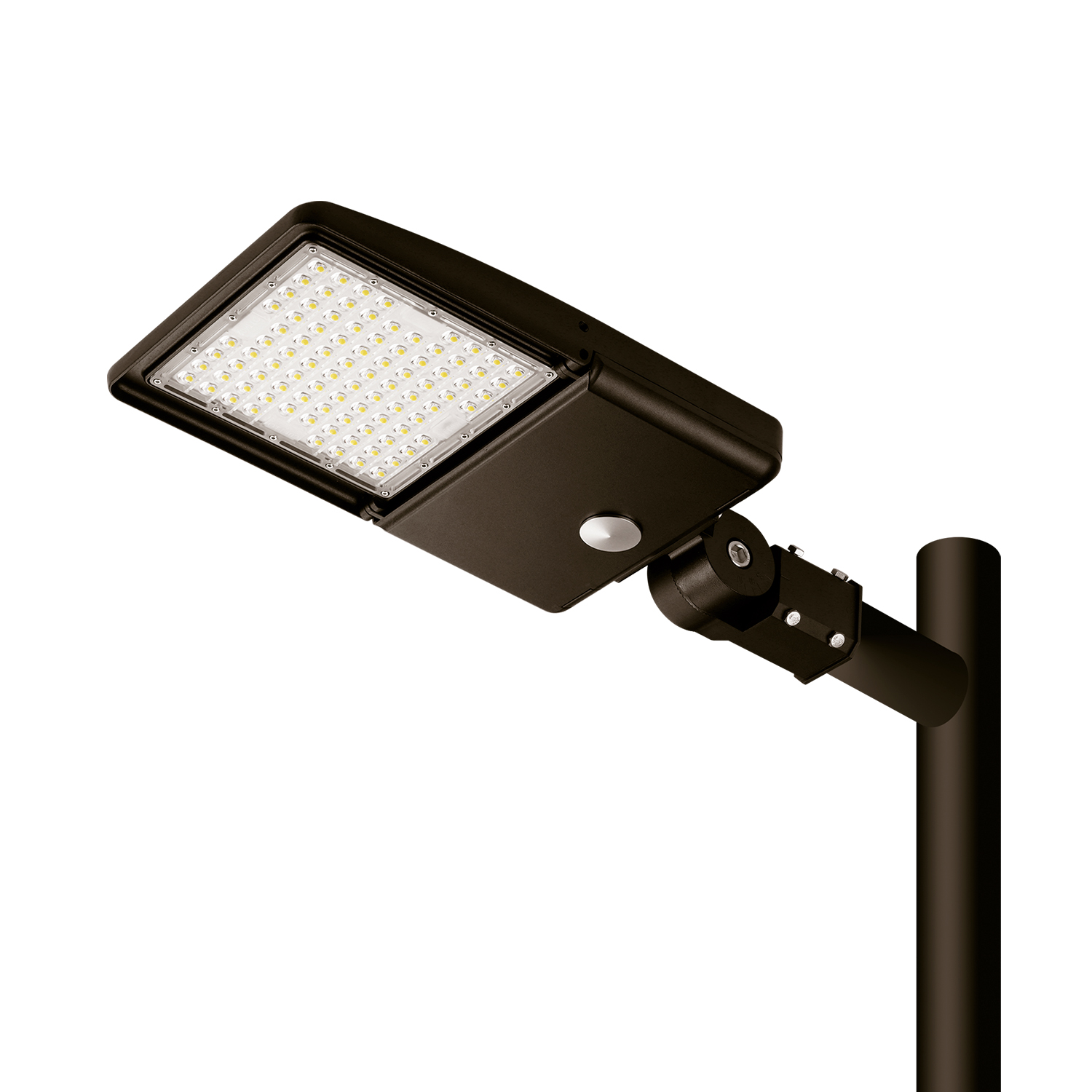

Enhance your commercial or industrial lighting with AOK 75W-420W parking lot and area lighting solutions. As a leading LED lighting provider, AOK offers the OT Series, which includes area lights, shoebox lights, street lights, and LED sports lights. Delivering up to 175lm/W, these fixtures offer bright illumination, cool operating temperatures, and extended lifespans. The die-cast aluminum alloy housing with external fins ensures superior heat dissipation and corrosion resistance. Ideal for parking lots or tennis courts, the OT Series provides durable, energy-efficient, and high-quality lighting solutions.

Features

Our fixtures are expertly designed for parking lots, streets, and tennis courts, featuring professional light distribution and anti-glare technology. With a BUG Rating of U=0, they minimize light pollution while maximizing illumination efficiency. The rotatable optics offer flexible light distribution, and an optional low-glare shield further reduces glare. These features make the OT Series perfect for achieving high-quality, efficient lighting in any outdoor space.

Electrical Specifications

  ✔ Standard universal voltage (100-277V AC), with 50/60Hz; 347-480V option

  ✔ L90B10 rating: Over 100,000 hours at 25°C

  ✔ Dimming options: 0-10V, PWM, Timer with 3 modes, Dim-to-Off with standby power ≤0.5W

  ✔ High-efficiency driver: Up to 93.5%, minimum 87.5%

  ✔ Surge protection: 6kV line-line, 10kV line-earth

  ✔ Options available for photocell, PIR sensor, and 20kV SPD

  ✔ Operating temperature range: -40°C to 50°C (-40°F to 122°F)

Construction

  ✔ Efficient heat dissipation layer

  ✔ LED light source on PCB board

  ✔ Die-cast aluminum main housing, IP66 rated

  ✔ Space for 5/7-pin receptacle, compatible with photocell sensors and smart systems

  ✔ Tool-free access panel for driver maintenance

  ✔ Rotatable optical-grade PC lenses available in Type III/IV/V

  ✔ Top-level 1-10V dimmable driver, with 347-480V option

  ✔ Tool-free driver access panel, compatible with Watt Stopper FSP sensor

  ✔ Built-in surge protection device

  ✔ Bracket access panel for wiring

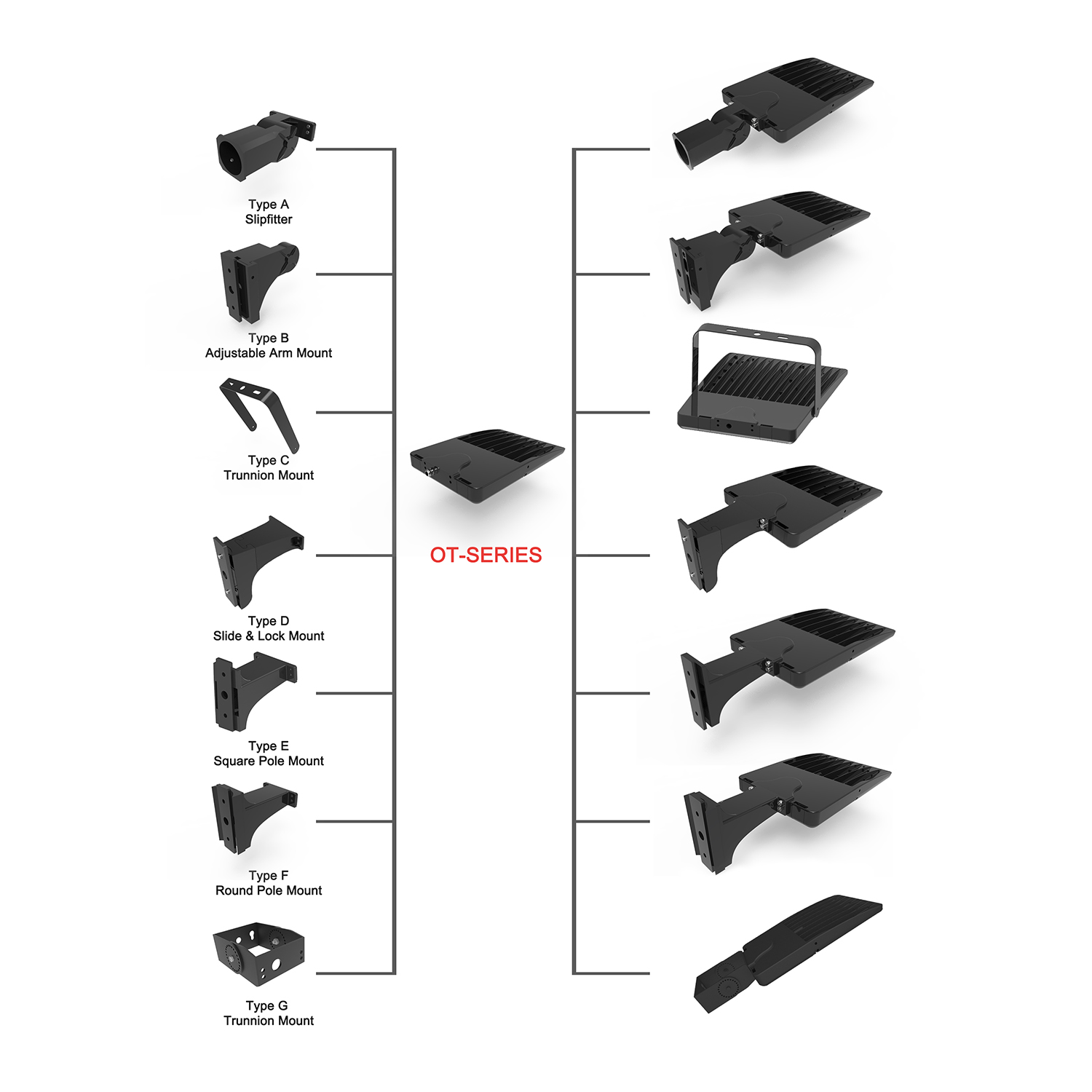

  ✔ Exchangeable brackets for round/square poles, with optional yoke and trunnion brackets
