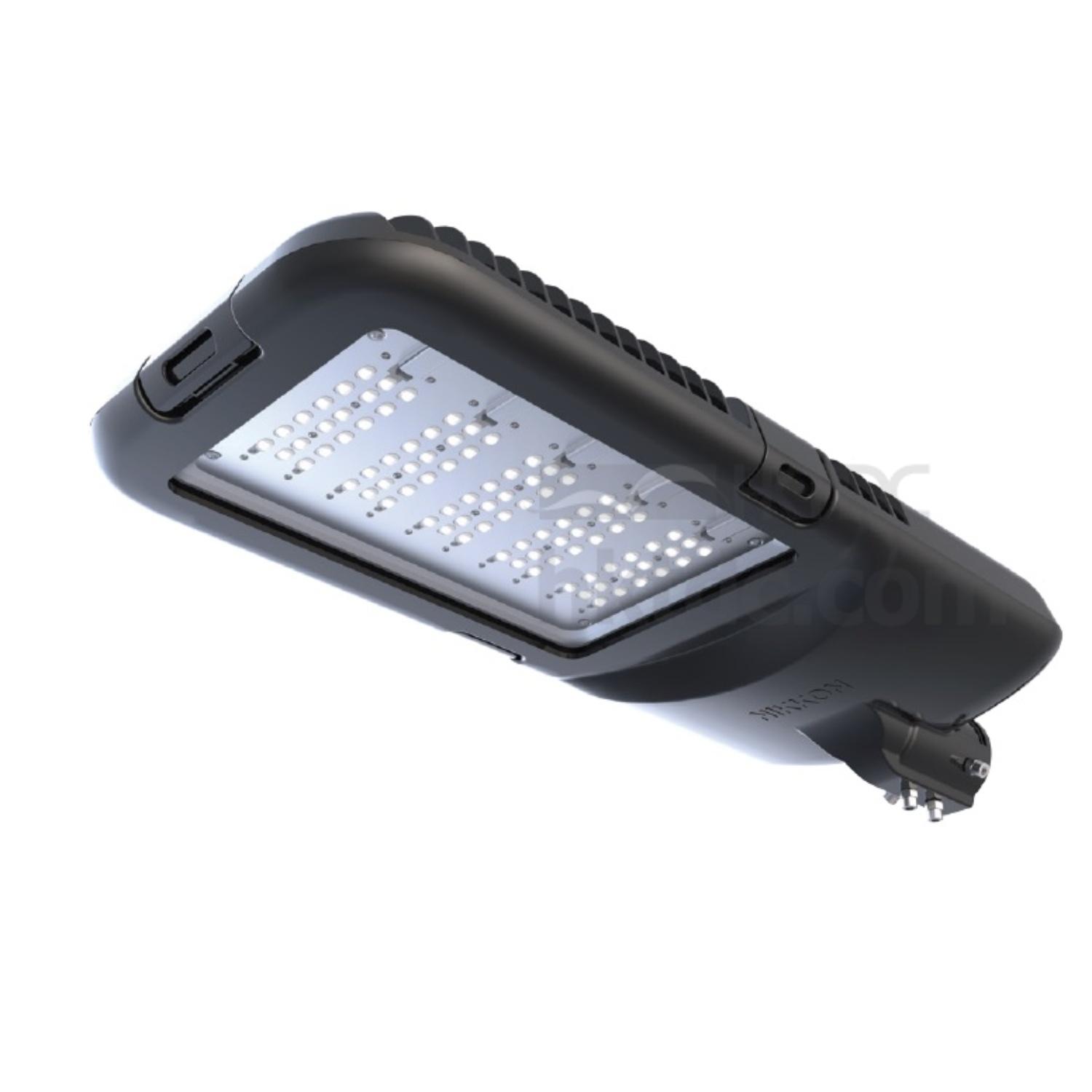

LED Street Lantern

產品型號:

S533

品牌名稱:

NIKKON

付款方式:

T/T in advance, irrevocable L/C at sight

最低訂購數量:

No MOQ

電壓(伏):

220-240

光源:

發光二極管照明燈泡

主體物料:

Marine Grade Non-Corrosive Aluminium

包含燈泡:

包含

防護等級:

IP66

可定制:

是

描述

聯絡供應商

Luminaire Technical Specifications
- System Power: S533 - 90W
  - S533 - 120W
  - S533 - 150W
  - S533 - 170W
- Fitting Material: Marine Grade Non-Corrosive Aluminium
- Fitting Color: Dark Gray, Akzo Nobel RAL7012
- Optical Cover: 95% Transparency Tempered Glass
- Ingress Protection: IP66
- Impact Protection: IK08
- Voltage: 220 ~ 240 Vac 50 / 60Hz
- Electrical Safety Class: Class I
- Operating Temperature: -30 ~ +450C
- Surge Protections: 10KV, 20KA
- Installation: ø48 mm & ø60 mm
- Net Weight: S533 - 11 kg
LED Module Specifications
- Color Temperature: 3000K Warm White
  - 4000K Neutral White
  - 5000K Cool White
- Color Rendering Index >70(CRI)
- L70: 100,000 Hrs @ 250C
- PCB Material: Ceramic (Alumina Substrate)
- PCB Trace Silver Conductor (Ag)
- SMD Connector WAGO 2060 Series
Compliance Standard
- LED
  - LM 80
- Driver CE
  - EN55015
  - EN61000
  - EN61547
- SPD IEC 61643-11
  - UL 1449
- Luminaire LM 79
  - EN60598-1
  - EN60598-2-3 EN62471
  - EN62493
  - EN61000-3
  - EN61547
Optional Features
- Driver
  - Constant Current
  - Time Control
  - 1-10V Dimming
  - Full Programmable
- Control System
  - Intelligent Light Control System with GPS
- Sensor
  - NEMA Photocell
Application
- Rural Roads
- Urban Roads
- Express Ways
- Car Parks
- Roundabouts
- Motorways
- Municipal Areas
