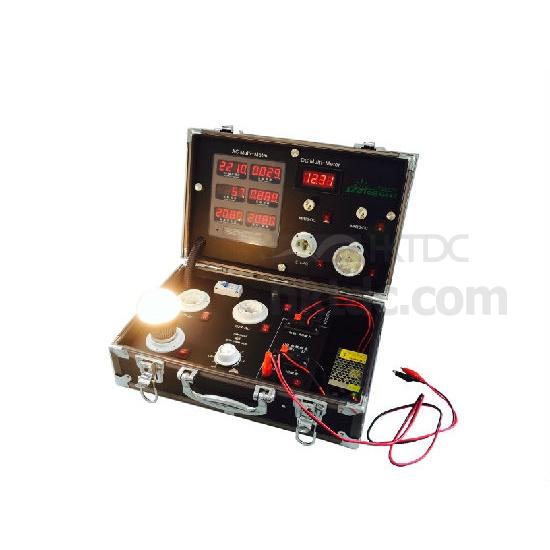

LED Test Kit
生產所需時間:
10 日
產品型號:
LTC-3521-7P
品牌名稱:
LED test case
顏色:
Black
尺寸:
35 x 21 x 14
港口:
Shenzhen
付款方式:
T/T
最低訂購數量:
1 piece
是否有包裝:
有
是否可訂造:
是
描述
聯絡供應商
描述
Product Description
Material: Aluminum, MDF,Acrylic ,etc
Meter: AC meter, DC meter
Socket: GU10, MR16, E27/26, G4, G9, G5.3 etc
Accessory: AC 220V output wiring clamp, DC 12V output wiring clamp, Universal
Function
1.Test and demo led products 2.Available for AC and DC 3.Dimmable
4.External function
Specification
1. The case internal circuit: strictly distinguish for AC and DC; AC socket (- AC) interface, can test the electric parameters as follows: voltage, current, power, power factor, annual power consumption (10 hours /per day ) and frequency
2. DC part of the parameter display: DC lamp holder (- DC) interface, data display on the DC POWER , such as MR16. Dc voltage in the box internal is transformed into 12 v output to light sit interface.
3. Parameters for voltage, current, power, power factor, annual current consumption
4. Dimmable: Dimmable engine and Dimmable switch; there are two positions for dimmable switch-DIMMBALE and NON-DIMMABLE.
5. three wire clamps (2 PCS AC output and DC 12 output) and one AC output universal socket. It’s convenient for external power source. Every lamp socket has a unique switch and mark, which is convenient for identification and control.
6.One storehouse is for small things; 3 foundation plates are to protect the case; a pull rode is convenient for moving.
Meter( function part)
AC and DC multi-function meter instruction
Index parameters AC Alternating current DC Direct current Precision Resolution
Voltage measuring range 0.2~300VAC 0.2~400VDC ±(0.2%reading+0.1V) 0.01V
Current measuring range 1mA~5000mA 1mA~5000mA ±(0.2%reading+0.1mA) 1mA
Power measuring range 0.1~1500W 0.1~2000W ±(0.2%reading+0.1w) 0.01w
Power factor measuring range 0~1.000 No power factor ±0.005 0.001
Frequency test range ±0.01Hz No frequency ±0.01Hz 0.01Hz
Power supply 86~265VAC 50/60H 110~370VDC -- ---
The ambient temperature： -20~+55℃ Isolation voltage： 1500VAC，1 Minute Anti surge 2kV
Static interference 8kV Flow capacity： Continuous current 10A，Short-current 50A，1 second Anti burst interference 2kV
Packaging and shipping
Packing: Paper Cartons，with EPE foam holders inside，suitable for international transportation.
Product size: 35*21*14 (Unit: cm)
CTN size: 45*32*19
Net weight: 10KG
Gross Weight: 13KG
Volume weight: 140*25*18/5000
Service and Certificate
Our products guarantee 3 years
Passed CE and ROSH
Material: Aluminum, MDF,Acrylic ,etc
Meter: AC meter, DC meter
Socket: GU10, MR16, E27/26, G4, G9, G5.3 etc
Accessory: AC 220V output wiring clamp, DC 12V output wiring clamp, Universal
Function
1.Test and demo led products 2.Available for AC and DC 3.Dimmable
4.External function
Specification
1. The case internal circuit: strictly distinguish for AC and DC; AC socket (- AC) interface, can test the electric parameters as follows: voltage, current, power, power factor, annual power consumption (10 hours /per day ) and frequency
2. DC part of the parameter display: DC lamp holder (- DC) interface, data display on the DC POWER , such as MR16. Dc voltage in the box internal is transformed into 12 v output to light sit interface.
3. Parameters for voltage, current, power, power factor, annual current consumption
4. Dimmable: Dimmable engine and Dimmable switch; there are two positions for dimmable switch-DIMMBALE and NON-DIMMABLE.
5. three wire clamps (2 PCS AC output and DC 12 output) and one AC output universal socket. It’s convenient for external power source. Every lamp socket has a unique switch and mark, which is convenient for identification and control.
6.One storehouse is for small things; 3 foundation plates are to protect the case; a pull rode is convenient for moving.
Meter( function part)
AC and DC multi-function meter instruction
Index parameters AC Alternating current DC Direct current Precision Resolution
Voltage measuring range 0.2~300VAC 0.2~400VDC ±(0.2%reading+0.1V) 0.01V
Current measuring range 1mA~5000mA 1mA~5000mA ±(0.2%reading+0.1mA) 1mA
Power measuring range 0.1~1500W 0.1~2000W ±(0.2%reading+0.1w) 0.01w
Power factor measuring range 0~1.000 No power factor ±0.005 0.001
Frequency test range ±0.01Hz No frequency ±0.01Hz 0.01Hz
Power supply 86~265VAC 50/60H 110~370VDC -- ---
The ambient temperature： -20~+55℃ Isolation voltage： 1500VAC，1 Minute Anti surge 2kV
Static interference 8kV Flow capacity： Continuous current 10A，Short-current 50A，1 second Anti burst interference 2kV
Packaging and shipping
Packing: Paper Cartons，with EPE foam holders inside，suitable for international transportation.
Product size: 35*21*14 (Unit: cm)
CTN size: 45*32*19
Net weight: 10KG
Gross Weight: 13KG
Volume weight: 140*25*18/5000
Service and Certificate
Our products guarantee 3 years
Passed CE and ROSH
