LTE VoLTE Call Wireless Telephone | 電話

山東卡爾電氣股份有限公司

查詢

比較及批量查詢

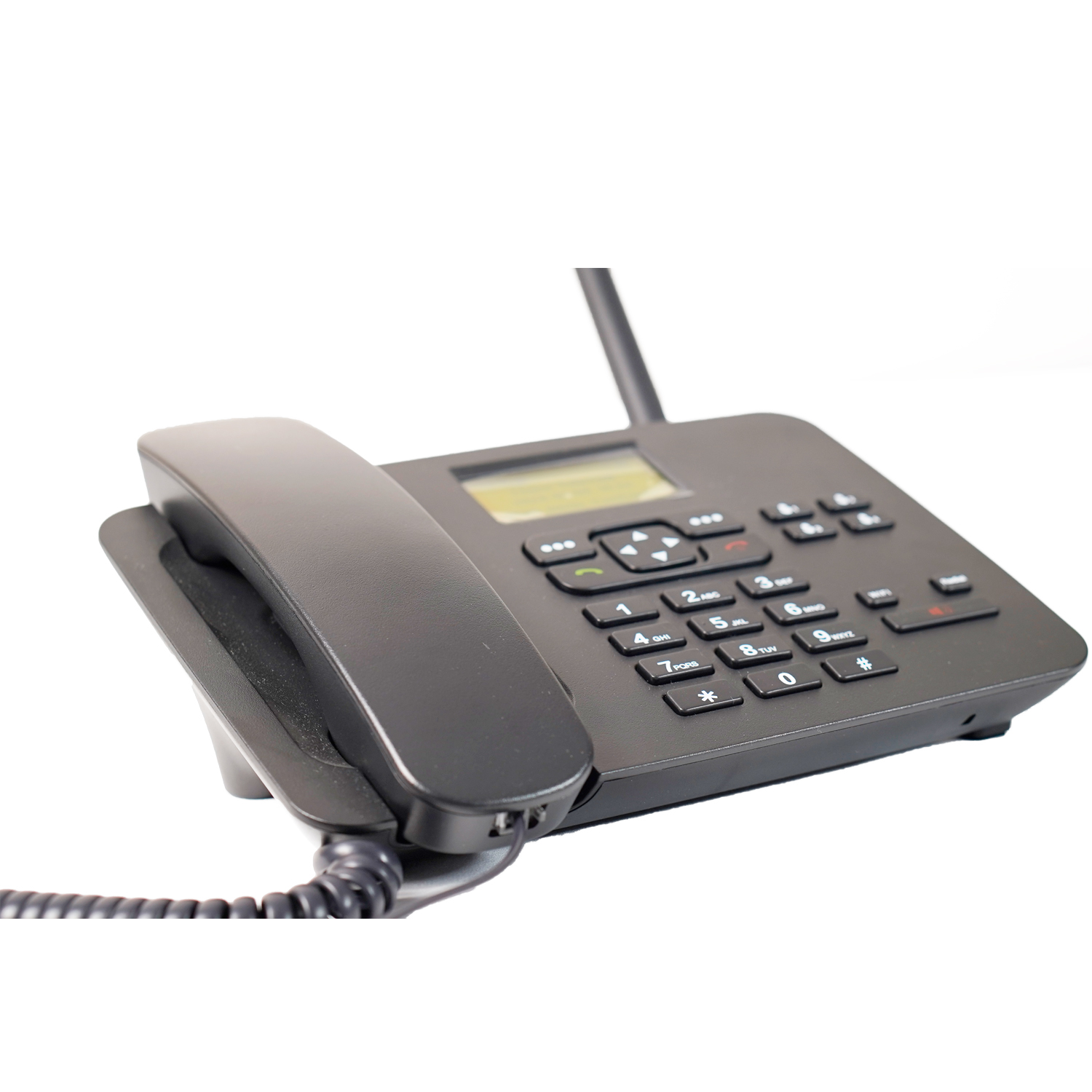

LTE VoLTE Call Wireless Telephone

生產所需時間:

60 日

運送方式:

Air shipment, Sea shipment, Express shipment

品牌:

ODM/OEM

型號編號:

KT37

尺寸:

207.5mm×177mm×80.5mm

重量:

0.57KGS

電源類型:

充電式

Frequency Band:

GSM B2/B3/B5/B8 WCDMA B1/B2/B5/B8 TDD B38/B40/B41/(100M) FDD B1/B2/B3/B5/B7/B8/B28A/B28B

Internal Memory:

128MB ROM＋48MB RAM

USB port :

Type-C USB 2.0

Antenna Interface:

TNC antenna

描述

證書及文件

聯絡供應商

General Features
Network type	FDD,TDD,WCDMA,GSM
Band class	GSM B2/B3/B5/B8 WCDMA B1/B2/B5/B8 TDD B38/B40/B41/(100M) FDD B1/B2/B3/B5/B7/B8/B28A/B28B
Maximum Output	FDD/TDD： Power Class 3( 23±2.7dBm) WCDMA : Power Class 3 (+24dBm +1/-3dBm) GSM/GPRS 850MHz/900MHz: Power Class 5 (+33dBm ±2dBm) GSM/GPRS 1800MHz/1900MHz: Power Class 0 (+30dBm ±2dBm)
Baseband	Unisoc T107
Data speed	GSM CS:UL 9.6kbps/DL 9.6kbps GPRS:171.2kbps WCDMA:UL 11.5Mbps/DL 42.2Mbps FDD:UL 5Mbps/DL 10Mbps
Sensitivity	FDD/TDD LTE:≤-97.3 dBm(QPSK PREFSENS,throughput≥95%) WCDMA850/WCDMA900/WCDMA1900/WCDMA2100 : ≤-108dBm GSM850/EGSM900/DCS1800/PCS1900 : ≤-108dBm
Internal Memory	128MB ROM
RAM	48MB RAM
Voice code	FR/EFR/HR/AMR
AMR Code	Support
SIM Tool Kit (UTK) Functions	Support
SIM card single / double card	Single
Language.	English, Chinese, Portuguese etc
Input method	CSTAR,English Intelligent Text Input
SMS Storage capacity.	B/W 100+USIM Color 200+USIM
Contact capacity	500+USIM
Group SMS	Support 20
Alarm	Support
Clock	Support
Calculator	Support
DTMF	Support
Auto Redial	Not Support
Speed dial	Support
Caller ID	Support
Backlight Time	Support
Call duration	Support
Bluetooth	Not Support
LCD	Black white 128*64piexls STN
LCD backlight adjustment	Support
Programmable ring volume control.	Support
Programmable voice volume control	Support
Hands- free mode	Support
Speaker volume control in hands free operation.	Support
Key tone volume adjustments	Support
Missed calls & incoming message indication on display	Support
Network Dependent Features
Call Forwarding	Support. Network Dependent.
Call wait/call hold	Support. Network Dependent.
Conference call	Support. Network Dependent.
Call barring	Support. Network Dependent.
Treatments of calls	FDD/TDD LTE:≤-97.3 dBm(QPSK PREFSENS,throughput≥95%) WCDMA850/WCDMA900/WCDMA1900/WCDMA2100 : ≤-108dBm GSM850/EGSM900/DCS1800/PCS1900 : ≤-108dBm
Supports VOLTE (HD Voice Calling service on 4G LTE)	Support
Display
Key digit input display	Support
Time Display (Date, Month, Year and Day of the week).	Date, Month, Year
Operator name display	Support
Display icon:
RSSI Indication	Support
No Service/ Service Indication	Support
Voice call Indication	Support
Power status indicator	Support
Alarm Indication	Support
New SMS Indication	Support
Voice Message Indication	Support
Tone and Sound Generation
Tone type	MIDI
Busy tone	Support
Ringer tone	Support
Incoming call alert	Support
Ring tone volume adjustments	Support
Ring tone selection	Support
SMS Receive Alert	Support
Keypad tone	Support
Lock function
Lock Cell	Support
Lock Operator	Support
Lock Pin / SIM Card	Support
Tools
Download tool	Support
Configuration tool	Support

Company profile

Founded in 1996
100+ R&D engineers, hundreds of patents
Self-owned SMT & Assembly lines
Leading designer and manufacturer of FWPs, Android desk phones, CPEs, Outdoor payphones, Electronic student ID cards, Landline phones
Long-term partnership with China Mobile, China Unicom and China Telecom
Products being shipped to more than 50 overseas channel buyers and operators
