LVS series:Non-isolated Flicker Free UFO LED Drivers
應用:
High bay light,industry light
品牌:
SUNCOM
特性:
INPUT VOLTAGE: 100-277V OUTPUT VOLTAGE: 100-180V/180-260V THD＜10%/PF＞0.95/common mode residual voltage＜3KV SURGE:6/10KV IP65 WARRANTY: 5 years
光源:
發光二極管照明
電源類型:
交流电
型號編號:
LVS-120W-180A,LVS-150W-180A,LVS-200W-180A,LVS-240W-180A
尺寸:
126*56MM,127*60MM
是否可訂造:
可以
描述
聯絡供應商
描述

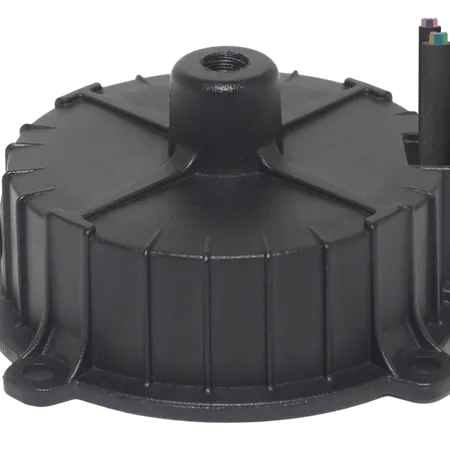

Non-isolated Flicker Free UFO LED Driver
Input voltage: 100-277V
Output voltage: 100-180V/180-260V
THD＜10%/PF＞0.95
Surge protection: L-N :6KV; L/N- E:10KV
Efficiency: ≧93% at 230Vac input, full load
IP grade: IP65
Protections: UVP/SCP/OVP/OTP
Global certifications: ENEC-CE/SAA/CCC/CUL/UL（C version is compliant with new ERP directive）
Dimming function: 3 in 1 dimming(0-10V dimming/PWM dimming/resistance dimming), AUX power: 12V/0.25A
Working temperature: -40 ~ 65℃ (Typ.: 25℃)
Maximum case temperature: 90℃
Storage temperature: -40 ~ 85℃ (Typ.: 25℃)
Storage temperature: -40 ~ 85℃ (Typ.: 25℃)
Warranty: 5 years
