Choose the lighting smartly for your advertisement light box. Styled to work well in both single and double-sided light box, these LED modules comes in a line, an edge and a mini form with a robust encapsulation design. They are of excellent efficacy, which only require simple installation.

Features:
• Modules attached in an integrated aluminum heat sink.

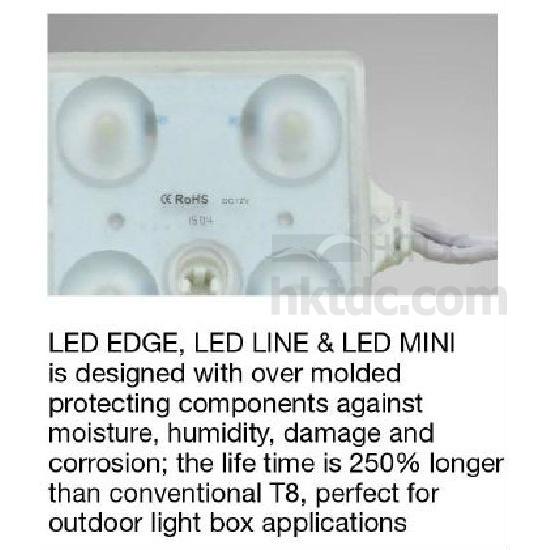

• Come with a robust encapsulation design which protects components from damaging.

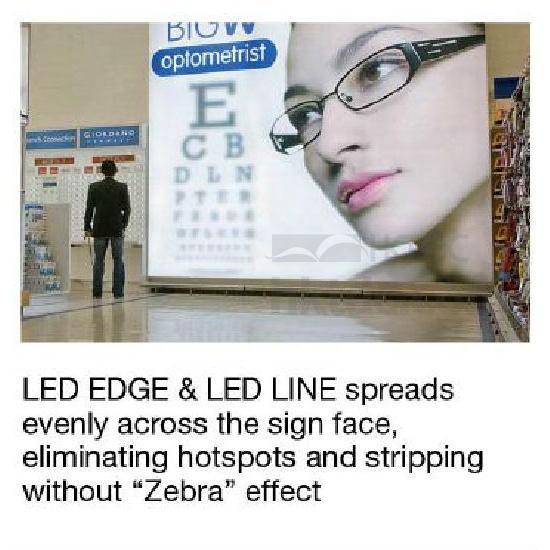

• Work well in both single and double-sided light box.
• With low operating temperature.
• Distribute lights evenly to fill designated area.
• Simple and quick installation.
• Excellent efficacy with good uniformity.
• Suitable for outdoor and light box applications.

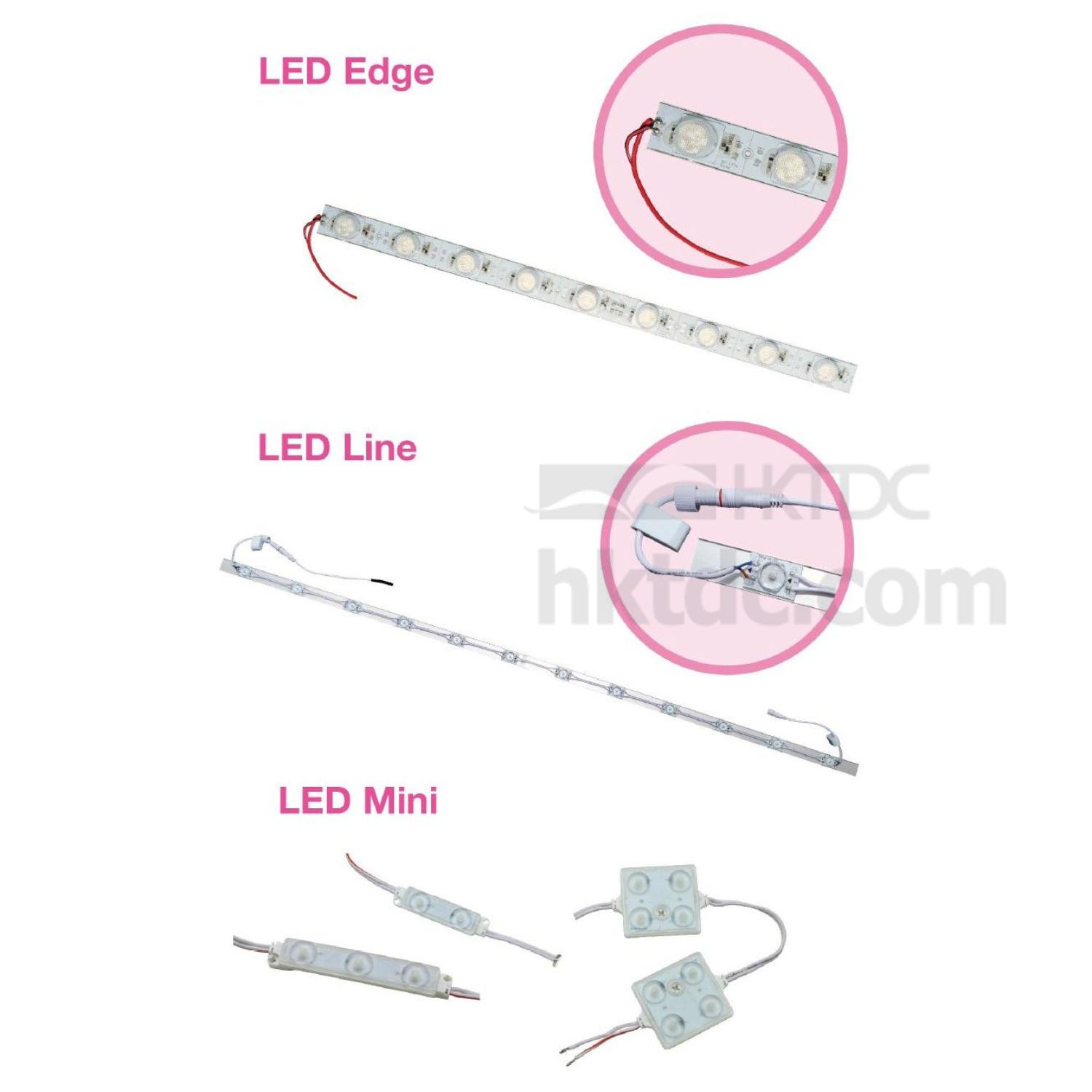

LED edge specifications:
• Featured with modules on the edge of 8-15cm light at even intervals.
• Beam angle: 20° x 45°/20° x 40°.
• DC 24V.
• IP54 grading.
• SMD3535.
• Optional mean well driver.

LED line specifications:
• Mounted modules on the back of the light box for 10-15cm.
• Modules available in a lattice or matrix style system.
• DC 12V.
• IP54 grading.
• SMD3030.
• Optional mean well driver.

LED mini specifications:
• Ultra-slim pitch design with higher flexibility.

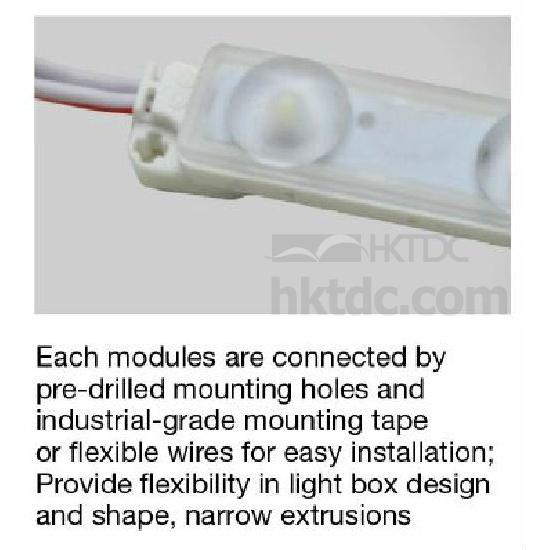

• With pre-drilled mounting holes and double-sided mounting tape.
• Maximum 20 pieces of LED lights for connection.
• Viewing angle: 160°.
• DC 12V.
• SMD2835.
• ABS base.
• Protection rate: IP65.
• Efficiency: 85-95lm/W.
• Optional mean well driver.
