Description
1. Model:KW3-OZ
2.Rating: 16A 125/250VAC T120 UL&CQC
16(6)A 25OVAC 5E4 T85 TUV&CE
16(6)A 25OVAC T120 TUV&CE
3. Contact resistance: ≤50mohm.
4. Switch Function:S. P. S.T.NO.
5.Terminal Type: 6.3X0.8mm 250 Quick connect terminal

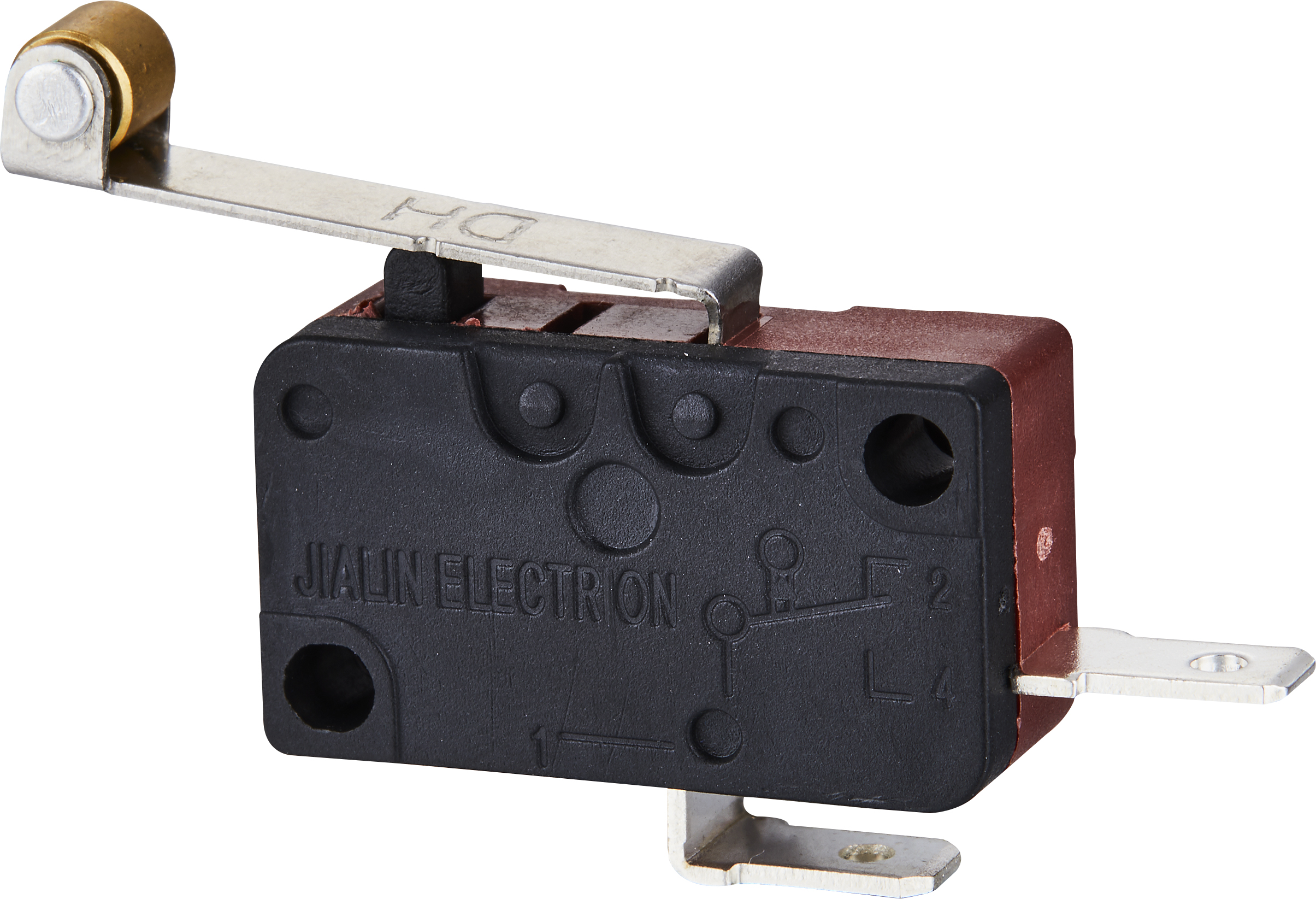

6.Lever type:Long Hinge Roller
6. Operating Force on the top end of the Lever:200gFMax
6. Operating Position:20.35±1mm
✿ Material
Made of high quality plastic and metal, rust resistance and corrosion resistance, durable enough for you to hanging items, So the product appearance is exquisite, perfect workmanship.
✿ Rating
You can meet the different RATING daily needs. Please pay attention to the model of the switch before purchase, to ensure that you purchase the same as you need.
✿ Vairous Sizes

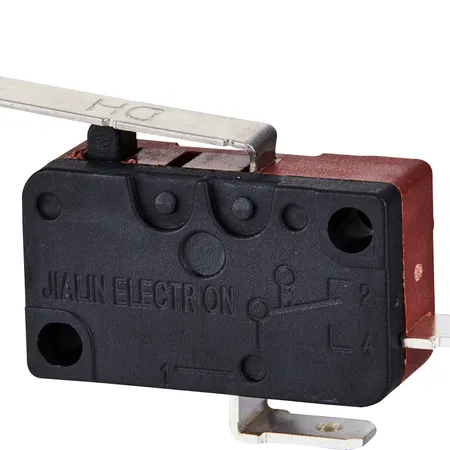

Actuator Action is momentary and Actuator Type is long straight hinge lever. Switch Body Size as shown in the picture.So different sizes can meet all your daily different needs.
✿ Wide Application
Home appliance: micro oven, electric cooker, washing machine, electric heater, warmer, water fountain and so on.
Commercial appliance: Vending machine, electric toy, electric tools, duplicating machine and so on.
Machinery: Transport machinery, printing machinery, textile machinery and so on.
