UGR<19 Green Energy Office School Led Luminaire Linear Light Solution | 燈泡和燈管

深圳市中光光電有限公司

查詢

比較及批量查詢

UGR<19 Green Energy Office School Led Luminaire Linear Light Solution

美元 $26.00 - 美元 $64.00

生產所需時間:

10 日

運送方式:

DHL/UPS/FEDEX/TNT and other

Brand:

CoreShine

Certification:

CCC, CE, EMC, FCC, GS, LVD, RoHS, SAA, UL

Warranty:

5 year

Luminaire Length:

1200mm, 1500mm, 2400mm

Trunk Rail Length:

600mm, 1200mm, 1500mm, 2400mm, 3000mm

CRI (Ra>):

UGR:

<19

Beam Angle:

60°;120°; Asymmetric; Double Asymmetric

CCT:

3000K/4000K/5000K/6500K

Input Voltage(V):

AC220-240VAC/100-277VAC

應用:

Office,Library,Supermarket,Warehouse,Workshop,etc.

是否可訂造:

可以

材料:

Aluminum Alloy + PMMA lens/PC cover

可調亮度:

是

光源:

發光二極管照明

型號編號:

CUL-1250-X1X2-X3WH

PF:

>0.95

THD:

<15%

Installation Method:

Chain, Cord, Rod, Surface mounted

Lumen:

6000lm-21000lm

Connector:

L/T/X Node Connector can be choose

Dimming:

DALI, 1-10V, DIMswitch

Driver:

Coreshine/Boke/Tridonic

Led Chip:

Ebright/Bridgelux

Color:

White

Light Color:

Warm White, White, Cold White

IP Rating:

IP20

Light Efficiency:

135-150lm/W

Power:

40-50W/55-70W/110-140W

Function:

Dimmable(DALI/1-10V), Emergency, Sensor, Track Spot Light

Wires:

5/8/12 core

Working Temperature:

-20 - 40 ℃

Lifespan (hours):

70000

Certifications:

CE/CB/ETL/DTC/SAA/FCC/GS/UL

描述

聯絡供應商

uDescription

Product Details

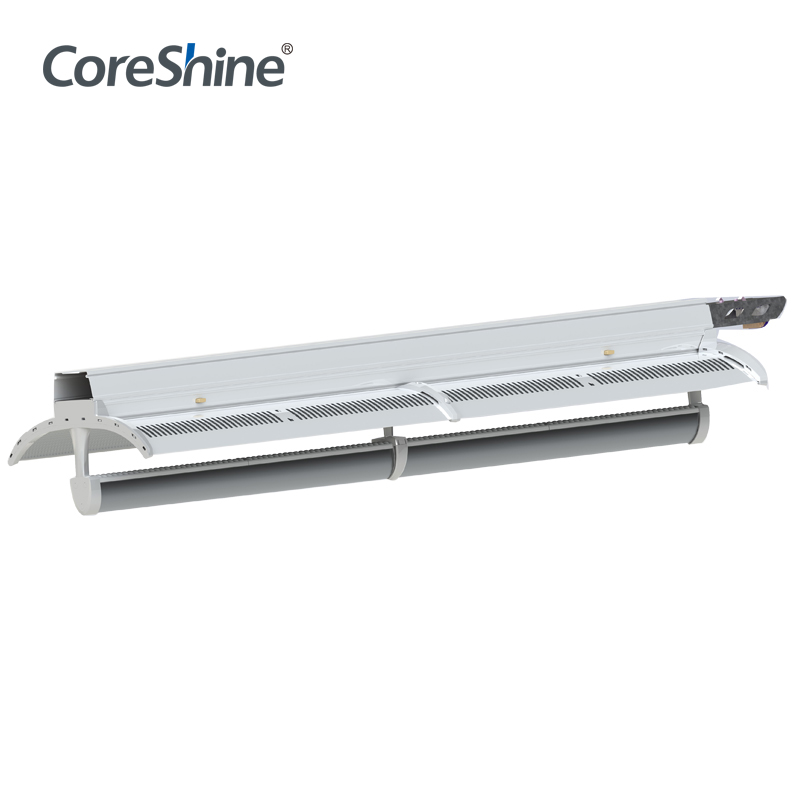

Coreshine U-LINE Indirect Led Linear Lighting System is a new innovative solution for creating beautiful and efficient lighting.
* Unique design
* Tools Free Installation
* 10% of the light upward and 90% reflected onto the floor
* Delivering up to 150 lm/w
* Low UGR <19. Perfect for school, library, classroom, shops, industry, commercial and hospitality
* More profitability and productivity

Luminaire
Length	Power	Lumen	Code No.
1200mm	55W	8250lm	CUL-1255-X1X2-X3WH
1200mm	60W	9600lm	CUL-1260-X1X2-X3WH
1200mm	65W	9750lm	CUL-1265-X1X2-X3WH
1500mm	70W	10500lm	CUL-1570-X1X2-X3WH
1500mm	70W	10500lm	CUL-1570-X1X2-X3WH
1500mm	110W	16500lm	CUL-15110-X1X2-X3WH
2400mm	120W	18000lm	CUL-24120-X1X2-X3WH
2400mm	1300W	19500lm	CUL-24130-X1X2-X3WH
2400mm	140W	21000lm	CUL-24140-X1X2-X3WH

Trunk Rail
	Europe Standards	North America Standards
Length	600mm, 1500mm, 3000mm	600mm, 1200mm, 2400mm
Wires	5 wire: L1, L2, L3 N, FG 8 wire: L1, L2, L3 N, FG, CHR, + 2 wires for Dimming/Emergency 12 wire: L1, L2, L3 N, FG, CHR, +2 wires for Dimming + 4 wires for Emergency converter & Battery

Why Choose Coreshine

CoreShine was founded in 2005 as one of the first LED lighting manufacturers in Shenzhen. In the beginning, we produced a variety of products like many other manufacturers, such as tubes, bulbs, 2G11 LED products to replace the traditional lighting.

Established in 2005
Located in Shenzhen
Number of employees 200 staffs
13,000 square meter 9 floors of workshop + 1 floor of office
Complete Industry Layout: R&D, Production, Marketing
Our Goal: To be World Leader of Linear Lighting System

Coreshine will continue to work in this product area and strive to become the absolute leader in the industry of the LED Linear trunking system in China.

R&D

Our R&D team has 9 engineers in the field of Electronics, Software, Mechanical, and Structure engineering.
Their average industry experience is more than 10 years.

Production

More than 95% of our accessories are made by ourselves.
We have 156 production staff, and 60% of them have 3-5 years of lighting experience.
All our employees have professional training before going to work, and only 100% passed of the employees can be hired.

Our QC department consists of 11 people, all of them are very experienced in this field.
They will do all the finished product testing with 10% for each order, according to the strict inspection standards and instructions. Like Integrating Sphere test and so on.

Our Advantage
