MARK - 980 ( Handheld Coating Thickness Analyzer )

生產所需時間:

2 日

運送方式:

DHL

品牌:

NAPCO

型號編號:

MARK - 980

尺寸:

L × W × H: 220mm × 91mm × 276mm

重量:

Approx. 1.5kg (3.3lbs) including battery

描述

聯絡供應商

Products Description

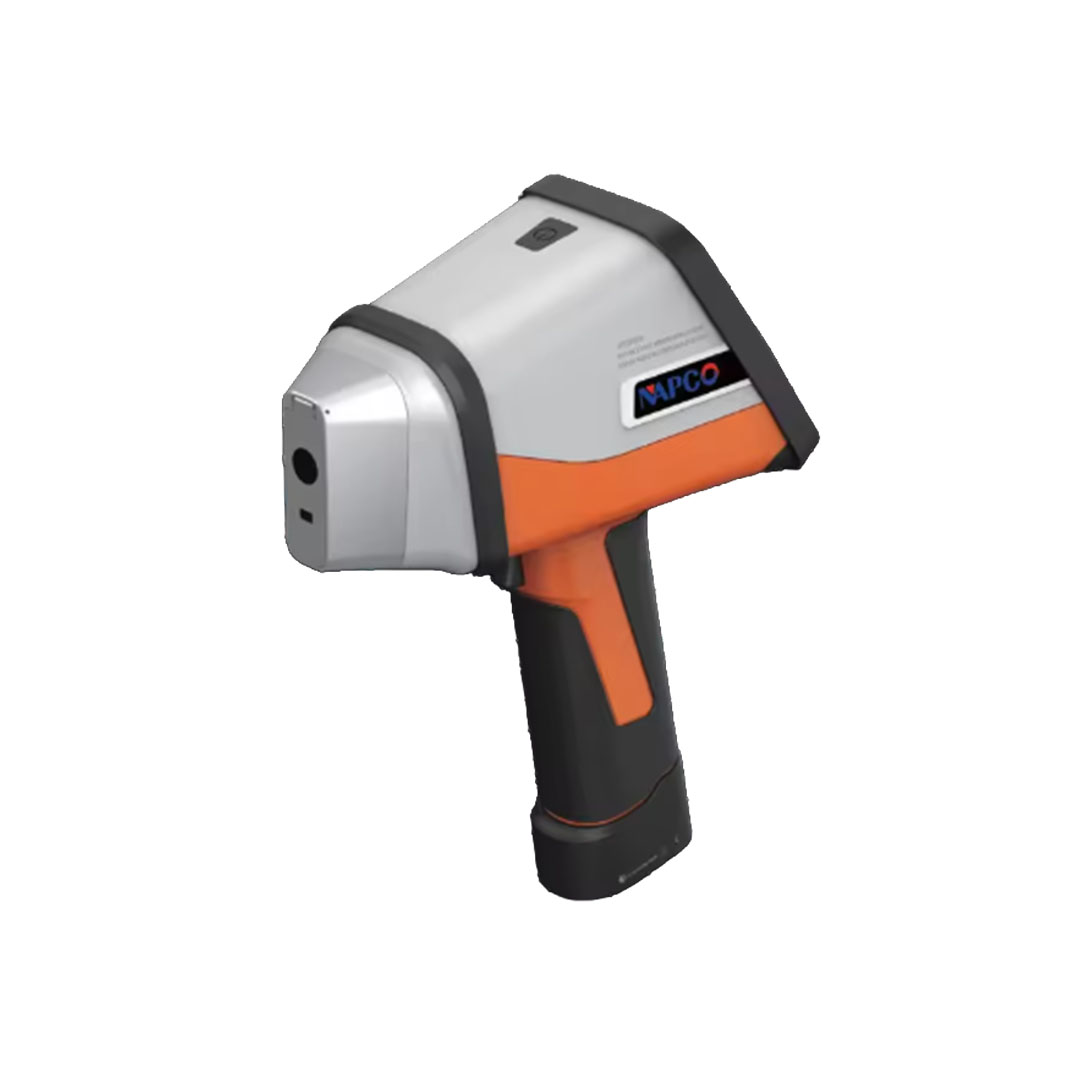

Handheld Coating Thickness Analyzer MARK 980

The new-generation MARK 980 handheld XRF coating thickness analyzer adopts a high-resolution Si-PIN
(or SDD silicon drift detector)
achieve excellent measurement accuracy and stability. Whether it is for the quality control of coating thickness in the
production process, or random quality check, and complete inspection for incoming material inspection, MARK 980 can meet your
inspection needs.

	Mark 980	Mark 980P
Excitation	Ceramic packaged microfocus X-ray tube, Ag Anode 50kV	Optimized SDD detector (with Graphene window)
Detector	High-performance Si-Pin detector
Resolution	140 eV FWHM	129 eV FWHM
Filter	Multi-position automatic filter changer
Window	Kapton with an anti-puncture window design, optional
Battery	7.2V Li-ion battery, 6800 mAh
Display	Capacitive touch screen (5-inch 720P)
CPU	i.MX 8M Mini quad-core 1.8 GHz
Signal Processor	4096-pixel multi-channel detector / 80 MHz ADC digital signal processor
Data Storage	Over 100,000 data storage
Data Transfer	WiFi, USB
Structure Design	Unique structure design, effectively increases the heat dissipation of the X-ray tube
Radiation Safety	Safety Guard induction device: when there is no sample in the test area, the source will shut off, providing maximum safety protection. Password-protected user security
Camera (Optional)	Integrated CCD camera with autofocus lens for positioning and recording measuring point positions
Elements	Al, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Se, Zr, Nb, Mo, Ru, Rh, Pd, Ag, Sn, Sb, Hf, Ta, W, Re, Ir, Pt, Au, Pb, Bi	Al, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Se, Zr, Nb, Mo, Ru, Rh, Pd, Ag, Sn, Sb, Hf, Ta, W, Re, Ir, Pt, Au, Pb, Bi
Environment	Temp: -10°C ~ 50°C Humidity: 0% ~ 80%
Weight	Approx. 1.5kg (3.3 lbs) including battery
Dimensions	L × W × H: 220mm × 91mm × 276mm
Standard	CE, RoHS, IP54
Optional	With the innovatively designed mobile application, data can be viewed, shared, and printed in real time, and functions such as sample photos, GPS positioning, barcode scanning, and data archiving can be supported. The optional data cloud service function supports uploading the test results to a secure and encrypted cloud server and performs efficient statistics, queries, and analyses of large-scale data.
