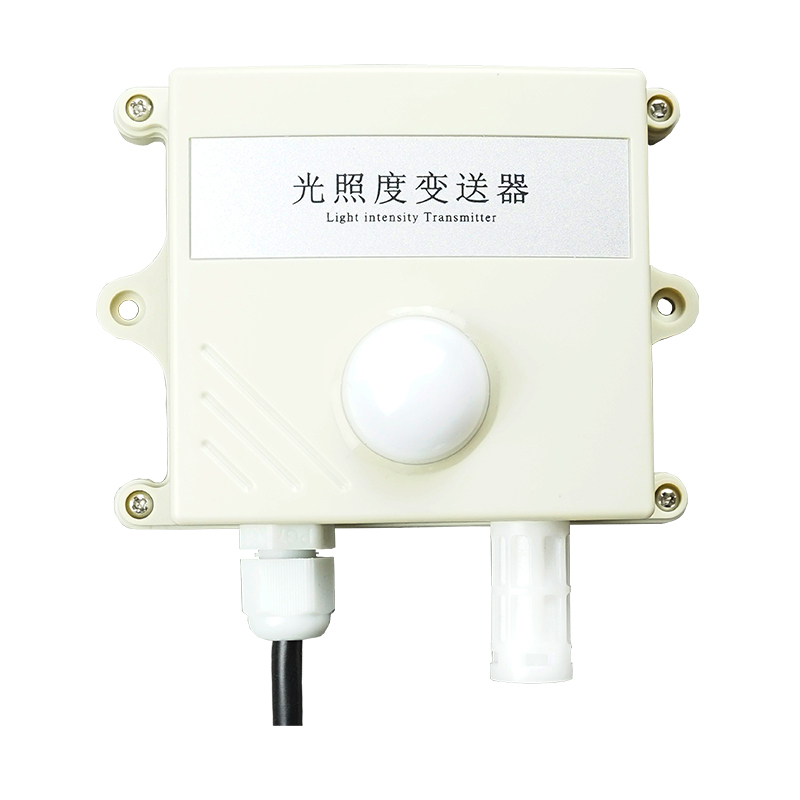

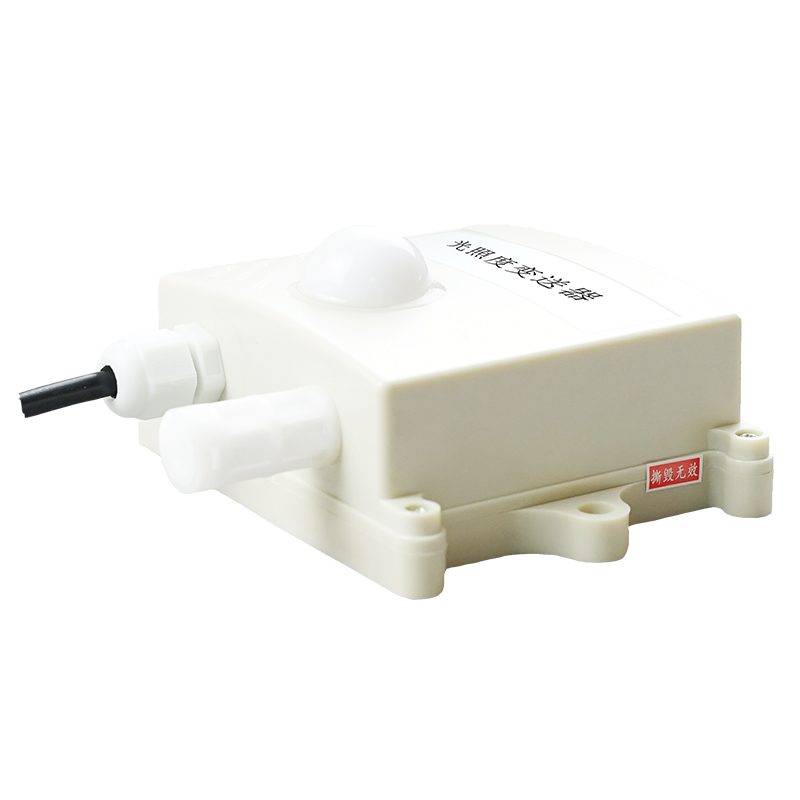

The MicroNature MN-T20L Light Sensor features a wall-mounted waterproof housing (IP65) and operates on a wide voltage range of 10-30V. It is a high-precision light sensor capable of measuring and outputting lux values. It supports 485 communication and follows the standard Modbus-RTU communication protocol. It can be configured with communication address and baud rate, with a maximum communication distance of 2000 meters.

MicroNature MN-T20L Light Sensor can be used with PLC gateway in the field of smart lighting, which is suitable for indoor and outdoor applications that require light monitoring.

1.     Wall-mounted Installation: Standard wall-mounted design, easy and convenient installation, sturdy and durable.

2.     Premium Probe: Built-in high-sensitivity probe, excellent light sensitivity, high accuracy.

3.     Reliable Quality: IP65 high-density material housing, suitable for harsh environments such as high temperature and high humidity.

4.     Intelligent Linkage: Built-in 485 interface, standard Modbus protocol, supports linkage with lighting control devices.

5.     Suitable Scenarios: Municipal road lighting, tunnel lighting, industrial lighting, commercial lighting.

- High-precision light detection with a measurement range of 0-200,000 Lux.

- 485 communication with standard Modbus-RTU communication protocol. Communication address and baud rate can be configured, with a maximum communication distance of 2000 meters.

- Wall-mounted waterproof enclosure with high protection rating, suitable for outdoor or harsh field environments.

- Wide voltage power supply of 10-30V DC.

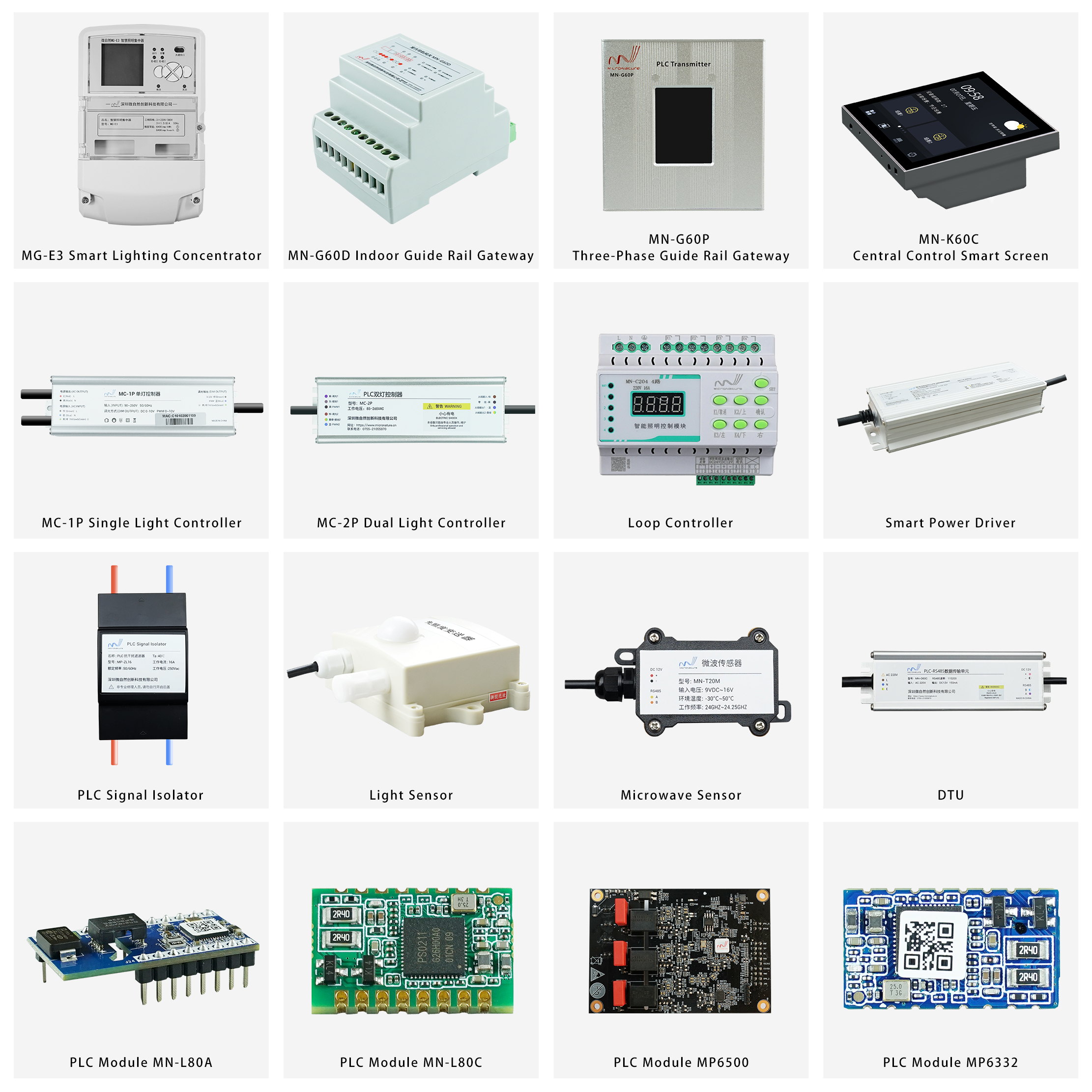

- Compatible with MicroNature gateway series products, three-phase concentrators, Indoor guide rail gateways, and other applications in the field of smart lighting.

- Product dimensions: Length * Width * Height =108*84.5*41mm
