Features:

• Pro stage/studio-level reverb, adjustable reverb amount and time,improving your performance.

• Pro digital amplifier circuit with powerful amp and dynamics, compatible with various mics on the market.

• Separate control for mic 1/2 to cater for different vocal tuning requirements.

• 12-level noise reduction, adjustable based on your ambient environment.

• 12-level ducking, which can adjust the music recovery time as per your broadcast needs.

• Audio panning to quickly adjust left and right channel balance on the fly.

• With 16 audio FX preset buttons, including 4 customizable FX buttons to bring much fun to your stream.

• Colorful RGB effects, controlled via on-board lighting button.

• Three mic interfaces for handling multi-person broadcast.

• With ø6.35mm instrument interface, suitable for instruments such as electric guitar and bass.

• Two OTG phone interfaces for lossless stereo transmission, usable with Apple and Android devices.

• Built-in high-capacity li-ion battery to secure about 5hrs unstopped stream.

Application:

• Karaoke, webcast, recording

Specification:

Sound Card Specifications:
 • Data Transmission: USB2.0
 • Sampling Rate: 48KHz/16bit
 • Frequency Response: 20Hz-20KHz(±3dB)
 • THD: THD<0.5% 1KHz
 • Headphone Output Power: 167.7mW/32Ω
 • Headphone S/N Ratio: 90dB (A-Weighted)
 • Net Weight: about 966g
 • Dimensions: 287*151*58mm (L*W*H)
 • Frequency Range: 2400-2483.5MHz
 • Modulation Methods: GFSK, π/4 DQPSK, 8DPSK
 • Occupied Bandwidth: ≤3MHz
 • Transmit Power: ≤20dBm (EIRP)

Battery Specifications:
 • Battery Type: Li-ion battery
 • Charging: DC 5V/1A
 • Battery Capacity: 4400mAh
 • Charging Time: about 4hrs
 • Use Time: about 5hrs (48V off) about 4hrs (48V on)
 • Charging Temp.: 0~45℃
 • Working Temp.: -10~60℃

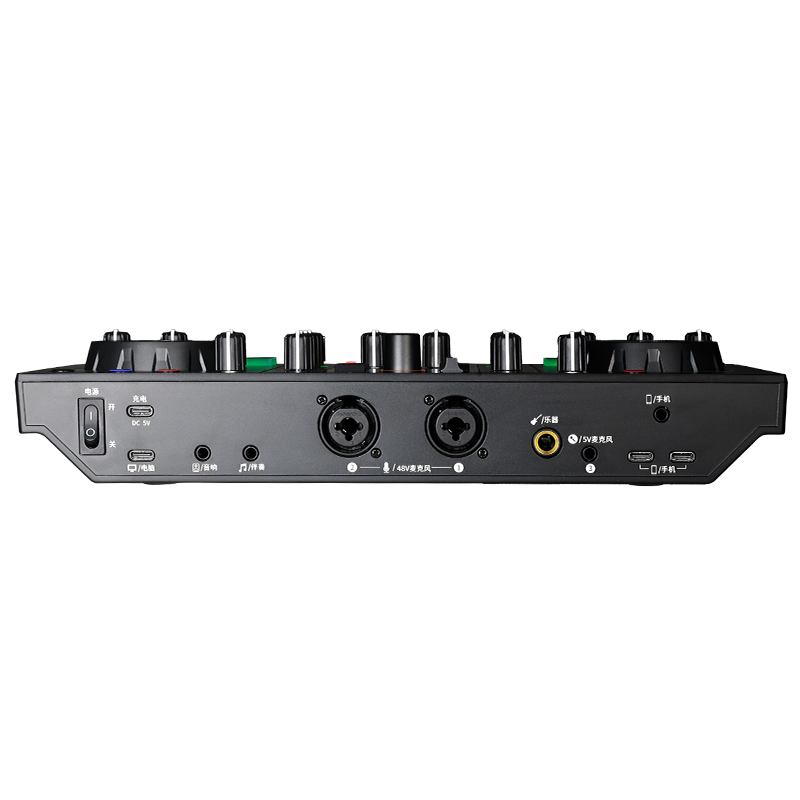

Connector Specifications:
 • 2 * Headphone Connector (ø6.35mm, ø3.5mm)
 • 1 * AUX Connector (ø3.5mm)
 • 3 * Microphone Connector (2 * XLR+ø6.35mm, ø3.5mm)
 • 1 * Instrument Connector (ø6.35mm)
 • 1 * Speaker Connector (ø3.5mm)
 • 1 * Computer Connector (Type-C)
 • 3 * Phone Connector (2 * Type-C, 1 * ø3.5mm)
 • 1 * Charging Connector (Type-C)
 Note on the operating temperature: It is recommended to use the sound card within the normal temperature range to ensure the best performance and safety of the battery.
 Using the sound card in a hot environment above its operating temperature range may permanently reduce battery life.
 Using the sound card in a cold environment below its operating temperature range may temporarily reduce battery life and may cause the sound card to shut down.
 When returning it to a warmer environment, battery life will return to normal. If the temperature is too low, the sound card may not be able to charge, or may stop charging.
 Note: The above data are measured by Takstar laboratory which has the final interpretation right!
