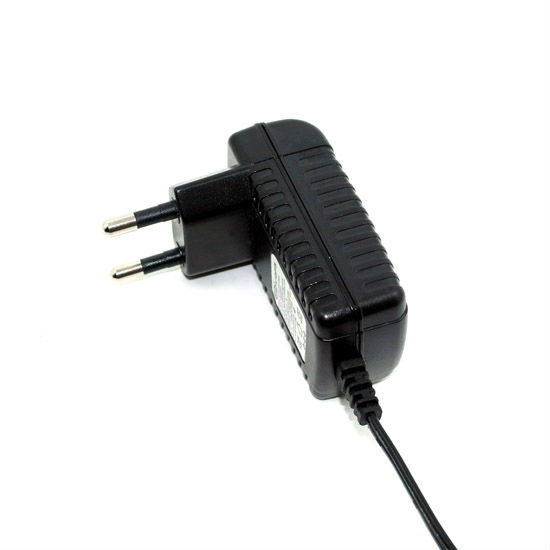

Medical Power Supply Adapter
生產所需時間:
30 日
產品型號:
KRE-0503000
品牌名稱:
KRECO
顏色:
Black
是否有包裝:
有
是否可訂造:
是
用途:
Medical
描述
聯絡供應商
描述
- 5V 3A series medical use AC adaptor, used for medical devices, Universal input, customized design
- Input voltage: 100 to 240VAC 50/60Hz
- Input current: 150mA (maximum)
- No load input power (240V AC): 0.3W
- Inrush current (240V AC): 25A, cold 25°C
- Efficiency: 60 to 88% (maximum)
- DC output voltage: 5VDC
- DC output current: 3,000mA
- Output voltage precision: 5%
- Regulation: ±1% line, ±5% load
- Ripple/noise: 100mV
- DC connector: 2.1 x 5.5, 2.5 x 5.5mm (optional)
- Protections: Thermal shutdown capability Over-voltage protection Over-current protection Short-circuit protection
- Reliability: Burn-in: 100% full load, 40°C, 4 hours (minimum)
- MTBF: meet MIL-HDBK-217F over 50,000 hours, full load, 25°C
- Leakage current: 0.25mA maximum at 264V AC
- Withstanding voltage: 3kV, 1 minute, 10mA (maximum), between primary and secondary
- Emission and immunity: EN60601 EN55011
- Safety approvals: CB (TUV-SUD)+LVD:IEC/EN60601
- Features: High-reliability LED indication Light and convenient plug-in
- High-efficiency: consumption, meet US Energy Start/CEC/AS/MEPS/EUP/ERP
