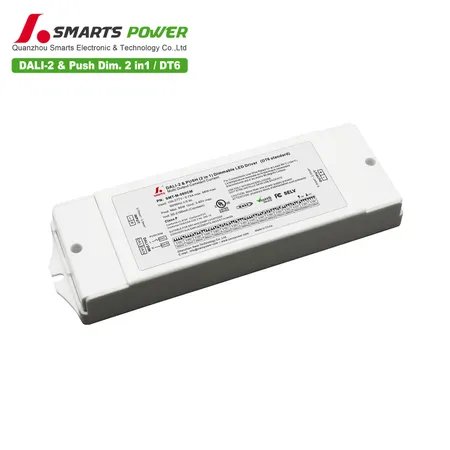

Smarts new product dali-2 & push 60W DIP constant current led driver is ip20 design of plastic shell, the output current is adjustable between 800ma and 2100ma, UL certification, in line with global safety lighting laws, with a five-year warranty.

Features：

·Output constant current type

·UL, cUL listed, Type HL rated. FCC

·Universal AC input: 110-277VAC

·Built-in active PFC function

.Power Factor: up to 0.9

·High efficiency : up to 85%

·Load: 10-100%

·Protection:short circuit/over loading/ Over temperature

·PWM output, does not change the color index

·Full protection metal case, for dry, damp  location

·Flicker-free

·Dimming function:

·Phase dimming: work with forward phase /leading edge ,MLV and

·Reverse phase /trailing edge ,ELV,TRIAC dimmers

·0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1

·Dimming range: 0-100%

·Suitable for LED lighting and moving sign applications

·5 years warranty

 ※Input terminals "Black" and "White" to connect to AC L and N.

 ※Output LED SEC output Positive (LED+) , output negative(LED-). Connected to LED light.

※Output terminals DIM (+) to 0/1-10V dimmer signal(+ ),DIM (-) white connect to 0/1-10V dimmer signal (-)

※Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.

Note: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged
