    New Design Low Glare UGR<19 linear LED light light
    分享此頁面
    美元 $18.00 - 美元 $26.00
    生產所需時間:
    6 日
    運送方式:
    DHL/UPS/FEDEX/TNT and other
    品牌:
    CoreShine
    型號編號:
    CTL-0618-X1NR-X3WH
    材料:
    Steel
    光源:
    發光二極管照明
    尺寸:
    600mm, 1200mm, 1500mm
    CRI (Ra>):
    80
    UGR:
    <19
    Beam Angle:
    60°
    CCT:
    2700K/3000K/3500K/4000K/5000K/5700K/6000K
    PF:
    >0.95
    THD:
    <15%
    Input Voltage(V):
    AC220-240VAC/100-277VAC
    Installation Method:
    Chain, Cord, Rod, Surface mounted
    Lumen:
    28800lm-9600lm
    Connector:
    L/T/X Node Connector can be choose
    可調亮度:
    Dimming:
    DALI
    Driver:
    Flicker Driver / Non-flicker Driver
    Led Chip:
    Everlight/Bridegelux
    Color:
    White, Black
    Light Color:
    Warm White, White, Cold White
    IP Rating:
    IP20
    Light Efficiency:
    160lm/w
    Power:
    18W/20W/22W/24W/35W/40W/45W/50W/55W/60W
    Function:
    Dimmable(DALI/1-10V), Emergency, Sensor, Track Spot Light
    Wires:
    3Wire/4Wire/6Wire
    Working Temperature:
    -20 - 65 ℃
    Warranty:
    5 years
    Lifespan (hours):
    100000hrs
    Certifications:
    CE/CB/ETL/DTC/SAA/FCC/GS/UL
    應用:
    Supermarket, shop stores, office
    是否可訂造:
    可以
    Packing:
    Luminaire and Trunking rail are packed separately
    描述
    證書及文件
    聯絡供應商
    描述
    Product Description

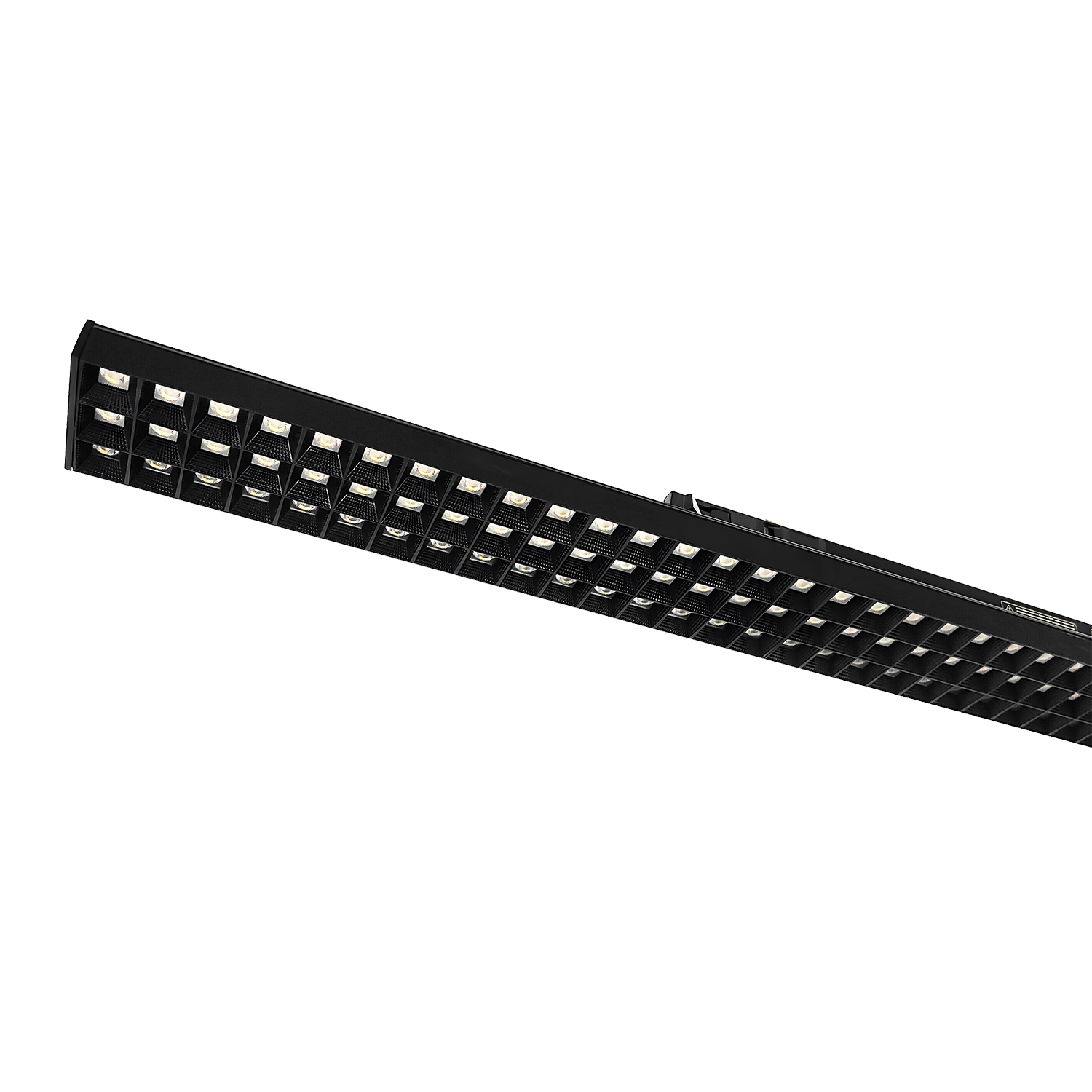

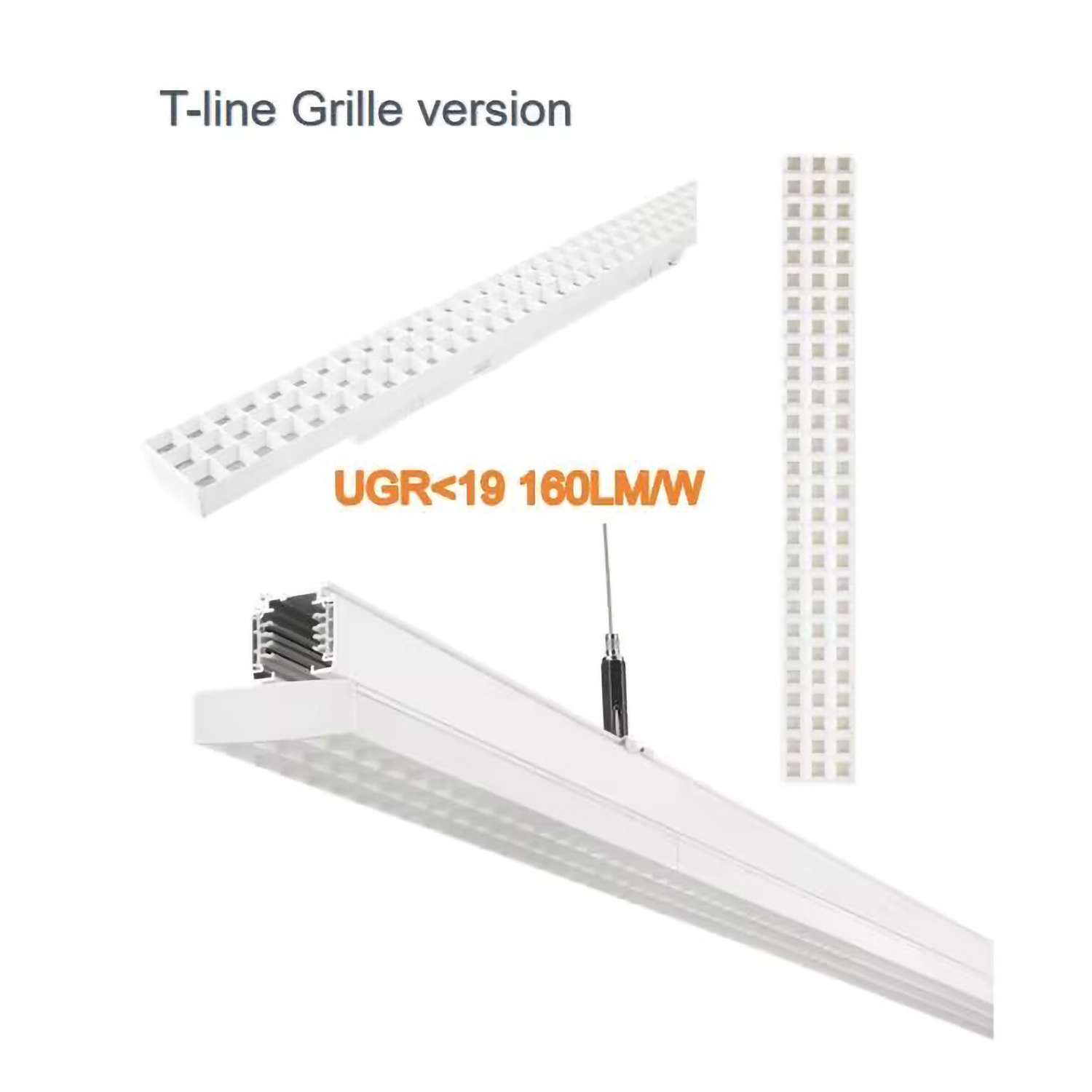

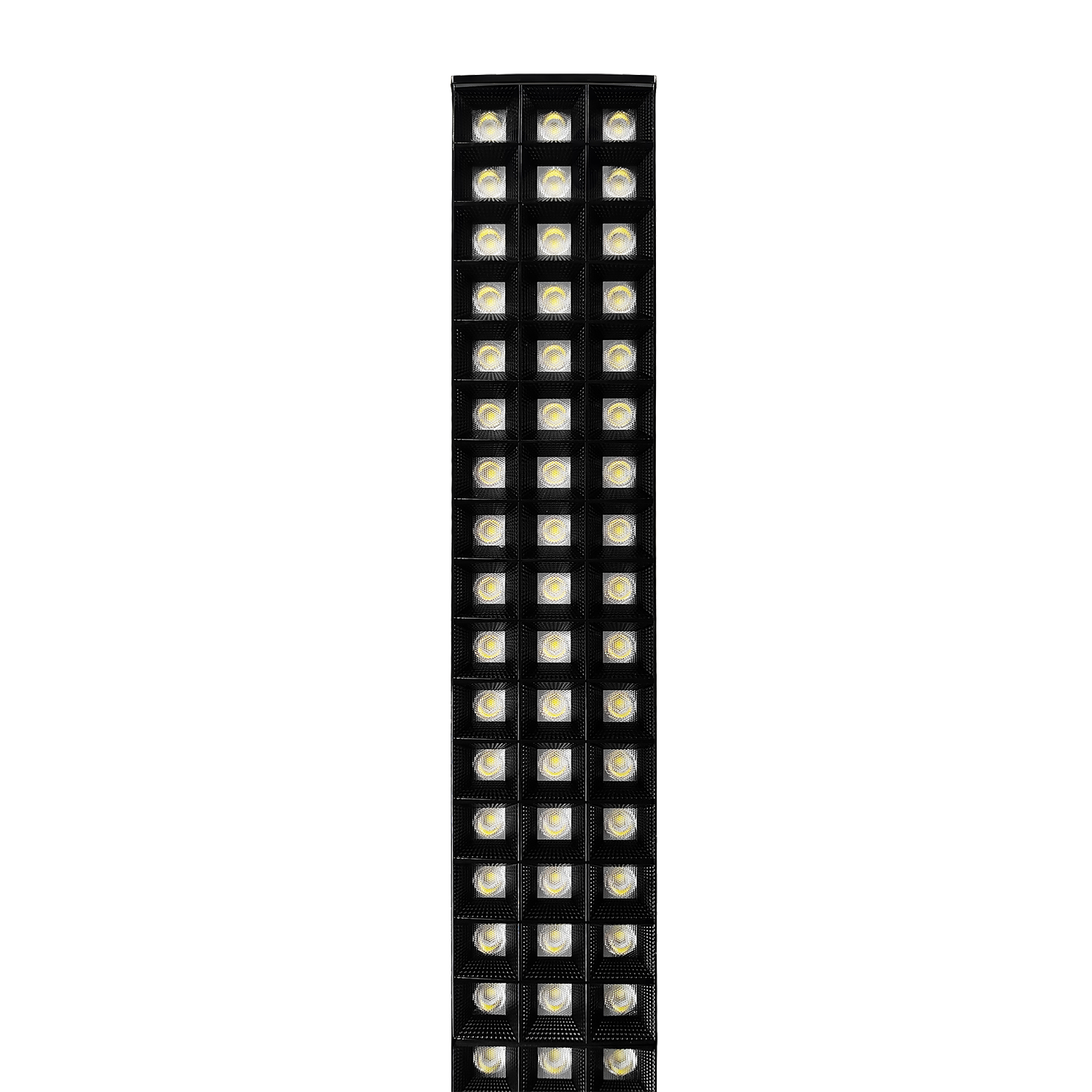

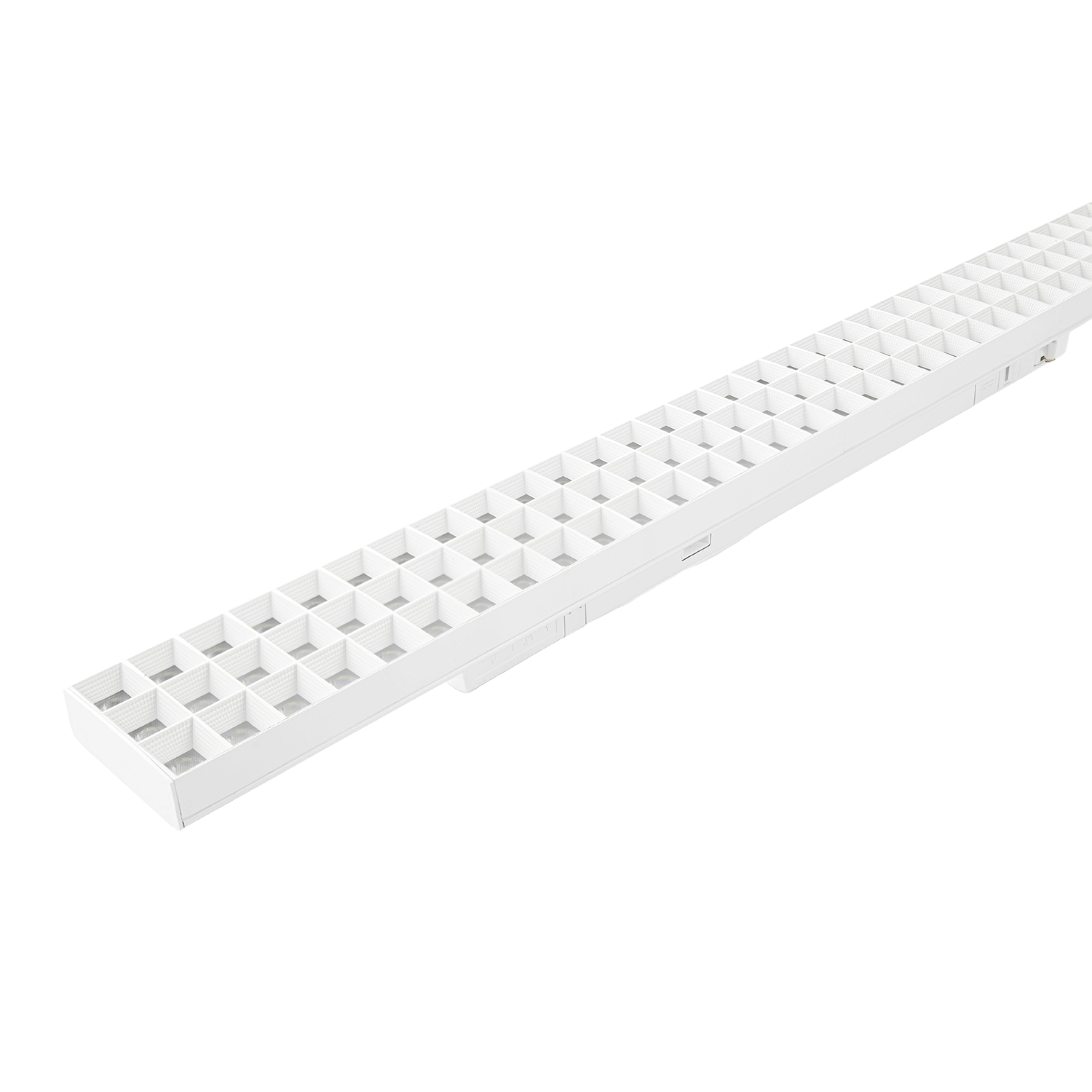

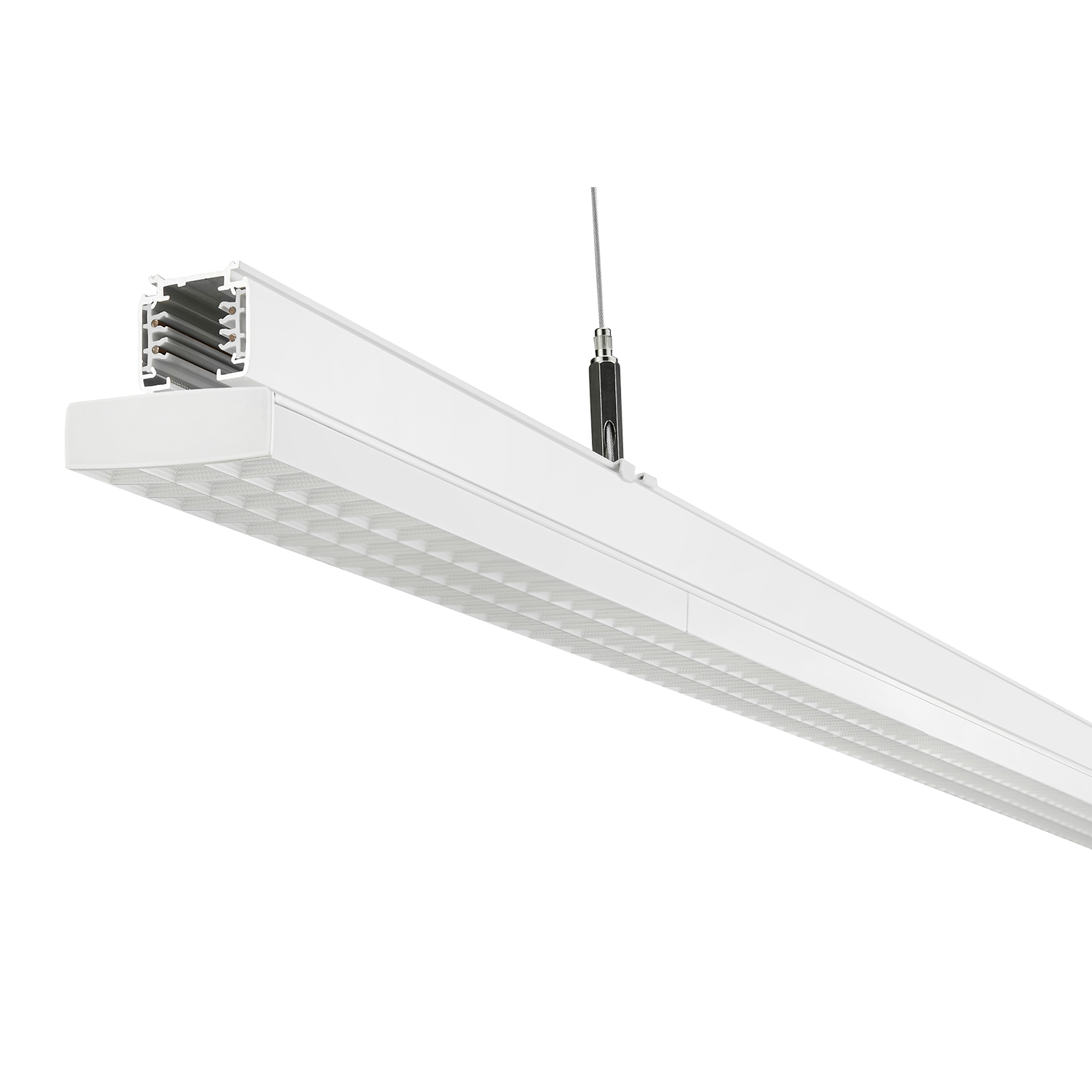

    Coreshine T-LINE Grille  Track LED linear lights is specially designed for some application areas which requrie Low UGR.
    • Suitable for office, library, supermarket, shops, retail stores lighting
    • High light efficiency 160ln/w
    • Can be compatible with standard 3wire/4wire/6wires track rail on the market
    • DIP swtich driver, easy and convenient for stock
    • Long lifespan: 100,000hrs
    • Fast and easy for installation
    • Flexible installation
    • Can combine with track spotlight in project lighting
    LengthWattageLumen
    Model
    600 mm
    18W
    28800 lm
    CTL-0618-X1X2-X3WH
    600 mm
    24W
    3840lm
     CTL-0624-X1X2-X3WH
    1200 mm
    35W
    5600lm
    CTL-1235-X1X2-X3WH
    1200 mm
    50W
    9800lm
    CTL-1250-X1X2-X3WH
    1500 mm
    45W
    7200lm
    CTL-1545-X1X2-X3WH
    1500 mm
    60W
    9600lm
    CTL-1560-X1X2-X3WH
    600 mm
    20W
    3200lm
    CTL-0620-X1X2-X3WH
    600 mm
    50 W
    8000 lm
     CTL-0650-X1X2-X3WH


    Why choose Coreshine
    CoreShine  is a premier Chinese manufacturer specializing in LED linear lighting systems.
    • Established: 2005
    • Location: Shenzhen
    • Workforce: 2000 employees
    • Facility: 13,000 ㎡ premises consisting of 9 floors of production workshops plus 1 floor of office space
    • Complete industrial layout covering R&D, manufacturing and marketing

    R&D Team

    • Our R&D team comprises 9 engineers specializing in electronics, software, mechanical and structural engineering, with an average of over 10 years of industry experience.

    Production

    • 95% of components are made-in-house.
    • We have 156 production staff, 60% of whom have 3–5 years of experience in the lighting industry.
    • All our employees receive professional training prior to employment, and only fully qualified personnel are recruited.

    Quality Control

    • Our QC department consists of 11 people, all of them have rich experienced in this field.
    • They will conduct 10% sampling testing on all finished goods for each order in accordance with strict inspection standards and specifications
    Our Advantages
    • 5 years warranty
    • Tool-free installation
    • Long lifespan
    • Rigorous technology
    • Module System
    • Fast and easy for maintenance
