OEM Camera Module 8mp Sony imx179 Auto Focus 4k Usb Camera Module

生產所需時間:

7 日

運送方式:

DHL/FedEx

是否可訂造:

可以

型號編號:

SNS-8MP-IMX179-F1

解析度:

3840×2160

尺寸:

Customizable

品牌:

Sinoseen

描述

聯絡供應商

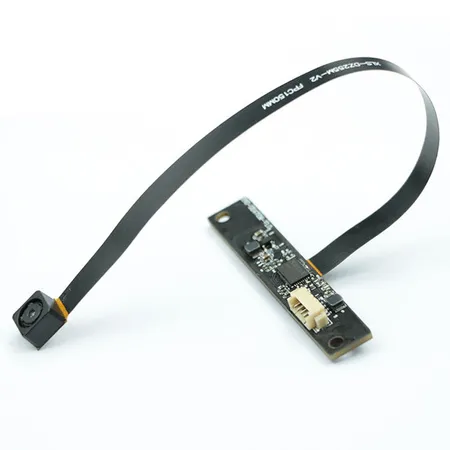

This is one of our best selling USB camera modules, it has an 8 megapixel SONY IMX179 CMOS sensor with very good image quality. The reason why this camera module is so popular is because of its unique FPC+PCB+USB cable design. Structurally, the camera module consists of three parts: control board, lens part and FPC cable. The control board is 60MMx10MM and can be customized; the lens is based on a flexible PCB with a length of 150mm, so it can provide you with many options and flexibility to adapt to your machines and equipment. USB cables vary in length from 50 cm to 2 meters.

Model No	SNS-8MP-IMX179-F1
Sensor	1/3.2’ IMX179
Pixel	8 Mega Pixel
Most effective pixels	3264(H) x 2448(V)
Pixel Size	1.4µm x 1.4µm
Compression format	MJPG / YUY2
Resolution	see above
Frame rate	see above
Shutter Type	Electronic rolling shutter
Focus type	Auto/Fixed focus
S/N ratio	36dB
Dynamic range	60dB
Interface type	USB2.0
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/ Gamma/White balance/Exposure
Lens	Focal length: 3.6mm
	Lens Size: 1/3 inch
	FOV: 90° (Optional)
	Thread Size: M12*P0.5
Audio frequency	Support
microphone	Built-in
Power supply	USB BUS POWER
Power consumption	DC 5V, 200mA
Main chip	DSP/SENSOR/FLASH
Auto Exposure Control (AEC)	Support
Auto White Balance (AEB)	Support
Auto Gain Control (AGC)	Not Supported
Storage temperature	-20°C to 70°C
Operating temperature	0°C to 60°C
USB cable length	Default
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC

*High-Resolution Imaging：8 megapixel SONY IMX179 CMOS sensor.

*Unique Modular Design：FPC+PCB+USB cable design offers flexibility and adaptability.

*High-Speed USB Connectivity.

*Flexible FPC Cable: With a 150mm flexible PCB, the camera module can be easily adjusted to fit compact or complex spaces, enhancing its usability in diverse applications.

*Wide Range of USB Cable Lengths: USB cables ranging from 50 cm to 2 meters ensure compatibility with various setups, offering convenience and ease of installation.
