Ophthalmic Equipment Haag Streit 5 Step LED Slit Lamp
美元 $1150.00 - 美元 $1250.00
生產所需時間:
7 日
運送方式:
Express way, air, sea
品牌:
Visionstar
顏色:
White
型號編號:
S5
Illumination Type:
Haag Streit Type
Illumination Source:
Imported LED
Microscope Type:
Parallel type, Galilean system
Magnification changer:
Revolving drum
Eyepiece:
12.5X
Magnification:
6X 10X 16X 25X 40x
Visual field Diameter:
6X:33mm10x:22mm 16X:14mm 25X:8.5mm 40X:5.5mm
Diopter adjustment:
-7D~+7D
Pupil range:
52mm~82mm
brightness:
continuously adjustable
描述
聯絡供應商
描述

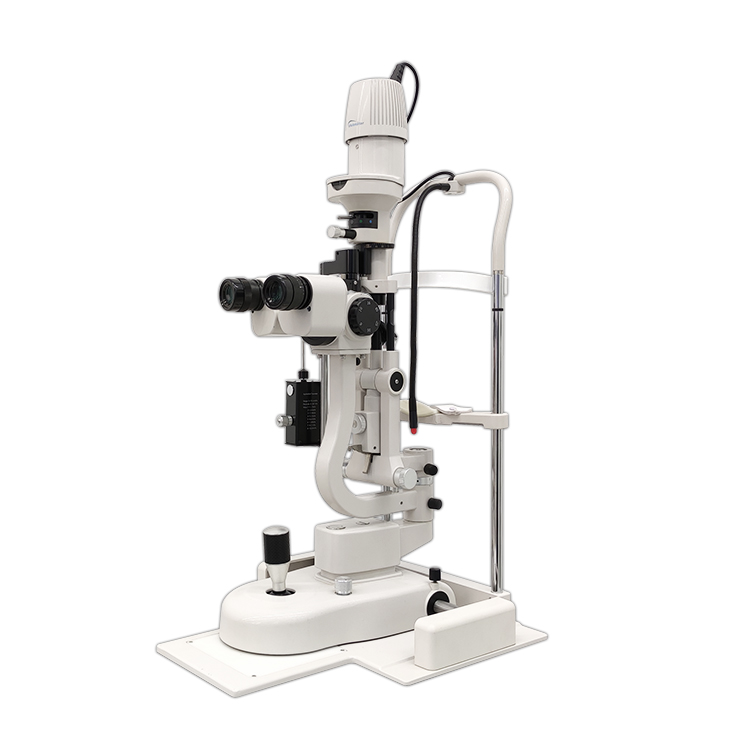

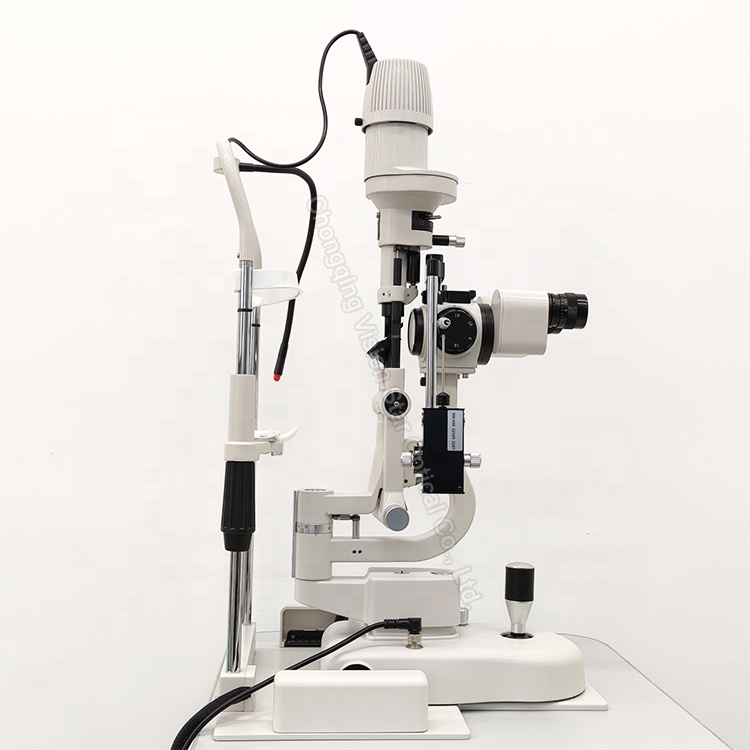

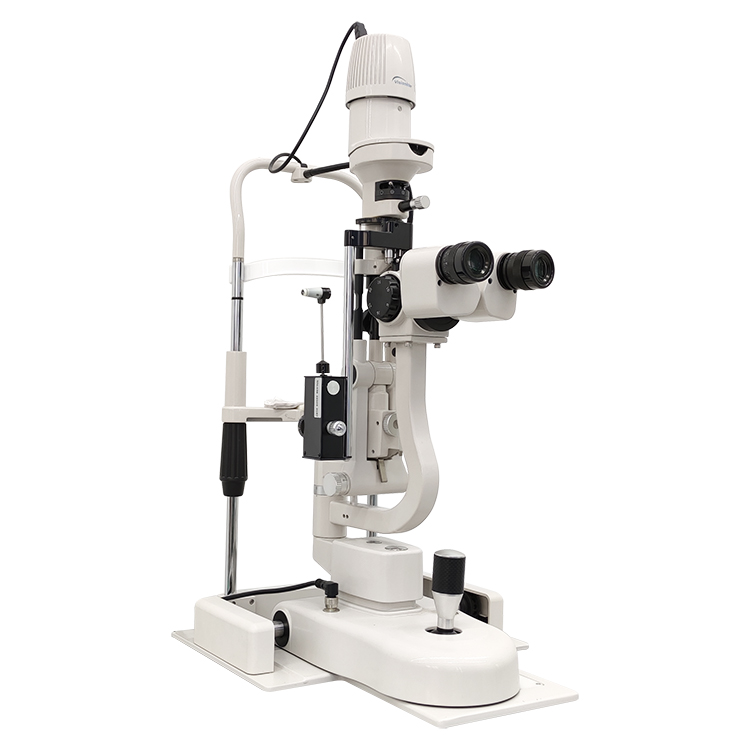

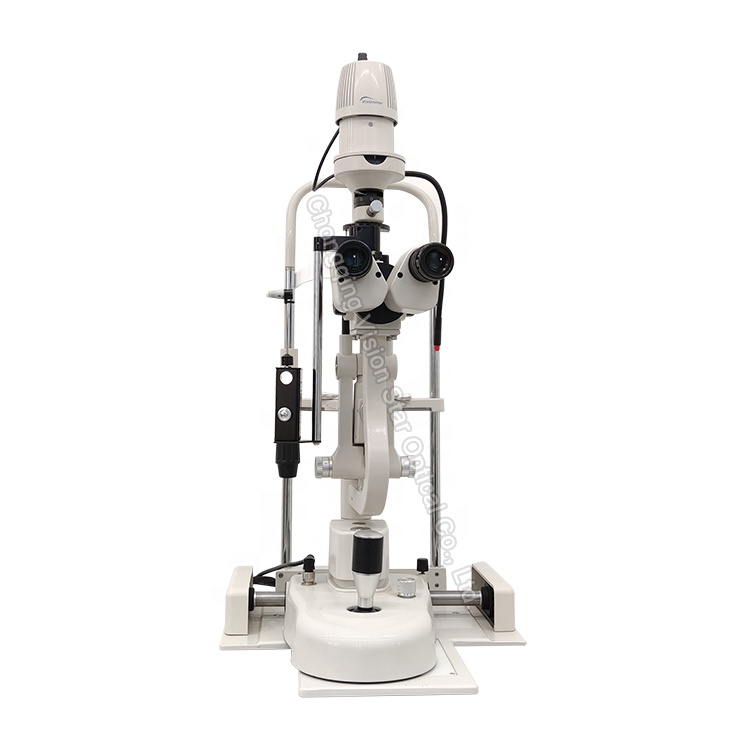

S5 LED Slit Lamp
Features:
1. Outstanding Optic Quality Ensure the Comfortable View.
2. Parallel type. Galilean system.
3. LED Illumination, long life time.
4. 5 step magnifications.
5. Top Illumination slit lamp with broad beam, wide field and high depth of field.
6. interface for laser and applanation tonometer reserved.
| LED Lamp | 5 Magnifications |
| 4 Filters | Maximum Slit Width 14mm |
| Stepless Light Brightness Adjustment | Interface for Tonometer and Laser |
| Metal Base Plate, Easy to Install and Move | Adjustable Illumination Angle |
Specifications:
| Model | S5 |
| Illumination Type | Top Illumination |
| Illumination Source | Imported LED Lamp |
| Max Illumination Intensity | 60000 Lux |
| Microscope Type | Parallel type, Galilean system |
| Magnification changer | Revolving drum |
| Eyepiece | 12.5X |
| Magnification | 6X 10X 16X 25X 40X |
| Visual field Diameter | 6X:33mm10x:22mm 16X:14mm 25X:8.5mm 40X:5.5mm |
| Diopter adjustment | -7D~+7D |
| Pupil range | 52mm~82mm |
| brightness | continuously adjustable |
| Slit image width | 0mm~14mm continuous |
| Slit image length | 1mm~14mm continuous |
| Slit image angle | 0~180 continuously rotation |
| illumination tilting | 5 10 15 20 |
| Slit aperture size | 14 10 5 3 1 0.2 (mm) & 1~14mm continuously |
| Filter | Heat absorption, Grey, Redfree(Green), Cobalt blue |
| Fixation | Red LED 3.5V |
| Image collector | None |
| Background illumination | None |
| Input voltage | 70VA |
| Input power | 100V~240V 48~62HZ |
| External packing | Carton box |
| Dimension | 740”650”450mm |
| weight | 23kg |
