Ozone Test Chamber | Ozone Aging Test Chamber

美元 $7777.00 - 美元 $13333.00

生產所需時間:

25 日

運送方式:

By sea

應用:

Testing instrument

品牌:

LISUN

型號編號:

OTC-150A

描述

聯絡供應商

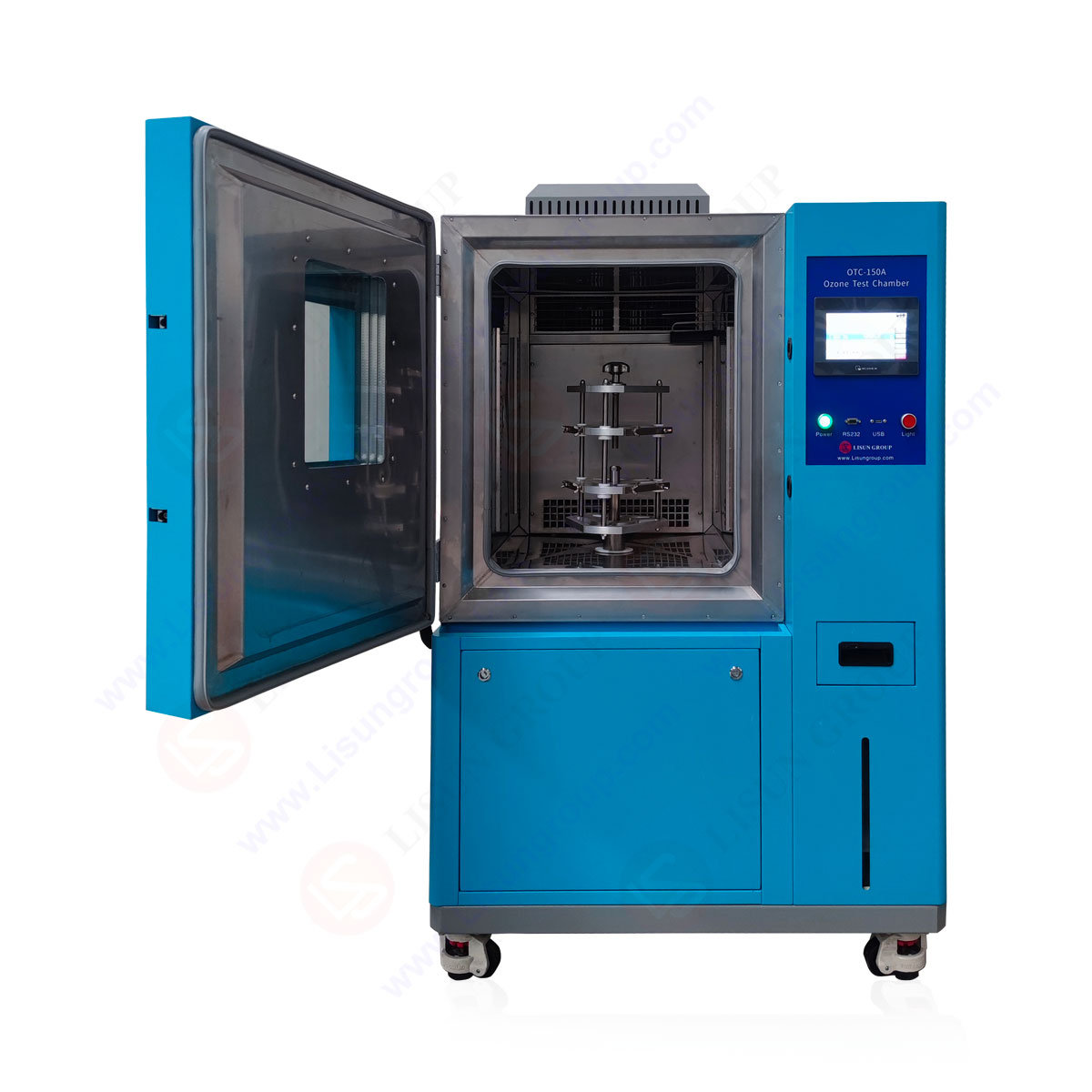

The OTC-150A Ozone test chamber simulates the oxidative effect of ozone on materials in the natural environment. It generates ozone with a controllable concentration using a silent discharge tube, and combines with a precise temperature and humidity control system to replicate the aging process of materials in an ozone environment. Equipped with static/dynamic stretching functions, it can simulate the stress-bearing state of materials. Meanwhile, it monitors parameters such as ozone concentration, temperature and humidity in real time to ensure stable test conditions.

Widely used in fields including rubber, textiles and cables, it is applied to verify properties like ozone cracking resistance of automotive rubber seals, ozone color fastness of outdoor textiles, and ozone aging resistance of cable sheaths. It provides scientific data for material R&D and quality inspection, helps enterprises control the weather resistance of products, and effectively ensures the stable performance and safe service life of products during long-term use.

Model List:

LISUN Model	Working Room Size (mm)	Working Power Supply
OTC-150A	500500600	Single Phase 220-240V, 50/60Hz, 5kVA
OTC-500A	700800900	Single Phase 220-240V, 50/60Hz, 6.5kVA

Specification:

Parameter Category	Specific Parameter Items	Specification Details
Ozone Concentration Control	Regulation Range	10~1,000pphm
Ozone Concentration Control	Fluctuation Degree	2~3pphm
Temperature Control	Regulation Range	0℃~60℃
	Fluctuation Degree	±1℃
	Uniformity	2℃
	Deviation	±2℃
Humidity Control	Regulation Range	20%~90% RH（based on 20℃~40℃）
	Deviation	±5%RH
	Uniformity	5%RH
	Fluctuation Degree	≤±3%RH
Specimen Testing Parameters	Specimen Holder Rotation Speed	8~25mm/s
	Fixture Elongation Rate	5~45%
	Stretching Frequency	0~30times /minute
	Maximum Stretching Length	0~90mm（adjustable）
	Stretching Test Mode	A: Static Stretching Mode; B: Dynamic Stretching Mode; C: Intermittent Dynamic Stretching Test Mode
Gas Circulation	Gas Flow Velocity	600±100mm/s（Forced Air Supply Circulation Mode）
Control System and Data Management	Controller	Self-Developed Ozone-Specific Control System (7-Inch Touchscreen)
	Data Export Format	EXCEL（Supports Multiple Data Processing Requirements）
	Data Export Methods	A: External USB Interface; B: RJ45 Network Port for Remote Computer Storage
Environment and Safety	Noise	≤75 decibel（Low-Noise Design）
	Equipment Operating Environment Temperature	0~30℃
	Equipment Operating Relative Humidity	≤85%RH
	Equipment Operating Atmospheric Pressure	Normal Pressure
