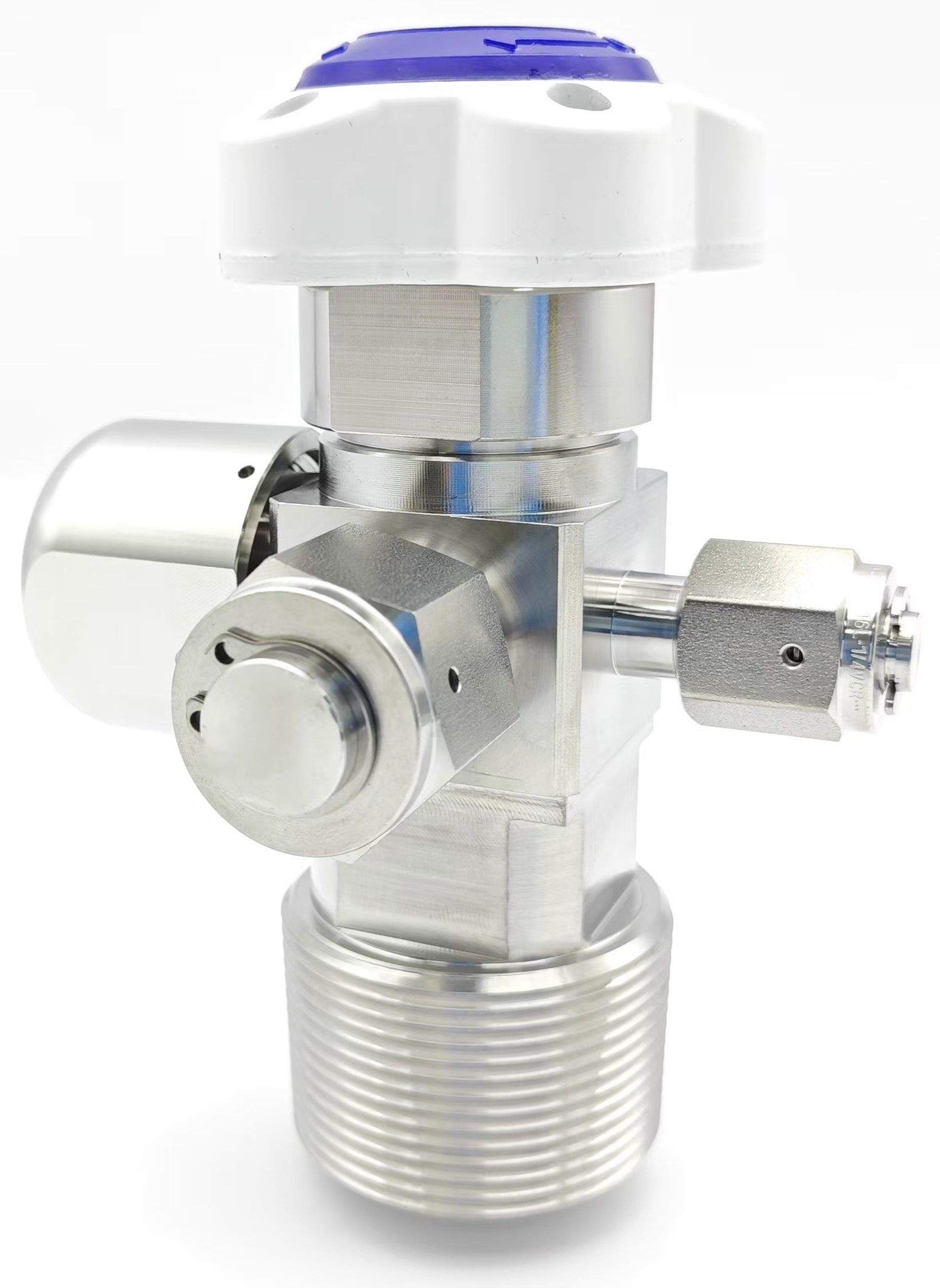

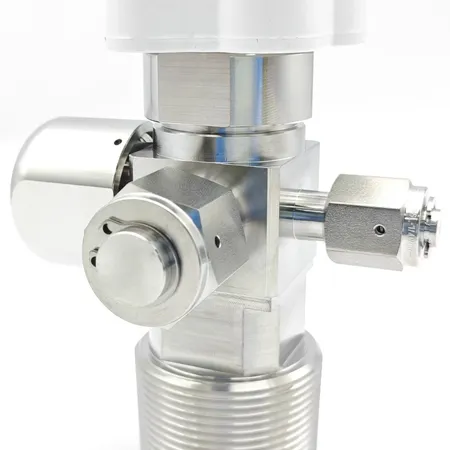

P150S series cylinder valve
生產所需時間:
10 日
運送方式:
AIR
是否可訂造:
可以
型號編號:
P150S
Applications:
The P150S series gas cylinder valve is suitable for high-pressure, high-purity, corrosive, and toxic gases.
描述
聯絡供應商
描述
The P150S series gas cylinder valve is suitable for high-pressure, high-purity, corrosive, and toxic gases. It adopts a direct connected diaphragm external seal to prevent the generation of small particles in the area where the gas flows through. It can achieve separate control of filling and discharging, and has the characteristics of low leakage rate and high flow rate.
PARAMETERS:
流量系数（Cv） Flow coefficient Cv | 0.35 |
公称压力 Max.working pressure | 15 MPa(2200psig) |
工作温度 Temperature range | -40℃～65℃ |
泄漏率 Leak rate | 内部internal：＜1×10-9Pa·m3/s 外部external：＜1×10-9Pa·m3/s |
连接方式 Connections | "NGT、1/2"VCR、1/4"VCR |
孔径 Seat diameter size | 3.5 mm |
制造标准 Manufacturing standards | GB/T15382-2021、CGA V-1-2023 |
MEDIUM WETTED MATERIALS:
阀 体 Body materials：AISI 316L/316L vim+var/哈氏合金 Hastelloy
膜 片 Diaphragm：哈氏合金 Hastelloy +镍基合金 Waspaloy
下主轴 Lower spindle：AISI 316L/316L vim+var/哈氏合金 Hastelloy /镍基合金 Waspaloy
阀 座 Seat disc：PCTFE/PVDF/PI
OPTIONS:
电化学抛光 Electrochemical polishing
洁净室装配（百级洁净室） Cleanroom assembly (Class 100 cleanroom)
