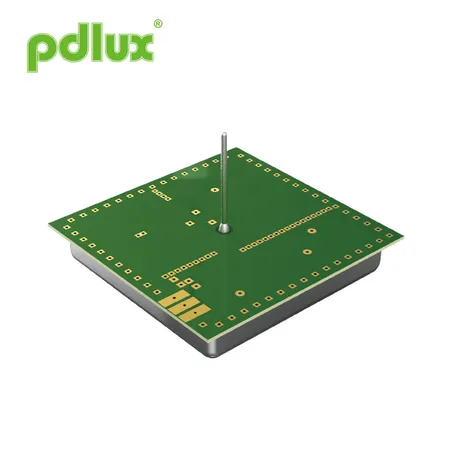

PDLUX PD-V1 5.8GHz Microwave Radar Sensor Switch Module Position Sensor for Automatic Lighting Switch
美元 $1.50 - 美元 $2.50
生產所需時間:
20 日
描述
聯絡供應商
描述
| Parameter | Notes | Min | Typ | Max | Units |
| Frequency Setting | 1 | 5.75 | 5.8 | 5.85 | GHz |
| Radiated Power (EIRP) | 1 | 0.10 | 0.12 | 0.15 | mW |
| Settling Time | 5 | 10 | mS | ||
| Received Signal Strength | 2 | 150 | 200 | 300 | μVp-p |
| Noise | 3 | 100 | 150 | 200 | mVrms |
| Supply Voltage | 4.75 | 5.00 | 5.25 | VDC | |
| Current Consumption | 18 | 20 | 25 | mA | |
| Pulse Repetition Frequency | 4 | 2.0 | 2.2 | 3.0 | KHz |
| Pulse Width | 4 | 15 | 50 | 70 | μSec |
| Operating Temperature | -15 | 22 | 75 | ℃ | |
| Weight | 6.0 | 6.5 | 7.0 | g |
