    POE Power Supply
    分享此頁面
    產品型號:
    KRE-1201003
    品牌名稱:
    KRECO
    顏色:
    Black
    港口:
    Zhongshan
    付款方式:
    30% T/T in advance and 70% before shipment
    最低訂購數量:
    2000 piece(s)
    輸入電壓:
    100-240VAC
    輸入頻率:
    50/60Hz
    是否有包裝:
    是否可訂造:
    輸出電壓:
    12VDC
    描述
    聯絡供應商
    描述

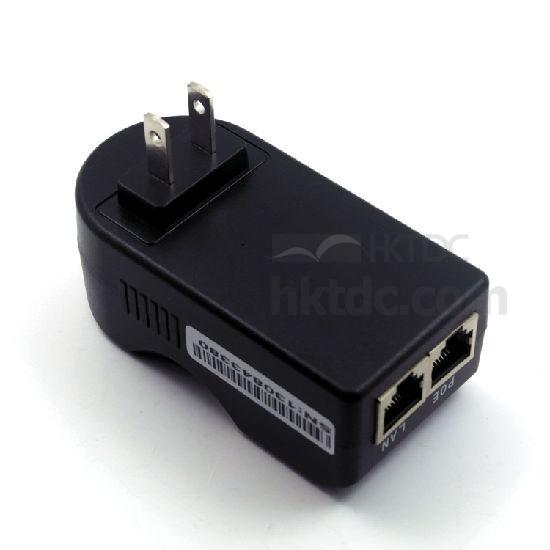

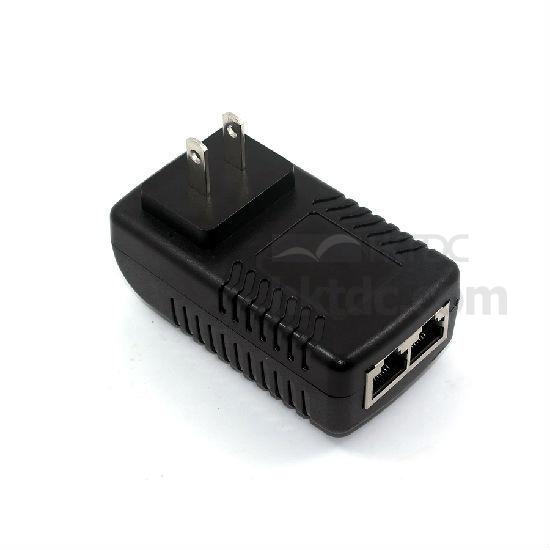

    12VDC 1A series External Wallmount POE adaptor, POE power supply, POE injector, Class II, LPS, Universal input, customized design.
    Key specification:
    • Power: 12W
    • Input: 100V-240V 50/60Hz
    • Output: 12V-1000mA
    • input current: 0-400mA
    • Efficiency: 80% maximum
    • Inrush current (240V AC): 25A, cold 25°C
    • No load input power (240V AC): 0.3W
    • Ripple/noise: 100mV
    • Output voltage precision: 5%
    • Regulation: ±1% line, ±5% load
    Reliability:
    • Withstanding voltage: 3kV 1minute 10mA max, between primary and secondary
    • MTBF: meet MIL-HDBK-217F over 50,000hrs, full load, 25°C
    • Leakage current: 0.25mA maximum at 264V AC
    • Burn-in: 100% full load, 40°C, 4hrs minimum
    Features:
    • Data Rate:10/100/1000Mbps
    • 2Pole America Plug
    • Wide Input Voltage 90 to 264VAC,50 to 60Hz
    • LED indication
    • High reliability
    • Light and convenient plug-in
    • High efficiency: consumption, meet US Energy start/CEC/AS/MEPS/EUP/ERP
    • 2 Year warranty
    • Class II
    • ROHS Compliant
    • 802.3af or 802.3at standard
    Protection:
    • Over-current protection
    • Over-voltage protection
    • Thermal shutdown capability
    • Short-circuit protection
