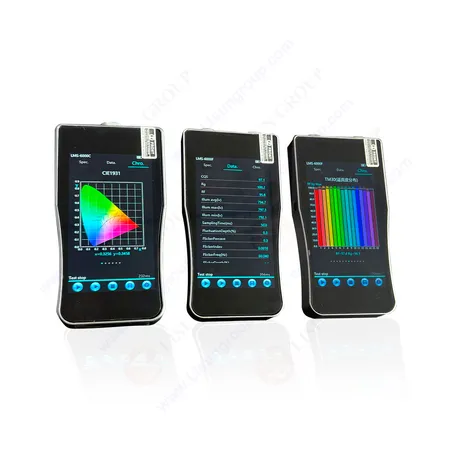

Portable CCD Spectroradiometer
美元 $499.00 - 美元 $999.00
生產所需時間:
3 日
運送方式:
By express
應用:
Lighting test instrument
品牌:
LISUN
型號編號:
LMS-6000
電源類型:
交流电
重量:
3KGS
描述
聯絡供應商
描述
The Portable CCD LED Colorimeter Spectroradiometer has the following versions which can measure different parameters:
| LISUN Model | Function | Wave Range |
| LMS-6000 | illuminance, E(Fc), Ee(W/m2), Tc (K), Duv Correlated Color Temperature (CCT), Chromaticity Coordinates, CRI, TM-30 (Rf, Rg), Purity, Peak Wavelength, Dominant Wavelength, Half Bandwidth, Center Wavelength, Centroid Wavelength, Total Color Difference, Brightness Difference, Red-Green Degree, Yellow-Blue Degree, CCT Difference, SDCM Diagram, Spectrum Diagram. Please click here to see the LMS-6000 Test Report. | 380-780nm |
| LMS-6000C | LMS-6000 parameter without PC software and TM-30 (Rf, Rg) | 380-780nm |
| LMS-6000UV | UV-A, UV-B, UV-C and UV total Radiant Irradiance (0.1-500,000μW/cm² ±0.01μW/cm²), UV hazard irradiance, UV spectrum, Dominant Wavelength, Peak signal, Start wavelength, End wavelength. Please click here to see the LMS-6000UV Test Report. | 200-400nm |
| LMS-6000F | LMS-6000 Parameters+Flicker test. Please click here to see the LMS-6000F Test Report. | 380-780nm |
| LMS-6000L | Brightness (0.1-500,000cd/m²±0.1cd/m²), fL, Tc (K), Duv Correlated Color Temperature (CCT), Chromaticity Coordinates, CRI, TM-30 (Rf, Rg), Purity, Peak Wavelength, Dominant Wavelength, Half Bandwidth, Center Wavelength, Centroid Wavelength, Total Color Difference, Brightness Difference, Red-Green Degree, Yellow-Blue Degree, CCT Difference, SDCM Diagram, Spectrum Diagram. Pls. click here to see the LMS-6000L Test Report. | 380-780nm |
| LMS-6000B | LMS-6000 Parameters+Blue Light Hazard Weighted Irradiance according to GB/T20145, CIE S009/E:2002 | 350-800nm |
| LMS-6000BF | LMS-6000B Parameters+Flicker test. Pls. click here to see the LMS-6000BF Test Report. | 350-800nm |
| LMS-6000P | LMS-6000 Parameters+PAR, PPFD (0.1-500,000umol/m².s ±0.01umol/m².s) , YPFD, Blue-purple irradiance Eb, Yellow-green irradiance Ey, Red-orange irradiance Er, Ratio of red and blue radiation Erb_Ratio. Please click here to see the LMS-6000P Test Report. | 350-850nm |
| LMS-6000S | LMS-6000P Parameters+Blue Light Hazard Weighted Irradiance according to GB/T20145, CIE S009/E:2002 | 350-950nm |
| LMS-6000SF | Full functions: LMS-6000S parameters+Flicker Test. Pls. click here to see the LMS-6000SF Test Report. | 350-950nm |
| LMS-6000TLCI | LMS-6000 Parameters+TLCI test | 380-780nm |
| LMS-6000I | Input and Output Control via RS485 | 380-780nm |
Standard:
CIE 177 “Color Rendering of White LED Light Sources”
CIE-13.3 “Method of Measuring and Specifying Colour Rendering Properties of Light Sources”
Optical-Engineering-49-3-033602 ” Color quality Scale”
IEEE.”Recommended Practices for Modulating Current in High-Brightness LEDs for Mitigating Health Risks to Viewers”
The Chroma Meter Specifications:
• Spectral resolution: ±0.2nm, Reproducibility: ±0.5nm
• Accuracy of chromaticity coordinate (Δx, Δy): ±0.005
• Correlated color temperature CCT: 1, 500K ~ 100, 000K (±0.6%)
• Illuminance range: 0.1~500,000lx (±0.1lx)
