Applicable materials:All kinds of metals special for aluminium alloy,metal-coated materials,
electroplates, industrial plastic(PVC/PC/PU),rubbers etc.

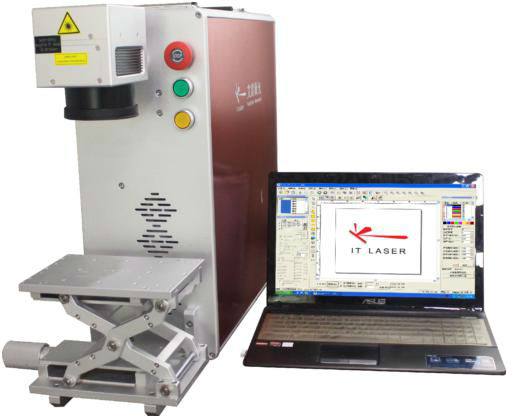

Technical Data
Wavelength 1064nm
Average Laser Power 10W
Max. Laser Power ≥50KW
Laser Repetition Frequency 1~50KHz
Marking Size 50mm×50mm/100mm×100mm
Marking Depth ≤1.2mm
Max. Marking Speed 7000mm/s
Min. Marking Width 0.025mm
Min. Character 0.2mm
Power Consumption ≥0.5KW
Power Supply AC220V±10% 50Hz
Size 750X550X210mm
Production Capacity 400~500 PCS/Hour
