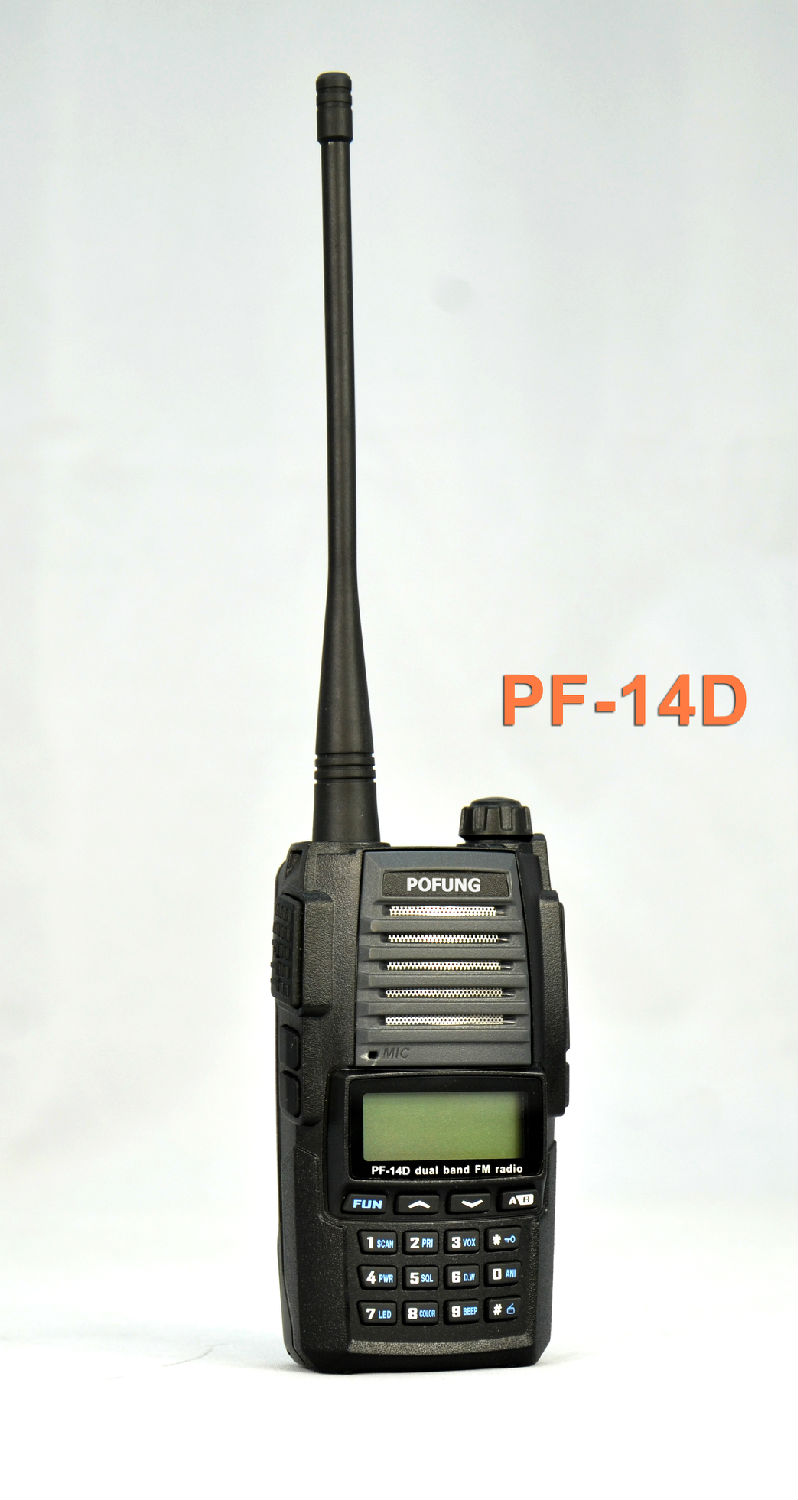

Portable Transceiver
生產所需時間:
30 日
產品型號:
PF-14D
顏色:
Black
尺寸:
255 (H) x 60 (W) x 38 (D) mm
付款方式:
TT
儲存頻道:
128
對講距離:
2~15km
描述
聯絡供應商
描述
- FM radio, wide frequency display
- U-V 、U-U、 V-V modes
- DTMF/ANI
- 12.5KHz/25KHz selectable
- Humanized menu
- Standard & nonstandard CTCSS available
- Selected call, single call, group call; remote kill, stun, activate & revive
- High/Low Power Switchable
- Monitor, VOX
- Auto Battery Save
- Low Battery Alert
- Busy Channel Lockout
- CTCSS-50/CDCSS-105
- TOT (Time-out timer)
- Ending Sound Silence
- Squelch level 0-9 adjustable
- Priority Channel Scan
- Different Frequency Function
- PC Programmable
General :
- Frequency Range : 136-174MHz / 400-470MHz / 450-520MHz
- Channel No. : 128
- Channel Spacing : 12.5/25KHz
- Voltage : 7.5V
- Battery Capacity : 1250mAh(Li-Ion)
- Frequency Stabilization : ±2.5ppm
- Operating Temperature Range : -20°C~+55°C
- Antenna Impedance : 50Ω
- Dimensions : 255(H) × 60(W) × 38(D) mm
- Gross Weight (including antenna, battery) : 240g
- Distances : 2～15km
- RF Power Output : 5W
- Modulation Type : F3E
- Spurious and Harmonic : ≤ -60dB
- Residual Radiation : ≤ -40dB
- Modulation Distortion : ≤5%
- Maximum Frequency Deviation : ±5KHz
- Sensitivity : ≤0.2µV
- Modulation Band : ±5KHz
- Adjacent Channel Selectivity : ≥60dB
- Inter-modulation Anti-interference : ≥60dB
- Spurious Response Rejection : ≥60dB
- Rated Audio Output Power : ≥500mW
- Rated Audio Distortion : ≤5%
