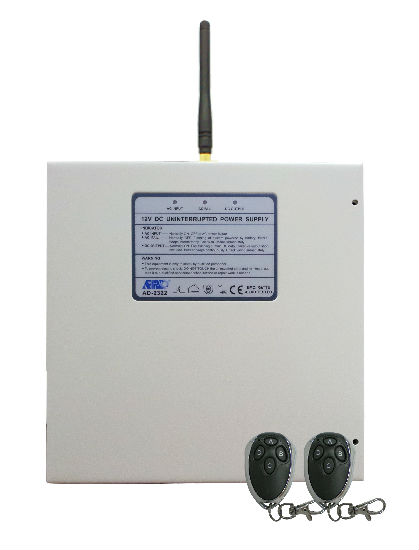

AD-2322 is full feature multi-purpose power supplies designed for powering electric lock and keypads in access control systems. They are also ideal power packs for alarm and surveillance systems that required back-up power.

AD-2322 is built-in with split-decoder that is compatible with all the DK-2800 series keypads for split-decoded operation to up-grade the keypads’ security level in preventing sabotage. The AD-2322 also offers RF remote control operation.

Feature:

• AD-2322 – Full Feature Dual Output Power Supply with RF Remote  Control  Facility
• Receiver : 433Mhz, Super-heterodyne (AD-2322 only)
• Built-in Split-decoder Compatible with DK-2800 Keypads
• Input Voltage : 220-240VAC 50Hz
• Output Power : 13.7VDC/0.5A Regulated – For Keypads, 12VDC/3A Un-regulated – For Electric Lock
• Back-up Battery ; 12V/7.0Ah (not include), Built-in Charger
• Approvals : CE-EMC, CE-LVD & CE-R&TTE Compliance
• Solid State Output for Fail-safe or Fail-secure Electric Lock
• Operation Modes : Stand-alone or Split-decoded
• Built-in Door Chime
• Dimensions : 272(H) X 165(W) X 80(D) mm
• Weight : 3.2Kgs
